I16V

Fanvil


Fanvil i16V SIP Video Intercom HD audio HD video IP65/IK10 designed for outdoor scenes


Model#: I16V

Sku: IT3817



MSRP: $349.00

In Stock

Your Price: $349.00






MODEL: I16V

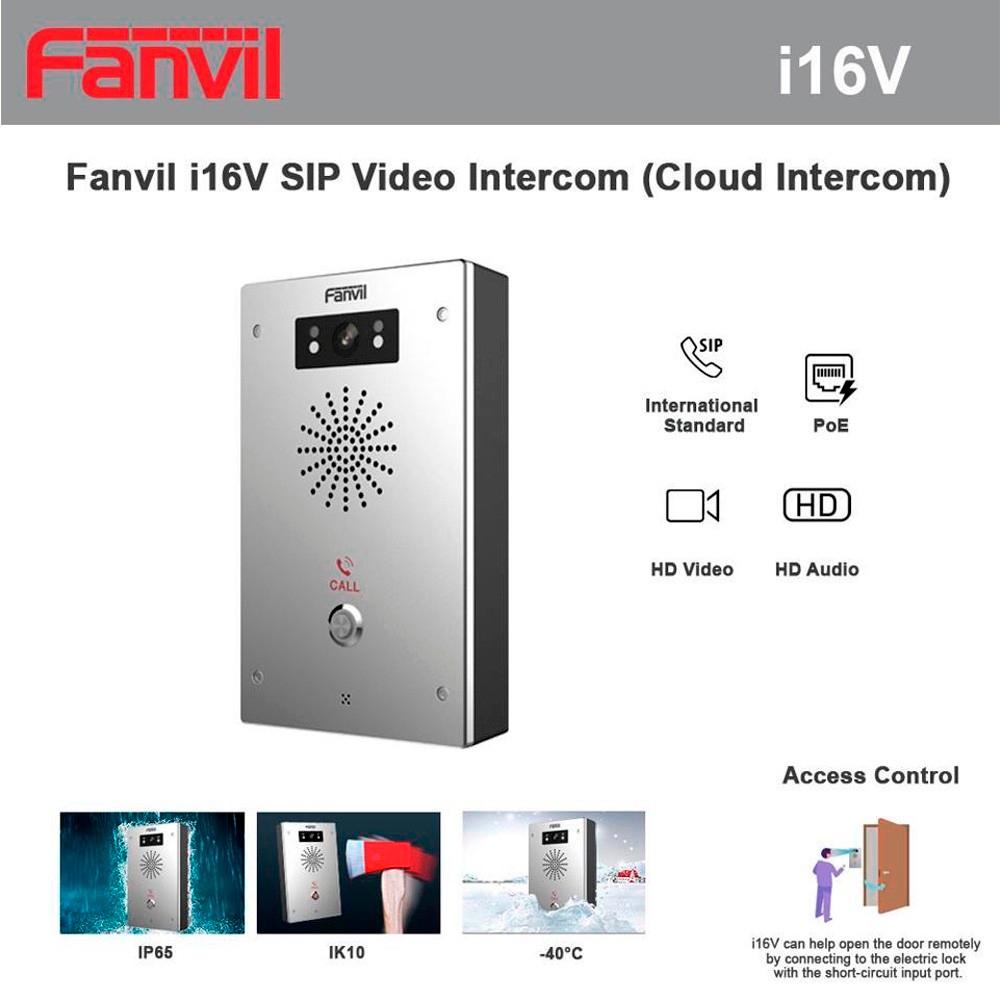

The i16V SIP Video Intercom is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users.

HD Audio

  • Built-in 3W speaker with high HD audio quality and nice background noise reduction.

HD Video

  • Press the "Call" button to make a call with full duplex video. Provide you the infrared night vision with built-in 720P HD camera

24H Video Surveillance

  • Connected with VMS video management system via ONVIF, the i16V could be used for 24H video monitoring.

Multi-Protection Design

  • With the design of the waterproof and dustproof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40? to 70?, i16V can satisfy the special demands in various industries.

Alarm Linkage

  • i16V can trigger the record of camera video or the alarm indicator with the short output port.

Access Control

  • i16V can help open the door remotely by connecting to the electric lock with the short-circuit input port.

Record Output

  • i16V can connect to the audio input port of the camera or digital record device with an record output port to provide 24h Monitor.

External Active Speaker

  • i16V can connect to speaker by the audio output port to play voice message or music.

Easy to Be Configured and Managed

  • Easy to be managed with web online configuration; Batch deployment through Fanvil Device Management System



General

  • 2 SIP lines
  • Full-duplex handsfree(HF)
  • Intelligent DSS Keys (Speed Dial/intercom etc)
  • Auto answer

Intercom function

  • Industrial Standard Certifications: IP65/IK10, CE/FCC
  • Intercom function
  • Dynamic multicast function
  • Support ONVIF
  • Support customized DSS Keys
  • Network Time Synchronization
  • Action URL / Active URI

Video

  • Sensor: 1/2.7” color CMOS2 Megapixels
  • Video codec: H.264
  • Resolution: main stream 1280×720@25fps
  • Substream 704×576(D1)@25fps
  • Viewing angle: 112° (H), 84° (V)
  • Minimum illumination: 0.1Lux, support for infrared illumination

Audio

  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband Codec: G.722
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background
  • Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Deployment and maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Import and Export
  • Firmware Upgrade
  • Syslog

Networking

  • 10/100Mbps
  • IP Configuration: Static / DHCP / PPPoE
  • Network access authority authentication: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • QoS

Protocols

  • 10/Protocols
  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specification

  • 1 DSS button (speed dial button)
  • 1 RJ45 port
  • 1 audio output interface
  • 1 recording output interface
  • 2 short circuit input interface
  • 2 short circuit output interface
  • G-sensor for tamper alarm
  • Power: DC12V/1A or PoE
  • Housing material: aluminum alloy shell
  • Protection level:IP65 and IK10
  • Installation: Wall-mounting
  • Working temperature: -40 ~ 70°C
  • Storage temperature: -40 ~ 70°C
  • Relative humidity: 10% - 90%
  • Equipment size: 195x120x34mm
  • Packing size: 260x165x62mm
  • Equipment weight: 1015g
