Fanvil i52W SIP Indoor Station 4 SIP Lines 2.4G Wi-Fi
Product Highlights
Model#: I52W
Sku: IT3819
MSRP: $99.95
In Stock
Your Price: $99.95
Model: i52W
Fanvil i52W SIP Indoor Station 4 SIP Lines 2.4G Wi-Fi

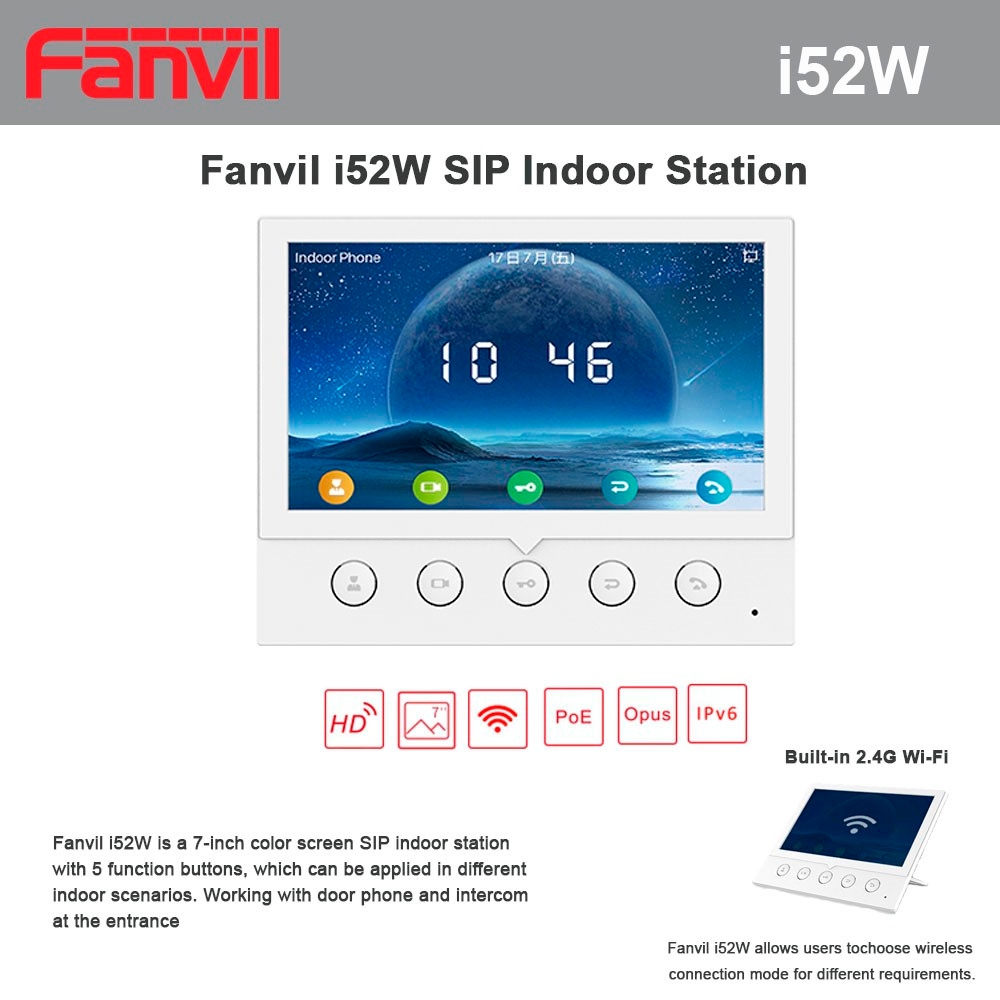

Fanvil i52W is a 7-inch color screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i52W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.
- Elegant Design with 7-inch Color Screen
Fanvil i52W delivers a user-friendly experience with anelegant design and a clear 7-inch color screen.
- HD Audio and Video Communication
Users can communicate with visitors with superb audio and clear video images via Fanvil i52W.
Audio
- Support AEC
- VAD, CNG, BNE
Video
- Video Codec: H.264
- Video Call Resolution: CIF/4CIF/QVGA/VGA/720p/1080p
- 5 Easy-to-access Physical Buttons
Users can easily achieve different functionswith one press on Fanvil i52W.
- Built-in 2.4G Wi-Fi
Fanvil i52W supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements.
- Rich Interfaces
Fanvil i52W is flexible and powerful with rich interfaces to connect more security devices.
Highlight Features:
- 7-inch color screen
- 5 physical function keys
- Built-in 1.5W speaker with AEC
- Support visual intercom and remote access control
- Real-time monitor of the door phone and cameras
- Built-in 2.4G Wi-Fi
- 8 alarm input interfaces
- 1 pair of RS-485 interfaces
- Wall-mounted and desktop installation methods (with the external desk stand)
- Compatible with major platforms: 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc.
Generic
- 4 SIP Lines
- HD Voice
- PoE
- External Power Supply (Optional)
Display

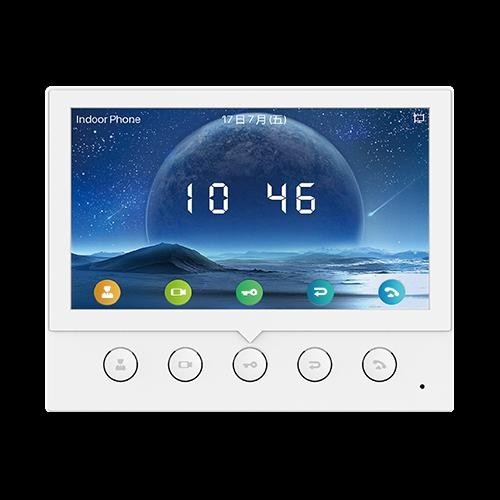

- 1 x LCD: 7-inch 800x480 Color Screen
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband codec: G.711A/U, G.729AB, iLBC
- Wideband codec: G.722, Opus
- Full-duplex hands-free speakerphone with AEC
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
- VQM voice quality monitoring
Video
- Hardware video decoding: H.264
- Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
Deployment & Management
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web management portal
- Web-based packet dump
- Configuration export / import
- Firmware upgrade
- Syslog
Physical Specifications
- 5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
- 10 Pin Cable x1
- 4 Pin Cable x1
- 2 Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 Interface x1
- RS485 Interface x1
- Alarm Input Interface x8
- DC Power Input: 12V/1A
- Power Consumption (PoE): 2.11~6.98W
- Power Consumption (Adapter): 1.72~5.96W
- Working Temperature: 0~45?
- Working Humidity: 10~90%
- Color: White
- Device Dimensions: 176x140x26 mm
- Gift Box Dimensions: 193x152x39 mm
- Outer CTN Dimensions: (20 PCS) 413x220x322 m
Network
- 10/100 Mbps Ethernet
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
- Wi-Fi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
