I53W

Fanvil

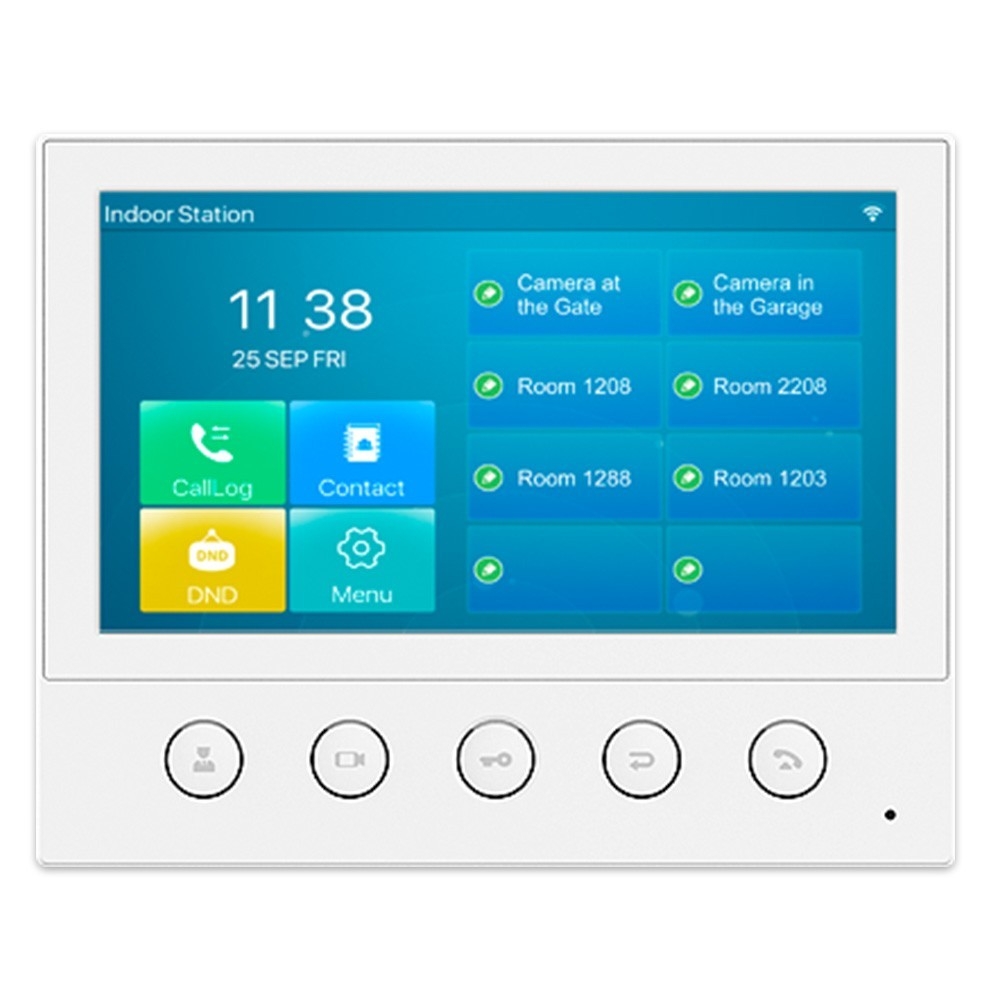

Fanvil i53W SIP Indoor Station 6 SIP Lines 2.4G Wi-Fi with 7-inch color touch screen



Product Highlights
  • Fanvil i53W SIP Indoor Station 6 SIP Lines 2.4G Wi-Fi with 7-inch color touch screen
  • Fanvil i53W is a 7-inch color touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i53W can be easily achieved remote access control.
  • Fanvil i53W delivers a user-friendly experience with an elegant design and a clear 7-inch color touch screen.
  • With a clear touch screen, Fanvil i53W offers a direct access to all key functions at your fingertips,providing a smoother operation experience for the users.
  • Users can communicate with visitors with superb audioand clear video images via Fanvil i53W.
  • Model#: I53W

    Sku: IT3820



    MSRP: $119.00

    In Stock

    Your Price: $119.00






    Model: i53W

    Fanvil i53W SIP Indoor Station 6 SIP Lines 2.4G Wi-Fi with 7-inch color touch screen

    Fanvil i53W is a 7-inch color touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i53W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.

    • Elegant Design with 7-inch Color Touch Screen

    Fanvil i53W delivers a user-friendly experience with an elegant design and a clear 7-inch color touch screen.

    • Easier Operation

    With a clear touch screen, Fanvil i53W offers a direct access to all key functions at your fingertips,providing a smoother operation experience for the users.

    • HD Audio and Video Communication

    Users can communicate with visitors with superb audioand clear video images via Fanvil i53W.

    • 5 Easy-to-access Physical Buttons

    Users can easily achieve different functions with one press on Fanvil i53W.

    • Built-in 2.4G Wi-Fi

    Fanvil i53W supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements.

    • Rich Interfaces

    Fanvil i53W is flexible and powerful with rich interfaces to connect more security devices.

    Highlight Features

    • 7-inch color touch screen
    • 5 physical function keys
    • Built-in 1.5W speaker with AEC
    • Support visual intercom and remote access control
    • Real-time monitor of the door phone and cameras
    • Built-in 2.4G Wi-Fi
    • 8 alarm input interfaces
    • 1 pair of RS-485 interfaces
    • Wall-mounted and desktop installation methods (with the external desk stand)
    • Compatible with major platforms: 3CX, Avaya, Asterisk,BroadSoft, Metaswitch, Elastix and etc.

    Generic

    • 6 SIP Lines
    • HD Voice
    • PoE
    • External Power Supply (Optional)

    Display

    • 1 x LCD: 7-inch 800x480 Color Screen

    Audio

    • Wideband ADC/DAC 16KHz sampling
    • Narrowband codec: G.711A/U, G.729AB, iLBC
    • Wideband codec: G.722, Opus
    • Full-duplex hands-free speakerphone with AEC
    • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
    • Packet Loss Concealment (PLC)
    • Dynamic Adaptive Jitter Buffer
    • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
    • VQM voice quality monitoring

    Video

    • Hardware video decoding: H.264
    • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
    • Deployment & Management
    • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
    • Web management portal
    • Web-based packet dump
    • Configuration export / import
    • Firmware upgrade
    • Syslog

    Physical Specifications
    5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
    10 Pin Cable x1
    4 Pin Cable x1
    2 Pin Cable x1
    Wall-mount Bracket x1
    Screws Kit x1
    RJ45 Interface x1
    RS485 Interface x1
    Alarm Input Interface x8
    DC Power Input: 12V/1A
    Power Consumption (PoE): 2.11~6.98W
    Power Consumption (Adapter): 1.72~5.96W
    Working Temperature: 0~45?
    Working Humidity: 10~90%
    Color: White
    Device Dimensions: 176x140x26 mm
    Gift Box Dimensions: 193x152x39 mm
    Outer CTN Dimensions: (20 PCS) 413x220x322 m

    Network
    10/100 Mbps Ethernet
    IP Mode:IPv4/IPv6/IPv4&IPv6
    IP Configuration: Static / DHCP / PPPoE
    VPN: L2TP / OpenVPN
    QoS
    RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
    Wi-Fi

    Protocols
    SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
    RTP/RTCP/SRTP
    STUN
    DHCP
    IPv6
    PPPoE
    L2TP
    OpenVPN
    SNTP
    FTP/TFTP
    HTTP/HTTPS
    TR-069
