TL-SG2008

TP-Link

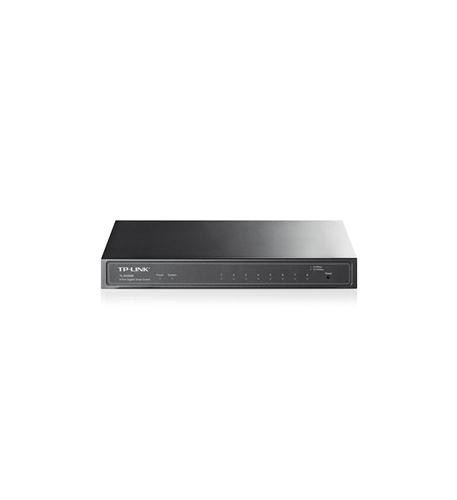

TP Link TL-SG2008 8-port Pure-Gigabit Desktop Smart Switch


Product Highlights
  • Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

    • Model#: TL-SG2008

    Sku: IT3937

    Out of stock

    Your Price: N/A


    SKU: TL-SG2008

    JetStream 8-Port Gigabit Smart Switch

    Centralized Cloud Management

    Omada SDN Platform Integration

    Advanced L2+ Features

    Static Routing, ACL, IGMP Snooping and More

    Abundant Security Strategies

    LAN Area Investment Protection

    Silent Operation

    Fanless Design Ideal for Noise-Sensitive Environments

    Software Defined Networking (SDN) with Cloud Access

    Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

    SPECIFICATIONS

    Specifications TL-SG2008_V3

    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
    Interface 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply 12 VDC/1 A External Adapter or Obtain Power from PoE Source
    Power Consumption 6.4 W
    Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in. (209 × 126 × 26 mm)
    PERFORMANCE
    Bandwidth/Backplane 16 Gbps
    Packet Forwarding Rate 11.9 Mpps
    MAC Address Table 8K
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
    VLAN • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN
    Access Control List • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
    Security • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
    Management • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
    OTHERS
    Certification CE, FCC, RoHS
    Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

    Datasheet

    PDF File TP Link TL-SG2008 8-port Pure-Gigabit Desktop Smart Switch
