Ubiquiti Networks U6-ENTERPRISE-US UniFi AP 6 Enterprise US
Product Highlights
Model#: U6-Enterprise-US
Sku: IT3943
MSRP: $333.25
In Stock
Your Price: $333.25
SKU: U6-Enterprise-US

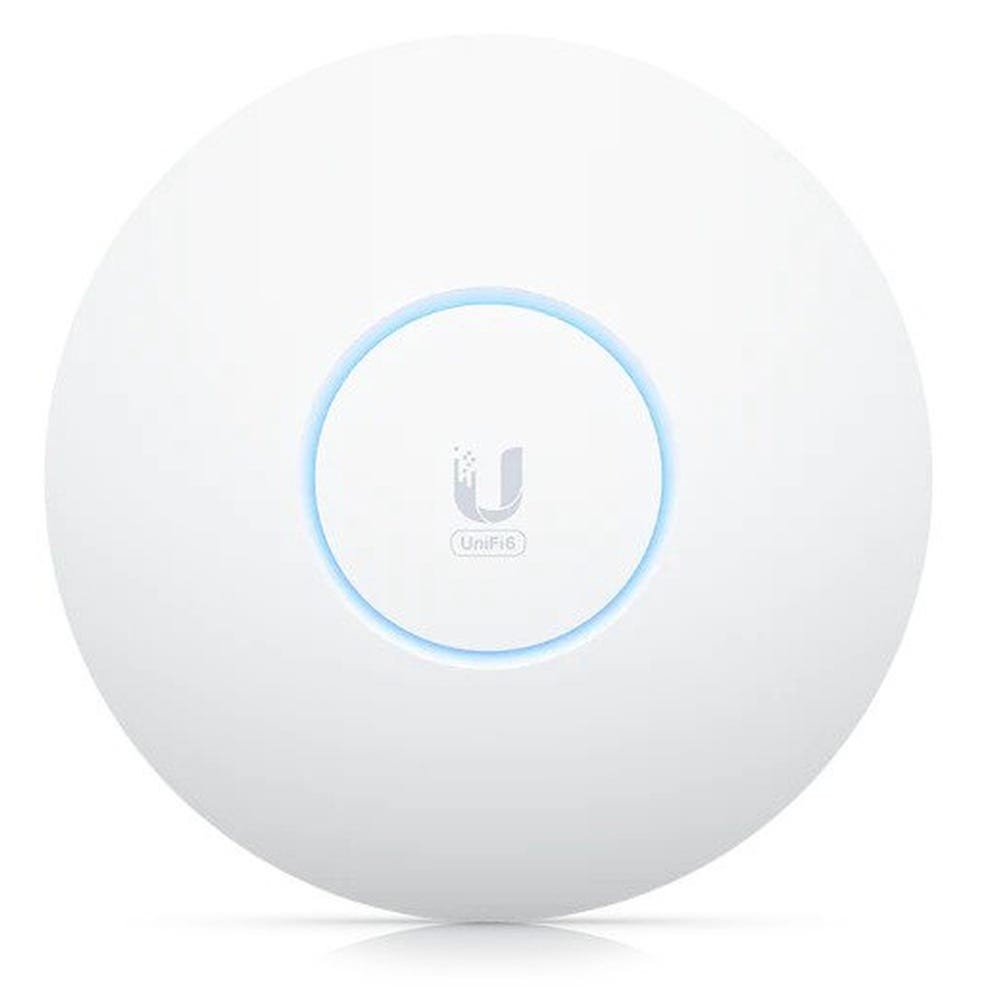

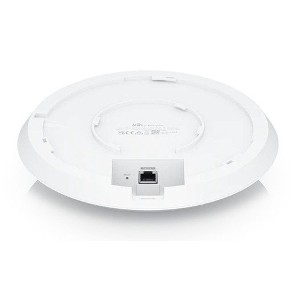

Access Point U6 Enterprise
Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.
Features:
- WiFi 6 support (2.4/5/6 GHz bands)
- 10.2 Gbps aggregate throughput rate
- (1) 2.5GbE RJ45 port (PoE In)
- Powered with PoE+
- Use with our USW Enterprise switches for maximum throughput
Adopt the U6-Enterprise in Minutes with Your UniFi Network Application and:
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Specifications
| Dimensions | Ø220 x 48.1 mm (Ø8.66 x 1.89") |
| Weight | Without mount: 960 g (2.1 lb) |
| With mount | 1090 g (2.4 lb) |
| Enclosure materials | Top housing: plastic |
| Bottom housing | Aluminum |
| Mount material | SGCC steel |
| Hardware | |
| Management interface | Ethernet |
| Bluetooth | |
| Networking interface | (1) 2.5GbE RJ45 port |
| Button | Reboot and factory-reset |
| LED | W/B |
| Power method | PoE+ |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (optional) |
| Supported voltage range | 44 - 57VDC |
| Max. power consumption | 22W |
| Max. TX power 2.4 GHz 5-7 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
573.5 Mbps 4.8 Gbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
3.2 dBi 5.3 dBi 6 dBi |
| Mounting | Wall/ceiling (included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 600+ |
| Zero wait DFS | Yes |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Datasheet
