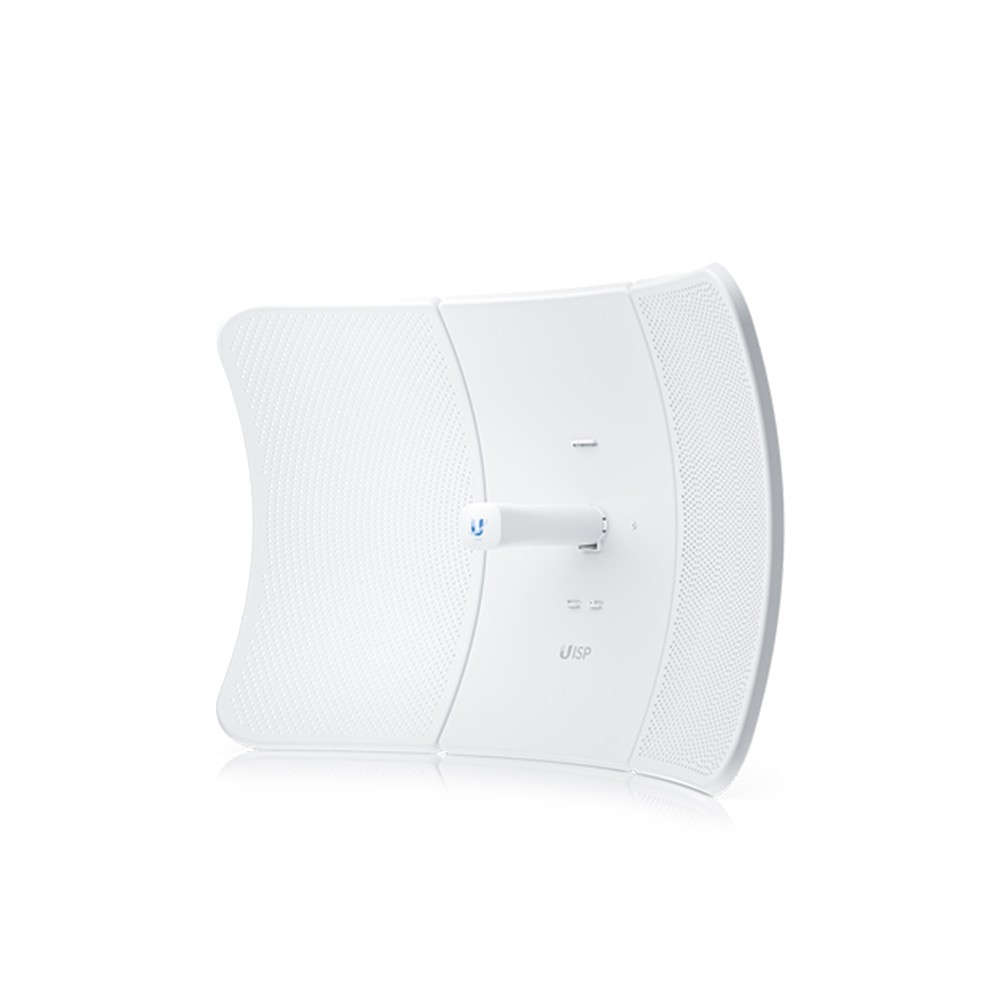

Ubiquiti Networks LTU-XR-US 5GHz LTU XR CPE US VERSION
Product Highlights
Model#: LTU-XR-US
Sku: IT3946
MSRP: $149.99
In Stock
Your Price: $149.99
MODEL: LTU-XR-US
29dBi 5GHz LTU XR CPE PtMP Wireless Antenna
5 GHz LTU® client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.
The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP® Mobile app.
Features:
- Proprietary Ubiquiti LTU core processor
- Long-range, 29 dBi antenna with InnerFeed® technology
- High data and performance rate (1024 QAM)
- Link range up to 35 km
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Central configuration management from the AP side
- Frequency splitting
- Router mode support
- Integrated GPS
- Link planning support via ISP Design Center
- Quick, Bluetooth-powered setup with the UISP Mobile app
Specifications LTU-XR-US
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |
| Mount | Integrated pole mount (included) |
| Pole compatibility | Ø35-60 mm (Ø1.38-2.36") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interfaces | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | Power/ethernet |
| RF connections | Internal |
| Max. power consumption | 8.5W |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22 to 26VDC |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum throughput | 550 Mbps |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| Software | |
| OS | airOS® |
| Modes | PtMP CPE only |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Router mode |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz * Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
