TL-SF1048

TP-Link

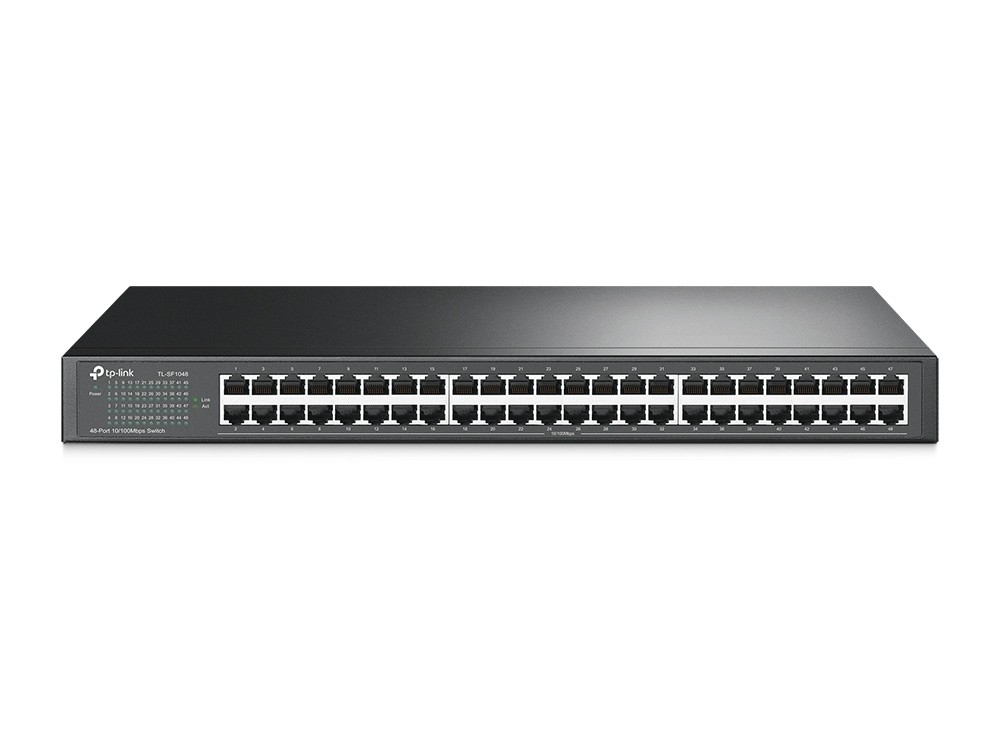

TP-LINK TL-SF1048 48-Port 10/100Mbps Rackmount Switch



Product Highlights
  • 48 10/100Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 50%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case
  • Model#: TL-SF1048

    Sku: IT4052



    MSRP: $199.99


    Out of stock

    Your Price: $199.99


    SKU: TL-SF1048

    What This Product Does

    The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

    TP-LINK Green Technology

    This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

    High Performance

    Featuring non-blocking switching architecture,TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.

    Easy to Use

    The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

    SPECIFICATIONS

    Specifications TL-SF1048

    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    Interface 48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 9.9W (220V/50Hz)
    Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
    Switching Capacity 9.6Gbps
    Packet Forwarding Rate 7.14Mpps
    MAC Address Table 8K
    Green Technology Innovative energy-efficient technology saves power up to 50%
    Transfer Method Store-and-Forward
    Certification FCC, CE, RoHS
    System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

    Datasheet

    PDF File TP-LINK TL-SF1048 48-Port 10/100Mbps Rackmount Switch
