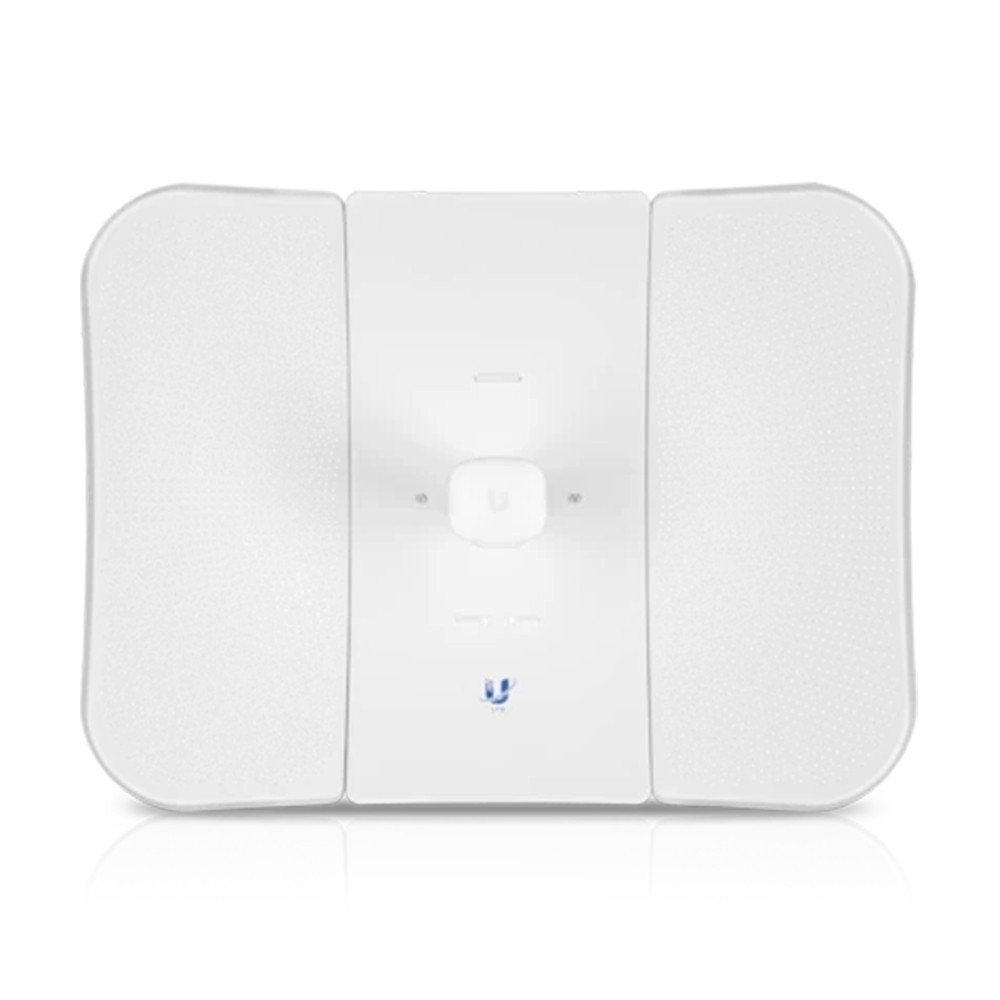

Model: LTU-LR

5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

• LTU Technology

Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2 .

• CPE Modes

The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

• Innovative Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.



Features:

• PtMP CPE
• 1024 QAM
• 10/20/30/40/50 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router mode support
• Range up to 30km

Functions in a PtMP environment with the LTU-Rocket as the basestation
