LTU-Lite-US

Ubiquiti

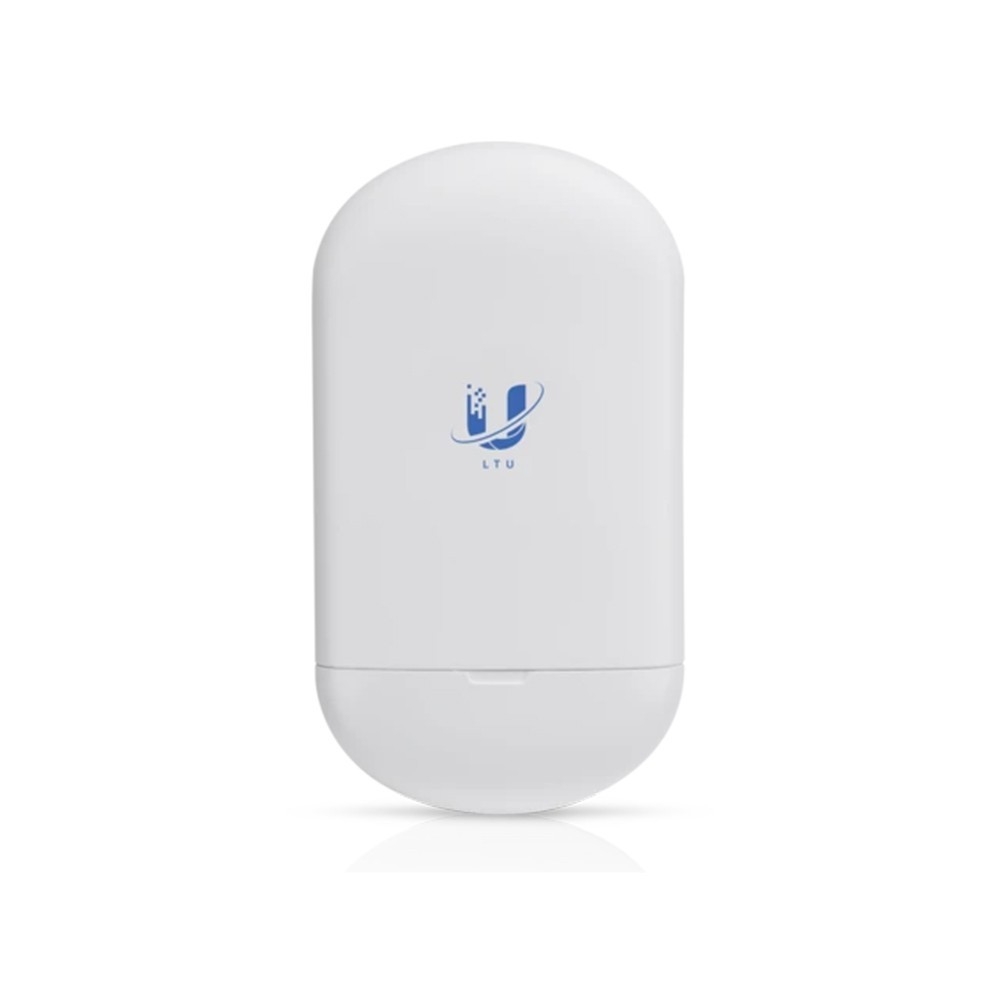

Ubiquiti LTU-Lite-US 5 GHz LTU-LITE (US Version)



Product Highlights
  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Model#: LTU-Lite-US

    Sku: IT4067

    Out of stock

    Your Price: N/A


    SKU: LTU-Lite-US

    Ubiquiti 5 GHz LTU-LITE (US Version)

    Incorporating Ubiquiti’s proprietary LTU technology, the LTU Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.



    Features:

    • PTMP CPE
    • 1024 QAM
    • 10/20/30/40/50 MHz channel bandwidth
    • Central configuration management from AP side
    • Frequency split
    • Auto power adjustments
    • Router mode support
    • Functions in a PtMP environment with the LTU-Rocket as the basestation

    Specifications LTU-LITE-US

    Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
    Weight 250 g (8.82 oz)
    Networking Interface (1) 10/100/1000 Ethernet Port
    Enclosure Outdoor UV Stabilized Plastic
    Max. Power Consumption 8.5W
    Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
    Voltage Range 22 - 26V
    Max. Conducted TX Power 22 dBm per Chain
    Gain 13 dBi
    Cross-pol Isolation 20 dB Minimum
    Max. VSWR 1.8:1
    Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
    Polarization Dual Linear
    Mounting Pole-Mount Wall Mount (Kit Included)
    Wind Loading 20 N @ 200 km/h (4.5 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    ESD/EMP Protection ± 24kV Contact/Air
    Operating Temperature -40 to 60° C (-40 to 140° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC
    OPERATING FREQUENCY (MHZ)
    Worldwide 2400 - 2483.5* 4800 - 6200*
    US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850
    EU 2400 - 2483.5 5150 - 5875

    Datasheet

    PDF File Ubiquiti LTU-Lite-US 5 GHz LTU-LITE (US Version)
