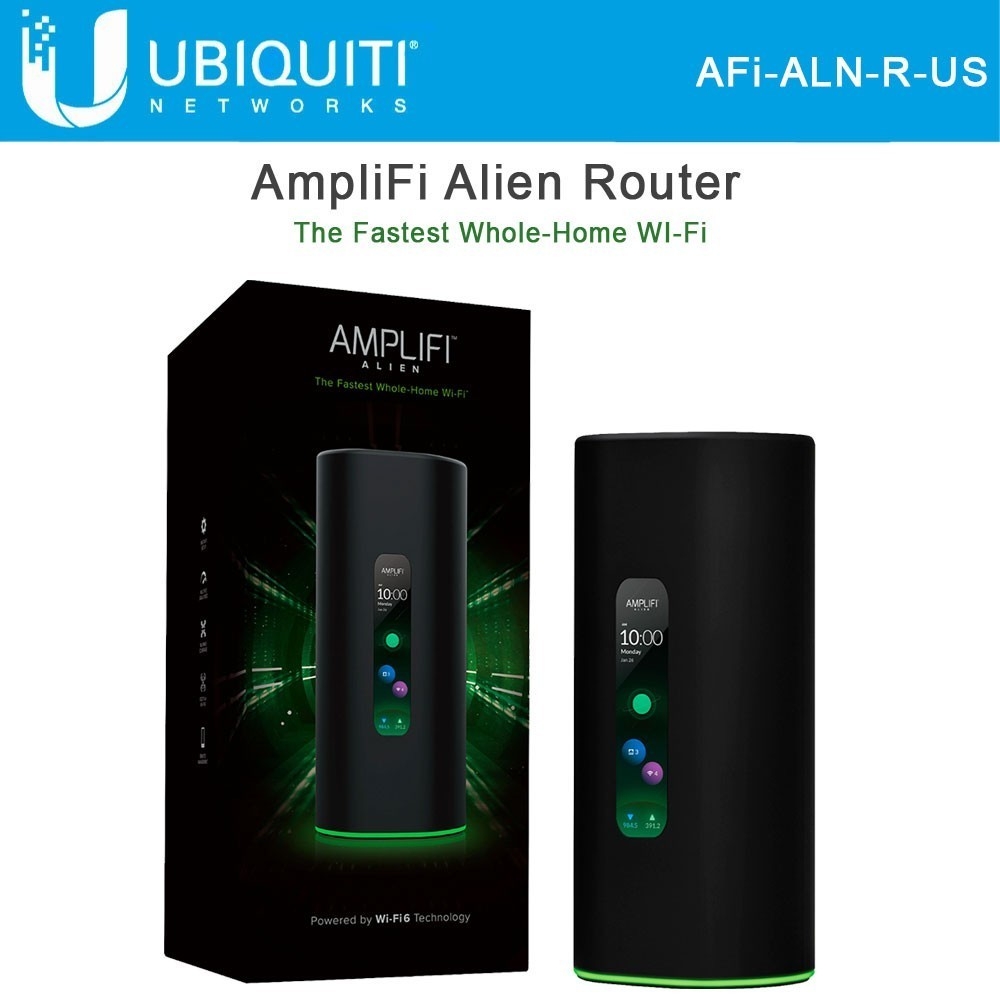

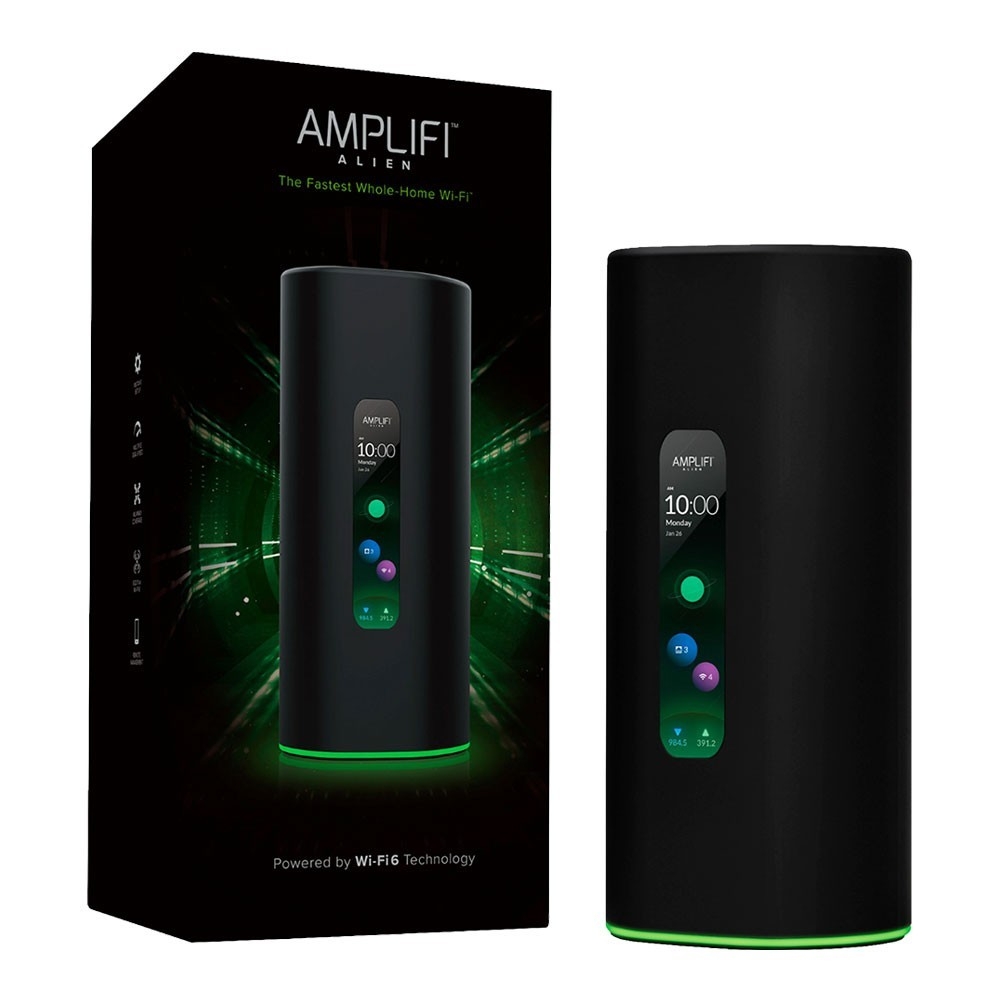

Ubiquiti Networks AFi-ALN-R-US AmpliFi Alien WiFi System US
Product Highlights
Model#: AFi-ALN-R-US
Sku: IT4074
MSRP: $459.99
In Stock
Your Price: $459.99
Model: AFi-ALN-R-US
With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds. It features a tri-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance and backwards compatibility with previous Wi-Fi standards. The third radio (4x4) can be enabled to enhance performance of 5 GHz Wi-Fi 5 devices.
AmpliFi Alien can be used as a stand-alone router, or you can add an unlimited number of AmpliFi Alien Routers for use as MeshPoints to expand range coverage.
Dimensions
110 x 110 x 250 mm (4.33 x 4.33 x 9.84")
Weight
1.2 kg ( 2.65 lb)
Max. TX Power
2.4 GHz: 23 dBm per chain, 5 GHz: 19 dBm per Chain (low-band)/ 20 dBm per Chain (high-band)
MIMO
2.4 GHz: 4x4 5 GHz: 4x4 (low-band) + 8x8 (high-band)
Speed
2.4 GHz: 1148 Mbps, 5 GHz: 1733 Mbps (low-band)/ 4804 Mbps (high-band)
Supported Bandwidths
20, 40, 80, 160 Mhz (5GHz)
20, 20/40 MHz (2.4Ghz)
Networking Interface
Wi-Fi; Gigabit Ethernet: (1) WAN, (4) LAN
Max. Power Consumption
35W
ESD/EMP Protection
± 24kV Air/Contact
Buttons
Reset
Antennas
(1) Internal Dual-Band Metal Stamp with 12 Polarity
Display
110.38 mm (4.7") Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color
Wi-Fi Standards
Up to Wi-Fi 6
Power Save
Supported
Wireless Security
WPA2
Operating Temperature
14 to 113° F (-10 to 45° C)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC / IC
