UISP-Cable-Pro

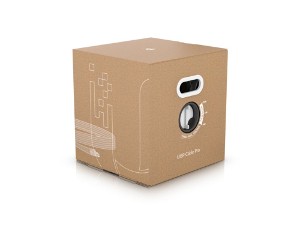

UISP-Cable-Pro picture 3

Ubiquiti


Ubiquiti Networks UISP-Cable-Pro UISP Cable Pro Outdoor Cat5e 1000ft



Product Highlights
  • 1,000 ft (305 m) Category 5e cable
  • 24 AWG solid copper conductor pairings
  • Insulated, weatherproof cable jacket
  • Internal foil shielding and drain wire for increased ESD damage protection
  • Model#: UISP-Cable-Pro

    Sku: IT4079



    MSRP: $159.99

    In Stock

    Your Price: $159.99






    The UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

    Mechanical

    • Box Dimensions
      • 330 x 330 x 340 mm (13 x 13 x 13.4")
    • Box Weight
      • 12 kg (26.5 lb)
    • Cable Length
      • 305 m (1000 ft)
    • Cable Color
      • Black
    • Cable Type
      • CAT5e, Shielded
    • Ethernet Support
      • Up to 1 Gbps
    • Conductor Wire Gauge
      • 24 AWG
    • Conductor
      • Solid Bare Copper
    • Conductor Diameter
      • 0.500 ± 0.005 mm
    • Insulation Type
      • Solid Polyethylene
    • Insulation Thickness
      • Avg. 0.26 mm
      • Min. 0.25 mm
    • Insulation Diameter
      • 1.04 ± 0.03 mm
    • Separation (Polyester Wrapping)
      • Thick: 0.025 mm, Extent: 20 mm
    • Anti-Crosstalk Divider
      • None
    • Cable Shield (Aluminum Foil)
      • Thick: 0.060 mm, Extent: 18 mm
    • ESD Drain Wire
      •  0.4 CCS
    • Rip Cord
      • Yes
    • Jacket Material
      • Polyethylene
    • Jacket Thickness
      • Avg. 0.50 mm
    • Min.
      • 0.46 mm
    • Jacket Outer Diameter
      • 6.0 ± 0.30 mm
    • Jacket Color
      • Black
    • Storage Temperature
      • -30 to 75° C (-22 to 167° F)
    • Installation Temperature
      • -20 to 60° C (-4 to 140° F)
    • Operation Temperature
      • -40 to 80° C (-40 to 176° F)
    • Standards
      • ANSI/TIA-568-C.2 (2009)
      • ISO/IEC 11801 (Edition 2.2)
