UVC-G4-Doorbell-Pro-US
UVC-G4-Doorbell-Pro-US picture 3

Ubiquiti


Ubiquiti Networks UVC-G4-Doorbell-Pro-US UniFi Protect G4 Doorbell Pro US



Product Highlights
  • Streams 1080p HD video at 30 FPS
  • (1) 5MP camera with an IR LED [Video output: 1600x1200 (2MP), 30 FPS]
  • Dual-band WiFi and GbE connectivity
  • (1) 8MP package camera [Video output: 1600x1200 (2MP), 2 FPS, no IR LED]
  • Two-way audio with echo cancellation
  • Model#: UVC-G4-Doorbell-Pro-US

    Sku: IT4085



    MSRP: $349.99

    In Stock

    Your Price: $349.99






    MODEL: UVC-G4-Doorbell-Pro-US

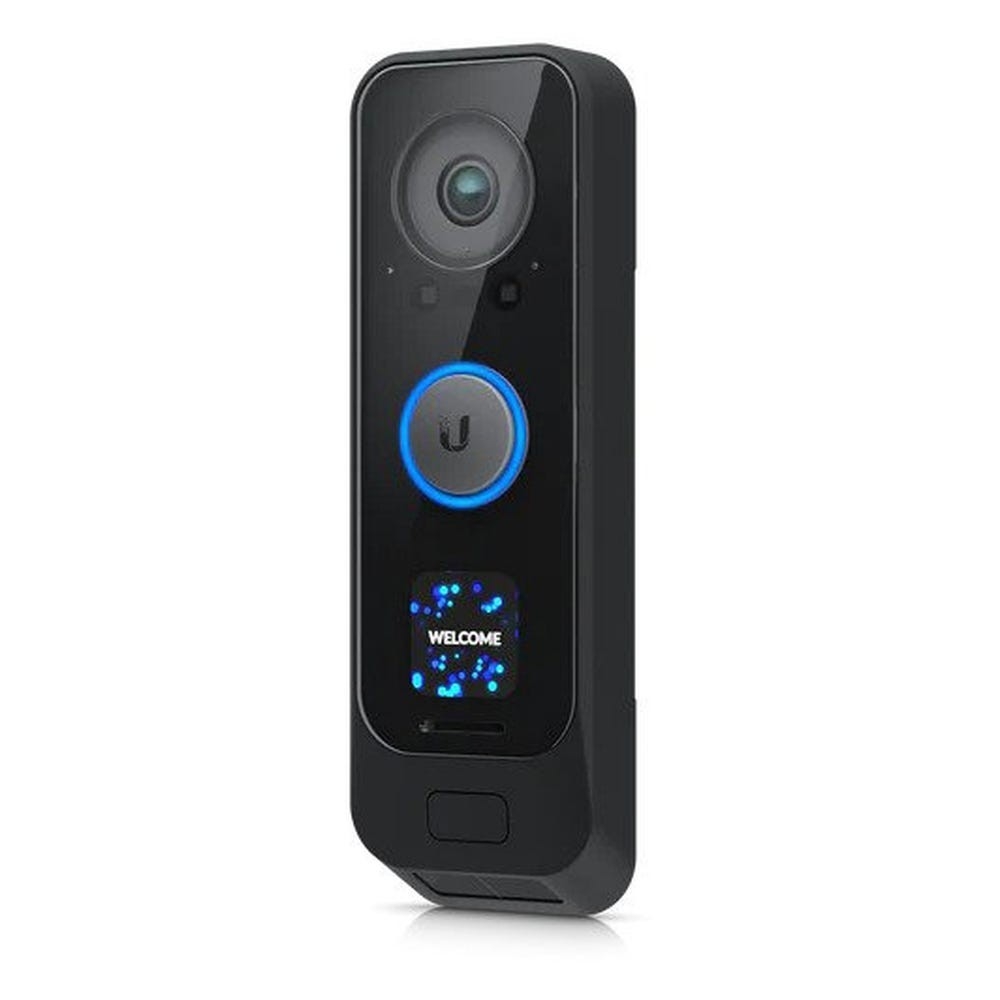

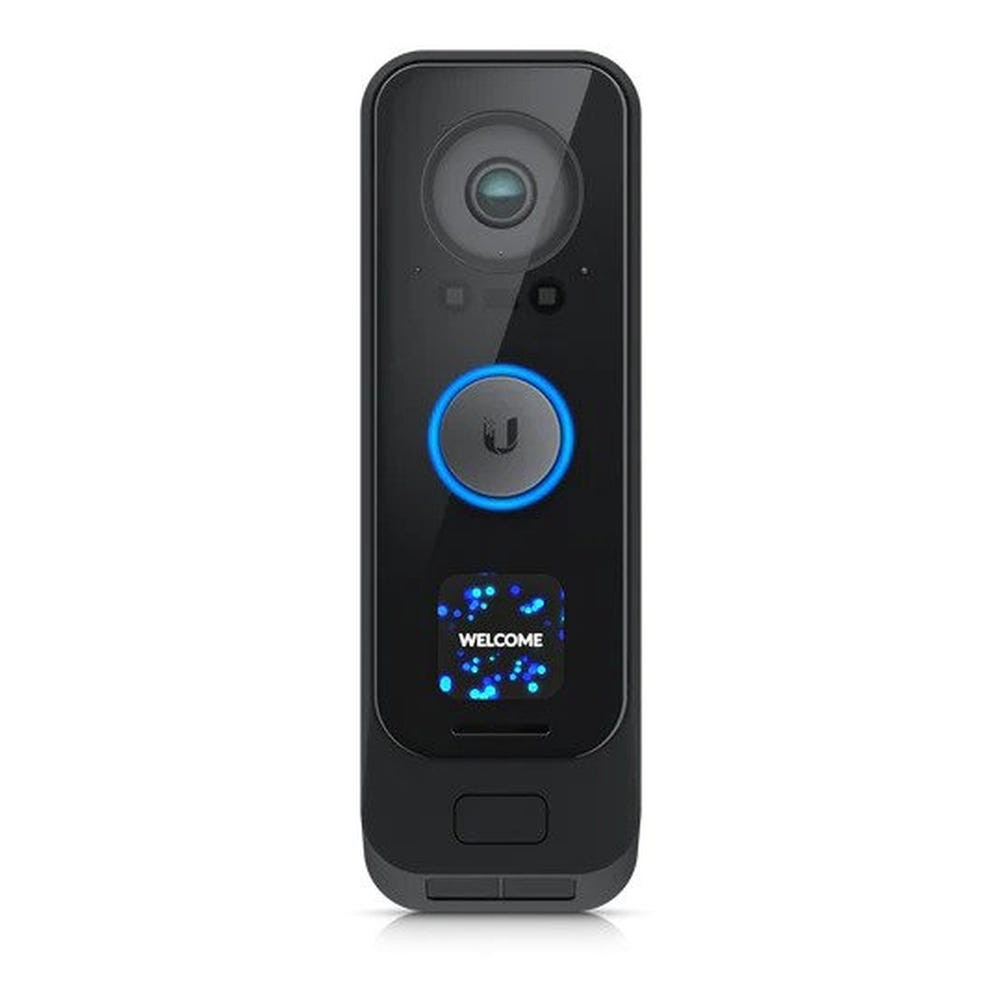

    WiFi-connected video doorbell with a primary 5MP night vision camera, secondary 8 MP package camera, programmable display, and porch light.

    The G4 Doorbell Pro is a WiFi-enabled video doorbell equipped with a primary 5MP camera and a secondary 8MP package camera. The doorbell's main camera is equipped with IR LED to provide enhanced night vision that, when combined with the built-in porch light, ensures a reliably clear surveillance feed around the clock. The G4 Doorbell Pro also features echo-cancelling, two-way audio so you can interact with visitors, and its programmable display allows you to give alerts or delivery instructions to couriers. Designed to be a powerful, plug-and-play security tool, the G4 Doorbell Pro can be set up and configured in minutes with the UniFi Protect application.

     Features:

    • ?Streams 1080p HD video at 30 FPS
    • Dual-band WiFi and GbE* connectivity
    • (1) 5MP camera with an IR LED [Video output: 1600x1200 (2MP), 30 FPS]
    • (1) 8MP package camera [Video output: 1600x1200 (2MP), 2 FPS, no IR LED]
    • Two-way audio with echo cancellation
    • Built-in porch light that illuminates objects up to 2 meters away
    • Motion detection sensor
    • IPX4-rated, weather-resistant casing
    • Programmable display
    • Included wall mount, angle mount, screw kit, and chime power kit*
    • Easy, Bluetooth-powered setup via the UniFi Protect mobile app

    Specifications

    Dimensions 160.6 x 51.7 x 28.7 mm (6.32 x 2.03 x 1.13")
    Weight Without mount: 253 g (8.92 oz)
    With flat wall mount: 286 g (10.08 oz)
    With 20° wedge mount: 325 g (11.46 oz)
    Enclosure materials Polycarbonate, aluminum alloy
    Mounting materials Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate
    Weatherproofing IPX4
    Optics
    Sensor 5 MP CMOS sensor
    Lens Fixed focal length
    View angle H: 138°, V: 114°, D: 155°
    Night mode IR LED illumination and an IR cut filter
    Video
    Video compression H.264
    Resolution 1600 x 1200 (4:3)
    Maximum frame rate 30 FPS
    System
    Processor specs Quad core Arm® Cortex®-A53 based chip
    Memory information 512 MB
    Management interface UniFi Protect application
    Networking interface 802.11a/b/g/n/ac WiFi Bluetooth™ 5.0 GbE support (with UACC-Adapter-DBPOE)
    Flash memory support 256 MB
    Max. power consumption 10VA
    Power requirements 16 to 24VAC, 1.25A max., 50/60 Hz USB-C power cable, 5VDC, 2A
    Supported voltage range 37 to 57VDC
    Link/activity LED Yes
    Button Factory reset
    Mounting Flat wall, 20° wedge (kits included)
    Operating temperature -10 to 40º C (14 to 104º F)
    Operating humidity 10 to 90% noncondensing
    Certifications FCC, IC, CE
    Audio
    Microphone Yes (can be disabled)
    Speaker Yes
    Software
    UniFi OS application UniFi Protect
    Mobile app UniFi Protect iOS and Android
    Compatible Mechanical Chimes
    Manufacturer Model
    Broan-NuTone LA126WH
    Broan-NuTone LA11WH
    Heath Zenith SL-2735
    Craftmade CTPW-RG
    Broan-NuTone LA39WH
    Newhouse Hardware CHM3D
    Compatible Digital Chimes
    Manufacturer Model
    Broan-NuTone LA600WH
    IQ AMERICA DW-2850
    IQ AMERICA DW-2840

    Datasheet

    PDF File Ubiquiti Networks UVC-G4-Doorbell-Pro-US UniFi Protect G4 Doorbell Pro US
