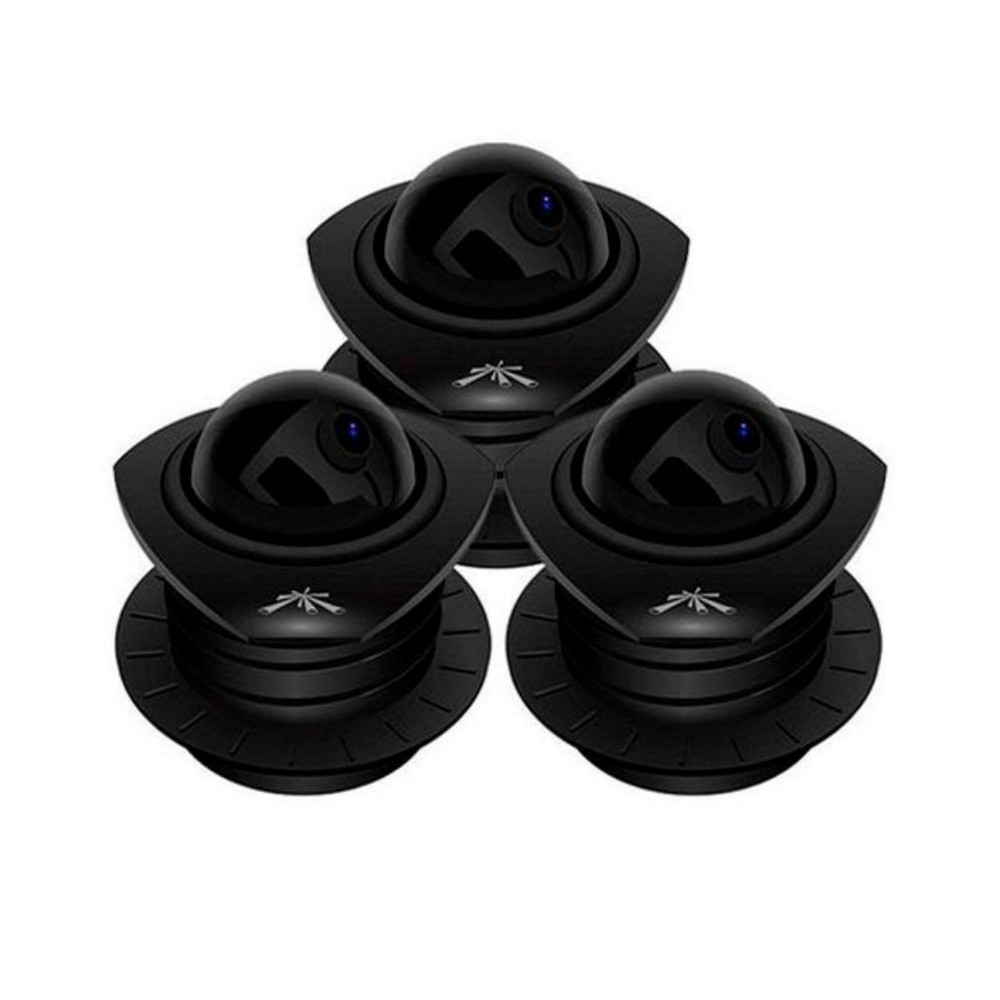

Ubiquiti AirCam Security Camera Dome IP Camera airVision 1 megapixel HDTV 720p 4.0mm PoE (3-Pack)


Product Highlights
  • Ubiquiti Networks Security Camera AirCam-Dome 1MP Network Dome Camera
  • The airCam Dome 1MP Network Dome Camera from Ubiquiti is a ceiling-mountable camera with a 1MP 1/4
  • 1.96mm fixed lens has a wide 101° diagonal field of view to monitor large areas
  • 1.96mm Fixed Lens
  • Built-In Microphone

    • Model#: Aircam-Dome-3

    Sku: IT4092

    Out of stock

    Your Price: N/A


    Model: AirCam-Dome

    The airCam Dome 1MP Network Dome Camera from Ubiquiti is a ceiling-mountable camera with a 1MP 1/4" progressive scan RGB CMOS sensor to capture 1280 x 720 resolution video at up to 30 fps. Its 1.96mm fixed lens has a wide 109° diagonal field of view that can be manually tilted from 0-70° to provide the ideal viewing angle to fit your needs. The camera comes with a PoE adapter to allow power and network connection to run through a single Ethernet cable. The camera can record to a microSD card (available separately) through its microSD card slot. The built-in microphone picks up nearby sound for complete audio and video surveillance. This camera can be paired with a Ubiquiti Networks airMax product (available separately) to make it operate wirelessly.



    • 1MP 1/4" progressive scan RGB CMOS sensor capture 720p video at up to 30 fps
    • 1.96mm fixed lens has a wide 101° diagonal field of view to monitor large areas
    • Removable dome cover for quick and easy adjustments
    • Ceiling-mountable dome camera
    • 24V PoE adapter and power cord included

    AirCam Dome Features:

    • H.264 megapixel camera

    • Built-in Microphone

    • Ceiling mount

    • 30 FPS

    • 1MP/HDTV 720p

    • 4.0mm / F1.5

    • Powered through Ethernet

      Viewing Angle:

    • 90 - horizontal viewing angle

    • 62 - vertical viewing angle

    • 101 - diagonal viewing angle

    AirCam Dome Specification:

    • Dimensions: 100 x 94 mm (L x D)

    • Weight: 179.66 g

    • Ports: (1) 10/100 Ethernet, MicroSD Card Slot

    • Sensor: Progressive Scan RGB CMOS 1/4"

    • Power LED: Orange

    • Link/Active LED: Green

    • Factory Reset Button

    • Passive Power over Ethernet (12-24V)

    • Image Settings: Brightness, Contrast, Sharpness, Saturation, Mirror, Flip, 50Hz/60Hz

    • ARM-based 32-bit RISC processor

    • 128MB DDR2 SDRAM, 8MB Flash

    • MicroSD Card not included

    AirCam Dome Package Includes:

    • airCam Dome Camera

    • Ceiling mount

    • Power over Ethernet Adapter

    • airVision Software Installation CD
