Model: UVC-G4-PRO
The UniFi® Protect Camera, model UVC-G4-PRO, represents the next generation of cameras designed for use with the UniFi Protect surveillance management system. This camera offers 4K Ultra HD resolution for day or night use and integrates with the UniFi Protect software for powerful and flexible IP video management.
The UVC-G4-PRO is easy to set up, operate, and manage using the UniFi Protect software, which comes pre-installed the UCK-G2-PLUS, the latest generation Cloud Key controller.

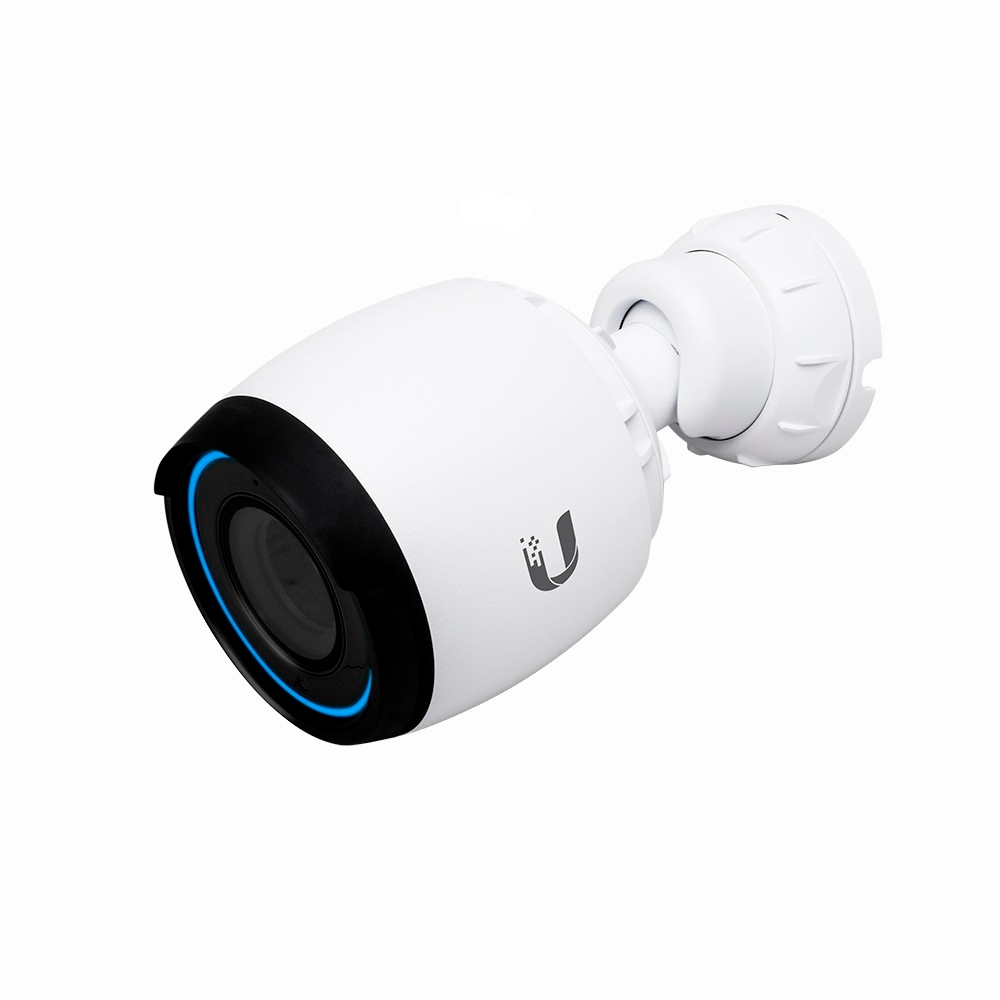

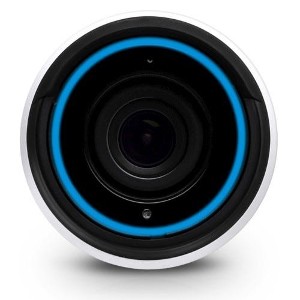

The G4 Pro camera features a powered zoom lens and crisp 4K Ultra HD video performance with infrared capability. The versatile 3-axis mount enables indoor or outdoor installation of the camera. The camera has infrared LEDs with an automatic IR cut filter for day and night surveillance.
Using a standard web browser or Bluetooth from your mobile device, deployment of your UniFi Protect controller can be set up and configured in a matter of minutes. Web Browser Access
browser and designed to be easy to use, yet packed with advanced features. The UniFi Protect interface is incredibly intuitive and loaded with powerful features such as statistical reporting, multiple live view options, versatile camera settings, advanced analytics, and customizable event recordings.
Automatic camera detection in UniFi Protect makes it easy to install and deploy cameras. All of the camera settings are integrated into the software. You can also configure, reboot, or upgrade the firmware on any camera from within the UniFi Protect interface.
Configure playlists that automatically rotate the live view feed between cameras. Define the cameras you want to include in the playlist and how long you want them to appear on the screen before moving on to the next live feed.
Shattering conventional industry thinking, UniFi Protect provides powerful IP surveillance software without any huge, up-front costs or monthly subscription fees.
The downloadable app provides free remote cloud access to your UniFi Protect system. It also allows you to securely access video recordings that are privately stored on the Cloud Key Gen2 Plus rather than a third-party server or internet cloud.
Dimensions (Without Mounting Plate) | Ø 86 x 153 mm (Ø 3.39 x 6.02") |
Weight (Without Mounting Plate) | 700 g (1.54 lb) |

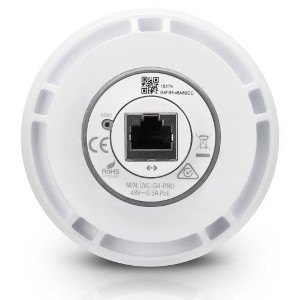

Networking Interface | (1) 10/100/1000 Ethernet Port |
Management Interface Managed Mode Standalone Mode |
UniFi Protect Camera Integrated Web UI |
Sensor | OS08A20, 1/1.8" |
Lens | F 4.24 - 12.66 mm; ƒ/1.53 -ƒ/3.3 |
Night Mode | IR LEDs with Mechanical IR Cut Filter |
Microphone | Yes |
Button | Factory Reset Button |
Power Method | IEEE 802.3af/at |
Power Supply | 802.3af/802.3at or UniFi PoE Switch |
Maximum Power Consumption | 12.5W |
Mounting | Wall/Ceiling/Pole |
Operating Temperature | -20 to 50° C (-4 to 122° F) |
Operating Humidity | 0 to 90% Noncondensing |
Weatherproofing | IP67 |
Video | |
Video Compression | H.264 |
Resolution | 4K Ultra HD (3840 x 2160) |
Maximum Frame Rate | 24 FPS |
Image Settings | Flip, Brightness, Contrast, WDR, Hue, Infrared, Sharpness, Saturation, Denoise, 50/60 Hz Flicker Reduction |
General | |
Viewing Angle Wide Zoom |
108° (H), 58° (V), 125° (D) 37° (H), 20° (V), 43° (D) |
