UACC-LRE

Ubiquiti

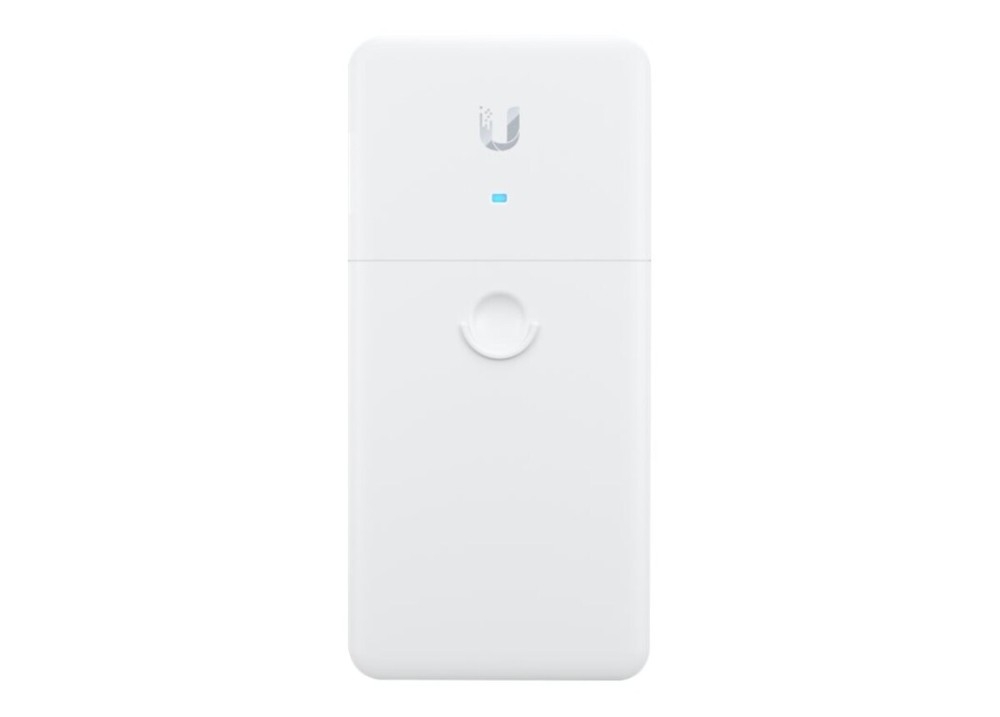

Ubiquiti UACC-LRE Long-Range Ethernet Repeater



Product Highlights
  • Establishes long-range connections between PoE switches and devices
  • Chains with other UACC LRE units
  • (1) GbE RJ45 port for PoE/PoE+ input
  • (1) GbE RJ45 port for passthrough PoE output
  • 10kA+ surge protection , Works reliably in extreme temperatures (-40 to 80° C)
  • Model#: UACC-LRE

    Sku: IT4099



    MSRP: $35.00

    In Stock

    Your Price: $35.00






    MODEL: UACC-LRE

    The Long-Range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage. Supports up to 1 km link distances*.

    Mechanical
    Dimensions 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5")
    Weight 350 g (12.3 oz)
    Enclosure material UV stabilized polycarbonate
    Mounting material Stainless steel
    Weatherproofing IPX5
    Hardware
    Networking interfaces (2) GbE RJ45 ports
    Power method PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
    Max power consumption (excluding PoE out) 1.5W
    Voltage range 37 to 57VDC
    PoE interfaces (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
    ESD/EMP protection Air/contact: ± 30kV
    DC sparkover voltage 90V at 100V/s
    Max. impulse sparkover voltage 700V at 1kV/μs
    Discharge current 10kA+
    Modes Long-range indoor
    Outdoor ethernet repeater
    Operating temperature -40 to 80° C (-40 to 176° F)
    Operating humidity 10 - 95% non-condensing
    Certifications CE, FCC, IC
    LEDs
    System (1) Blue: power ON
    Ethernet (2) Green: 1 Gbps, Amber: 10/100 Mbps
    PoE (1) Amber: passthrough PoE out

    Datasheet

    PDF File Ubiquiti UACC-LRE Long-Range Ethernet Repeater
