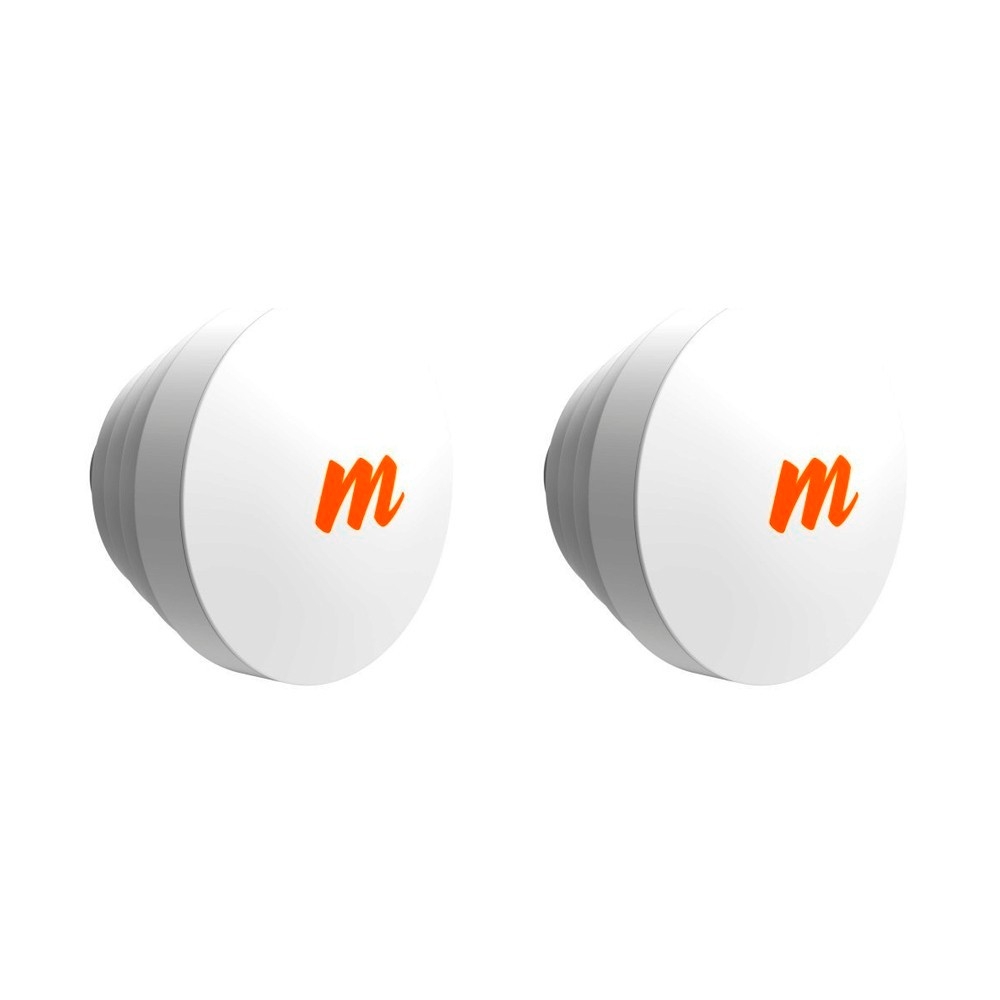

Mimosa Networks N5-X16 2 Packs 4.9-6.4 GHz Modular Twist-on Antenna 150mm Horn for C5x only 16 dBi gain

Mimosa Networks N5-X16 2 Packs 4.9-6.4 GHz Modular Twist-on Antenna 150mm Horn for C5x only 16 dBi gain

Product Highlights

The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support

Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection

Gain: 16 dBi | Polarization: Dual-slant 45º | Beamwidth, Symmetric (3 dB): 22º | Front-to-Back Ratio (min): 50 dB | Front-to-Side Ratio (min): 43 dB

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas

Offering the ease and simplicity of integrated radios, but with so much more flexibility

Model#: N5-X16-2PK

Sku: IT4159

MSRP: $69.99

Out of stock

N5-X16

#Part number: 100-00087

The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

Product: N5-X16 (horn)
Gain: 16 dBi
Polarization: Dual-slant 45º
Beamwidth, Symmetric (3 dB): 22º
Front-to-Back Ratio (min): 50 dB
Front-to-Side Ratio (min): 43 dB
Weight: 0.61 kg (1.35 lbs)
Dimensions: Diameter:160 mm (6.29”) / Depth:116 mm (4.57”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading:

5.13 kg @
160 km/h
(11.30 lbs @100 mph)
