N5-X20-8PK

Mimosa Network

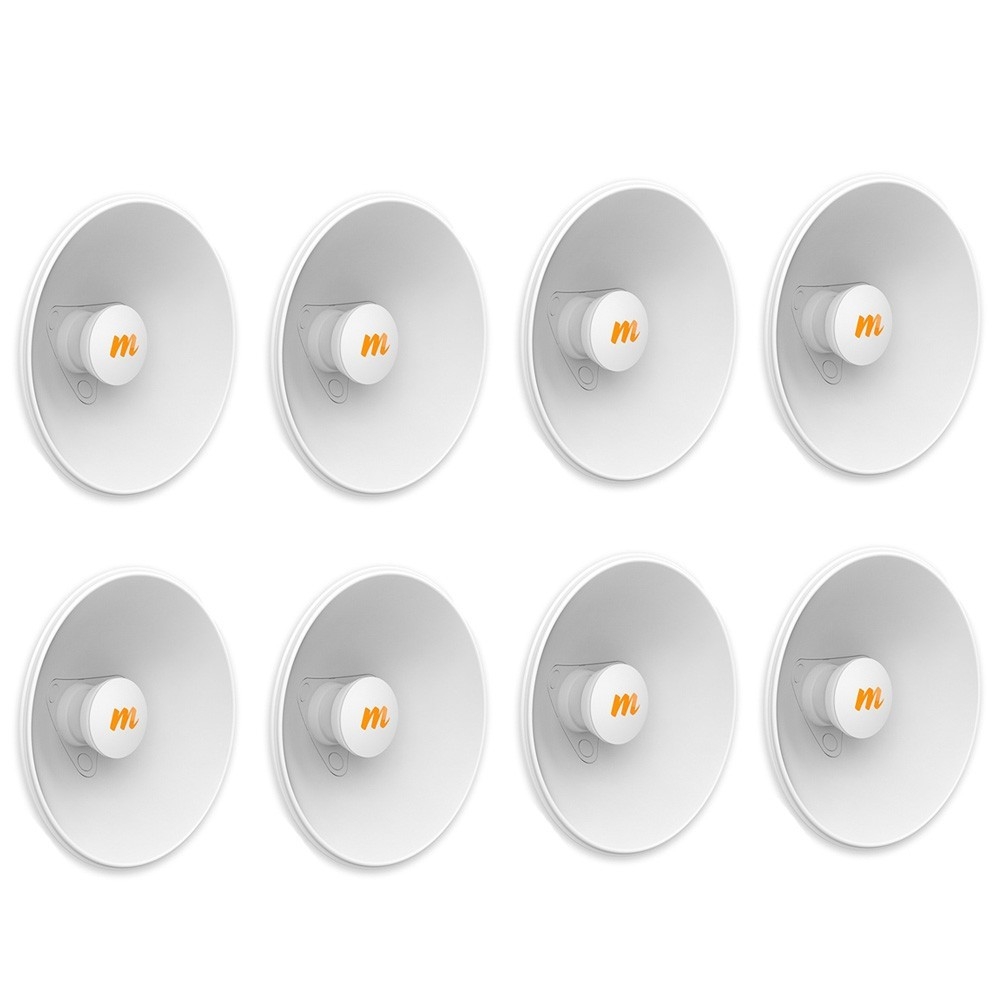

Mimosa N5-X20 4.9-6.4 GHz 20 dBi Modular Twist-on Antenna 250mm Dish for C5x (8-Units)


Model#: N5-X20-8PK

Sku: IT4162

Out of stock

Your Price: N/A


N5-X20 (8 Units)

  • #Part number: 100-00088

The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

N5-X20 (8 Units)

  • Product: N5-X20 (dish)
  • Gain: 20 dBi
  • Polarization Dual-slant 45º
  • Beamwidth, Symmetric (3 dB): 12º
  • Front-to-Back Ratio (min): 35 dB
  • Front-to-Side Ratio (min): 37 dB
  • Weight: 0.77 kg (1.70 lbs)
  • Dimensions: Diameter:270 mm (10.63”) / Depth:83 mm (3.27”)
  • Mount: Mimosa N5-X twist-on
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading:

              14.55 @
              160 km/h
              (32.07 lbs @ 100 mph)
