U-POE-AT
U-POE-AT picture 3

Ubiquiti

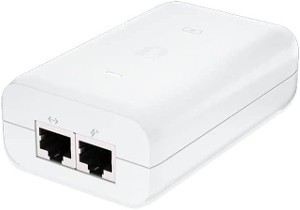

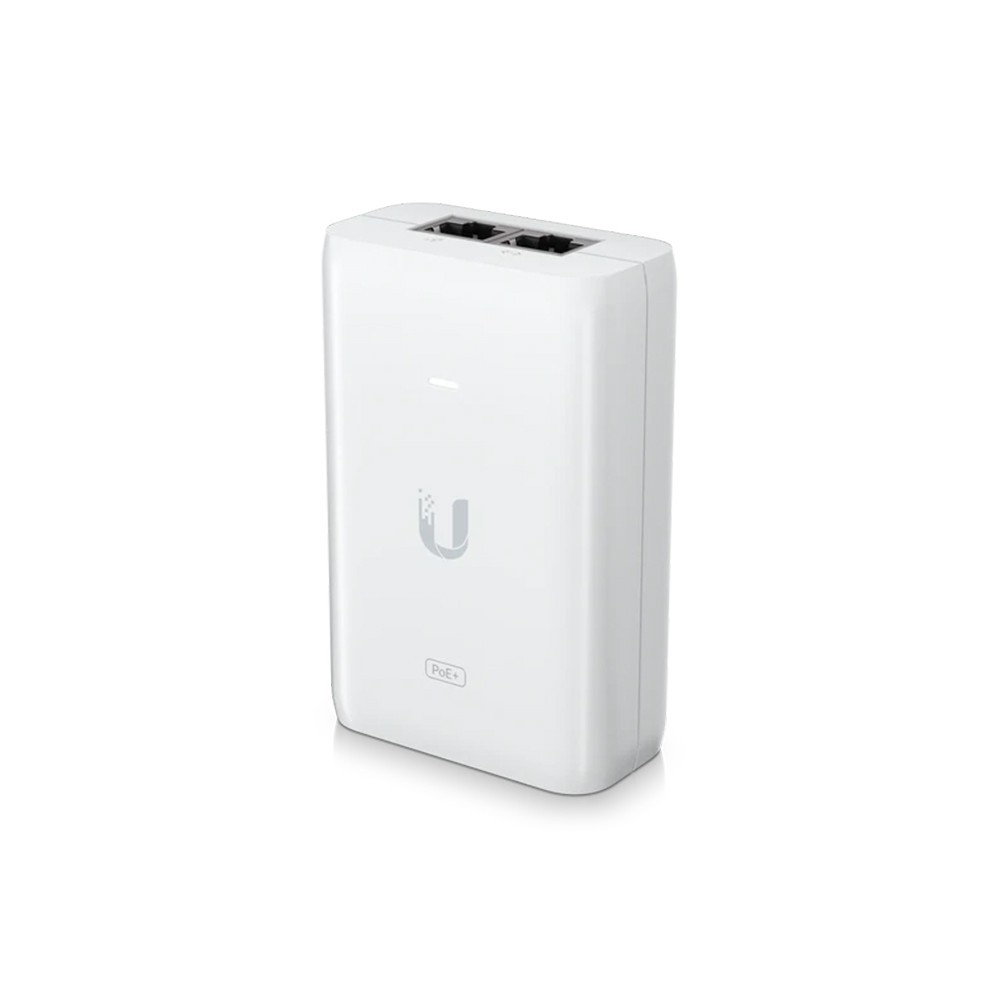

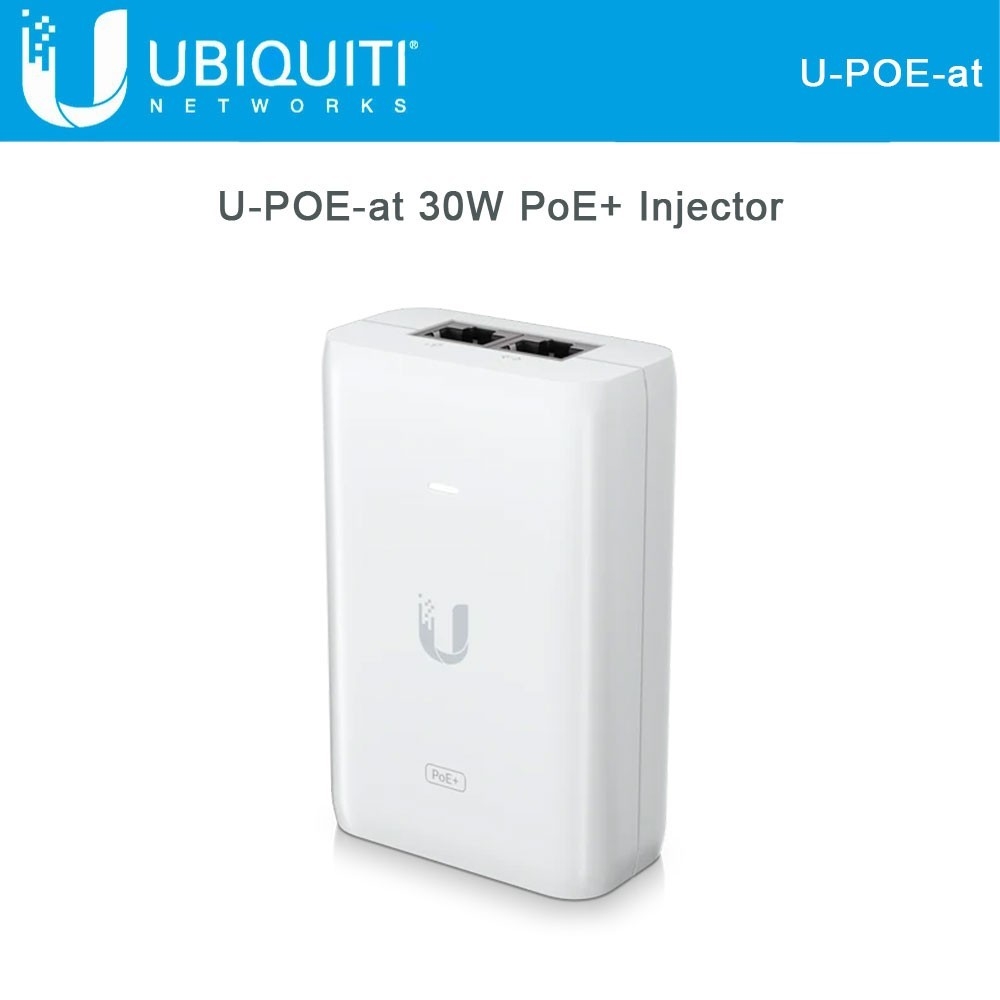

Ubiquiti Networks U-POE-at 802.3at Supported PoE Injector


Product Highlights
  • Delivers up to 30W of PoE+
  • Compatible with the U6 LR and other PoE+ devices
  • Surge and clamping protection
  • AC cable with earth ground

    • Model#: U-POE-AT

    Sku: IT4179



    MSRP: $19.99

    In Stock

    Your Price: $19.99






    SKU: U-POE-AT

    Compact PoE+ Injector capable of delivering 30 W of power to your Ubiquiti Access Points and Cameras

    The U-PoE-AT is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE-AT can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.

    • Model
      • U-POE-at
    • Dimensions
      • 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
    • Weight
      • 156 g (5.5 oz)
    • Output Voltage
      • 48VDC @ 0.65A
    • LAN Activity Indicator
      • No
    • Gigabit LAN Port
      • Yes
    • Remote Reset Capability
      • Yes
    • Reset Button
      • No
    • Rated Voltage
      • 100-240VAC @ 50/60Hz
    • Input Current
      • 0.75A@90VAC
    • Inrush Current
      • <100A Peak @230VAC, 26?
    • Efficiency
      • 87%
    • Output Ripple
      • 1% Max.
    • Switching Frequency
      • 70 kHz Max.
    • Line Regulation
      • ≤ 3%
    • Load Regulation
      • ≤ 5%
    • 2-Pair Powering
      • Pins 4, 5 (+) and Pins 7, 8 (-)

    Datasheet

    PDF File Ubiquiti Networks U-POE-at 802.3at Supported PoE Injector
