Ubiquiti EdgePower 24V, 72W DC Power Supply with UPS and PoE
Product Highlights
Model#: EP-24V-72W
Sku: IT4187
MSRP: $181.99
In Stock
Your Price: $181.99
Model: EP-24V-72W

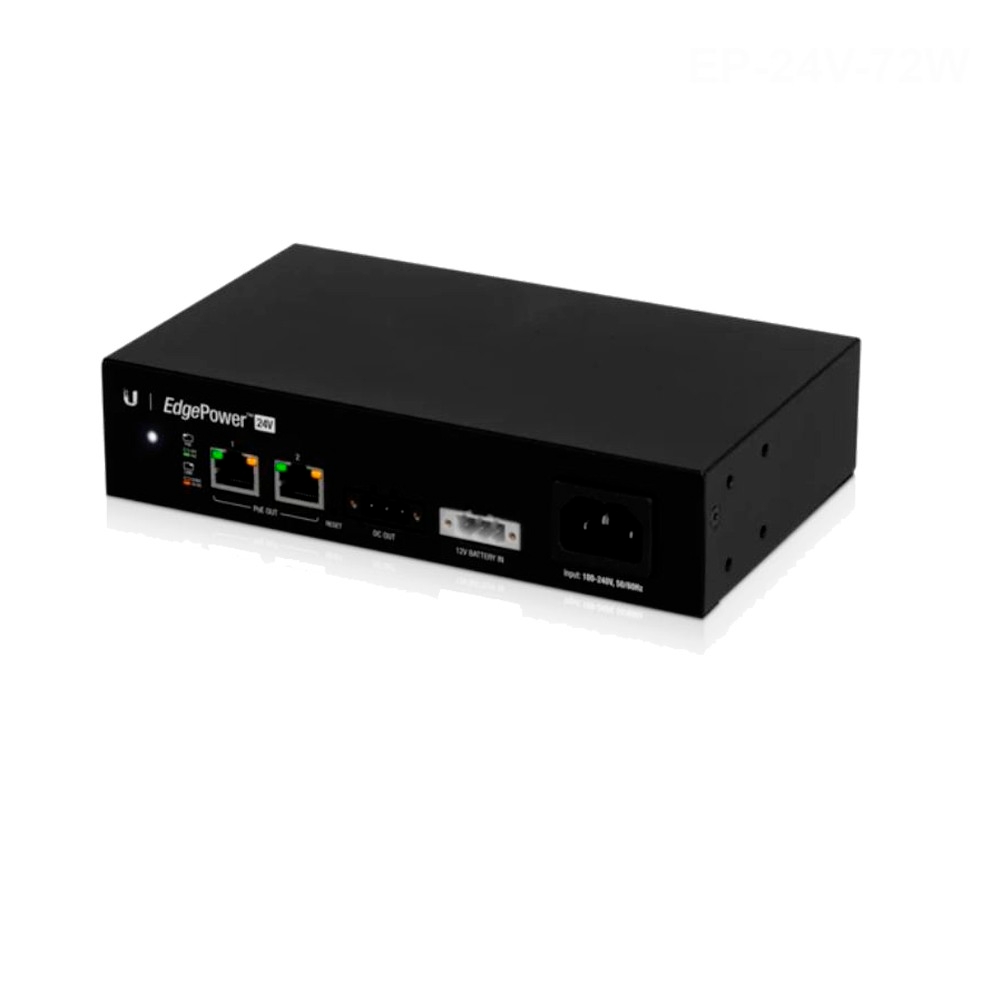

EdgePower 24V, 72W DC Power Supply with UPS and PoE
The EdgePower 24V 72W is a UNMS monitored and managed 24V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 24V redundant power supply that includes a management user interface and simple 12V battery backup charger with multiple 24V outputs for small sites.
Note:*12V Battery Not Included
SPECIFICATIONS
Specifications EP-24V-72W
| Dimensions | 192 x 43.7 x 115 mm (7.559 x 1.72 x 4.528") |
| Weight | 650 g (1.43 lb) |
| Interfaces Networking Management | (2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) DC Output 24V, 3A |
| Power Method AC Input Battery Input | 100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
| Power Supply AC Input Battery Input | AC/DC 72W 12VDC Lead Acid Battery* |
| Max. Power Consumption System Output | 2W 72W |
| LEDs System RJ45 Data Ports | Status PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Datasheet
