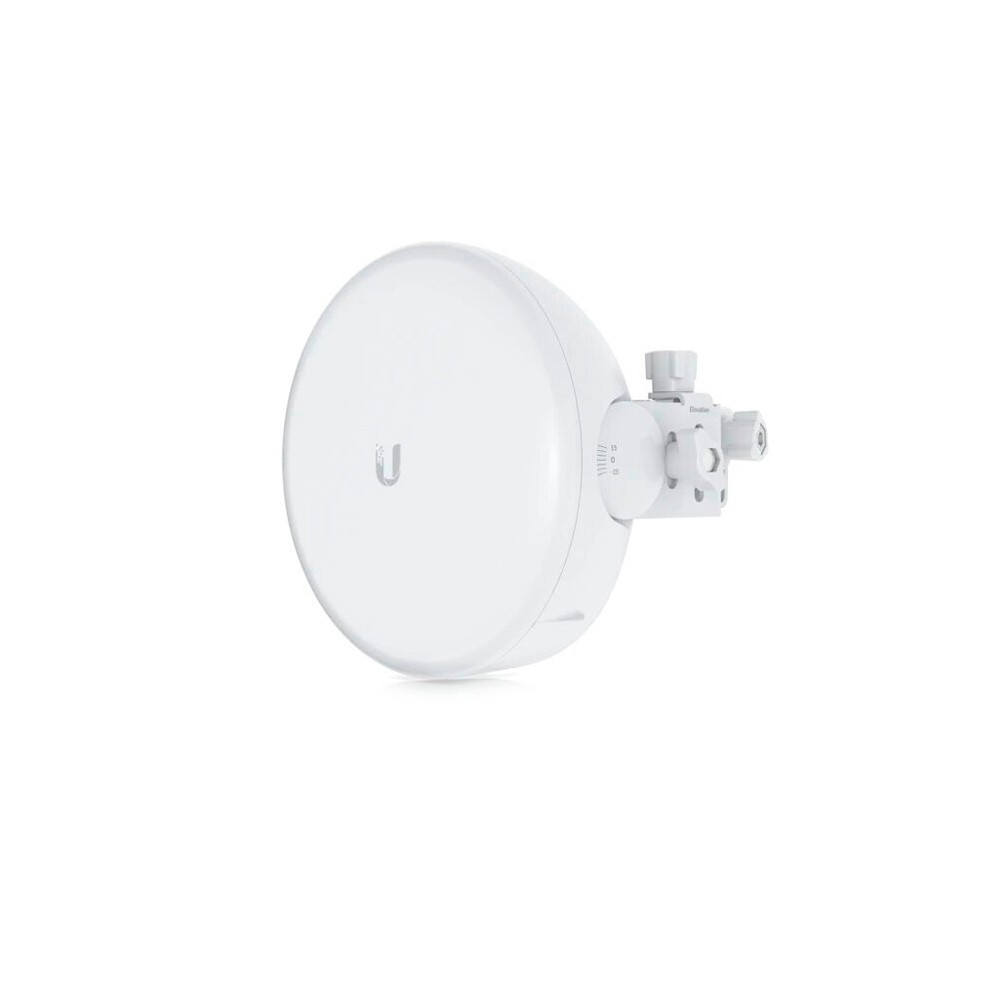

Ubiquiti Networks GBE-Plus-US 60GHz airMAX GigaBeam Plus 1.5+Gbps - US VERSION
Product Highlights
Model#: GBE-Plus-US
Sku: IT4194
MSRP: $209.99
Out of stock
Your Price: $209.99
Model: GBE-Plus-US
GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™ Mobile app via Bluetooth.
Wireless
- Wireless Frequency Bands: 60 GHz Single-Band
- Number of Antennas: 1
- MU-MIMO Support: None
- Antenna Gain: 35 dBi
- Transmit Power: 17 dBm
Interface
- Ports: 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
Security
- Wireless Security: WPA2
Management
- Throughput: 1500 Mb/s Total 60 GHz: 1500 Mb/s
Hardware
- RAM: 256 MB
- Processor: ARM Cortex A7 Quad-Core
Electrical
- DC Input Power: 22 to 26 VDC at 0.5 A
- Power Consumption: 11 W
Environmental
- Operating Temperature: -40 to 140°F / -40 to 60°C
- Operating Humidity: 5 to 95%
General
- Certifications: CE, FCC, IC, as per Manufacturer
- Mount Options: Pole, Wall
- Range: 0.9 Miles / 1.5 km
- Dimensions: 6.1 x 6.1 x 5.4" / 155 x 155 x 137 mm
- Weight: 2.2 lb / 1 kg
Packaging Info
- Package Weight: 3.235 lb
- Box Dimensions (LxWxH): 8.1 x 7.5 x 7.4"
Datasheet
