RBLHGR&R11e-LTE6

Mikrotik


MikroTik RBLHGR&R11e-LTE6 LHG R LTE6 Kit Cat6 LTE


Product Highlights

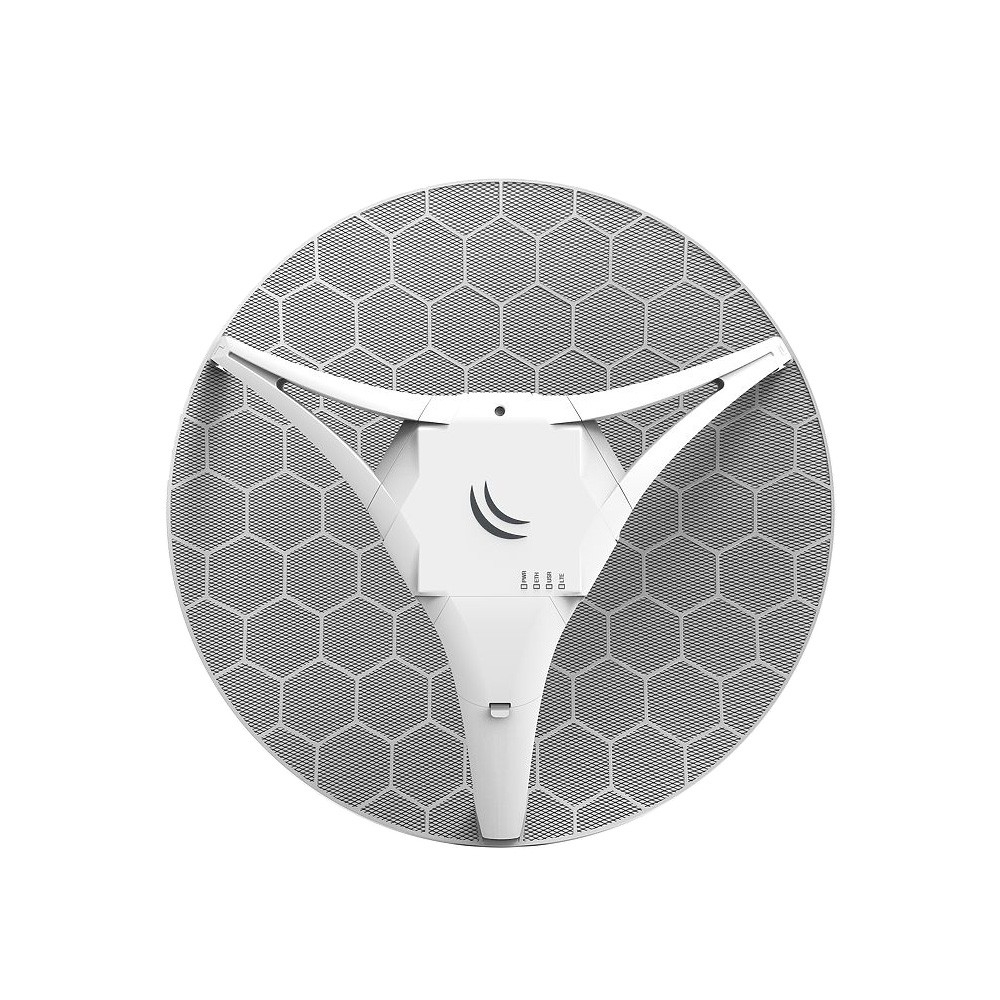

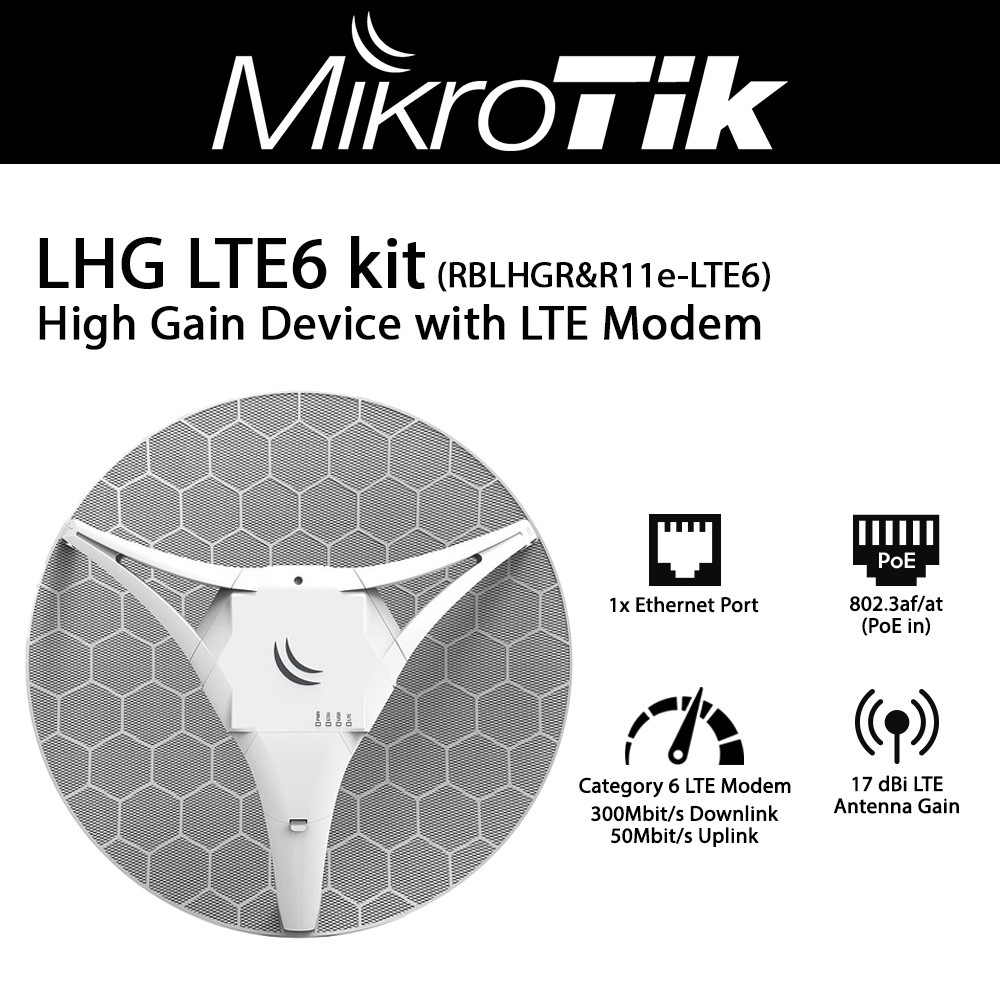

  • The LHG LTE6 kit also known as RBLHGR&R11e-LTE6 is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail
  • Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available
  • The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time
  • It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside
  • CPU: QCA9531, CPU core count: 1, Size of RAM: 64 MB, Storage size: 16 MB, PoE in: 802.3af/at, 10/100 Ethernet ports: 1, Number of SIM slots: 1 Modem (Micro SIM), MiniPCI-e slots: 1

    • Model#: RBLHGR&R11e-LTE6

    Sku: IT4214



    MSRP: $219.99

    In Stock

    Your Price: $219.99






    The LHG LTE6 kit also known as RBLHGR&R11e-LTE6 is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

    Specifications

    • Product code    RBLHGR&R11e-LTE6
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • License level    3
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -30°C to 60°C

    Powering

    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W

    Mobile

    • 2G Category    Class12
    • 2G bands    2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    • 3G bands    1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    • LTE Category    6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    • LTE FDD bands    1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
    • LTE TDD bands    38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

    Ethernet

    • 10/100 Ethernet ports    1

    Peripherals

    • Number of SIM slots    1 Modem (Micro SIM)
    • MiniPCI-e slots    1

    Other

    • Mode button    Yes

    Datasheet

    PDF File MikroTik RBLHGR&R11e-LTE6 LHG R LTE6 Kit Cat6 LTE
