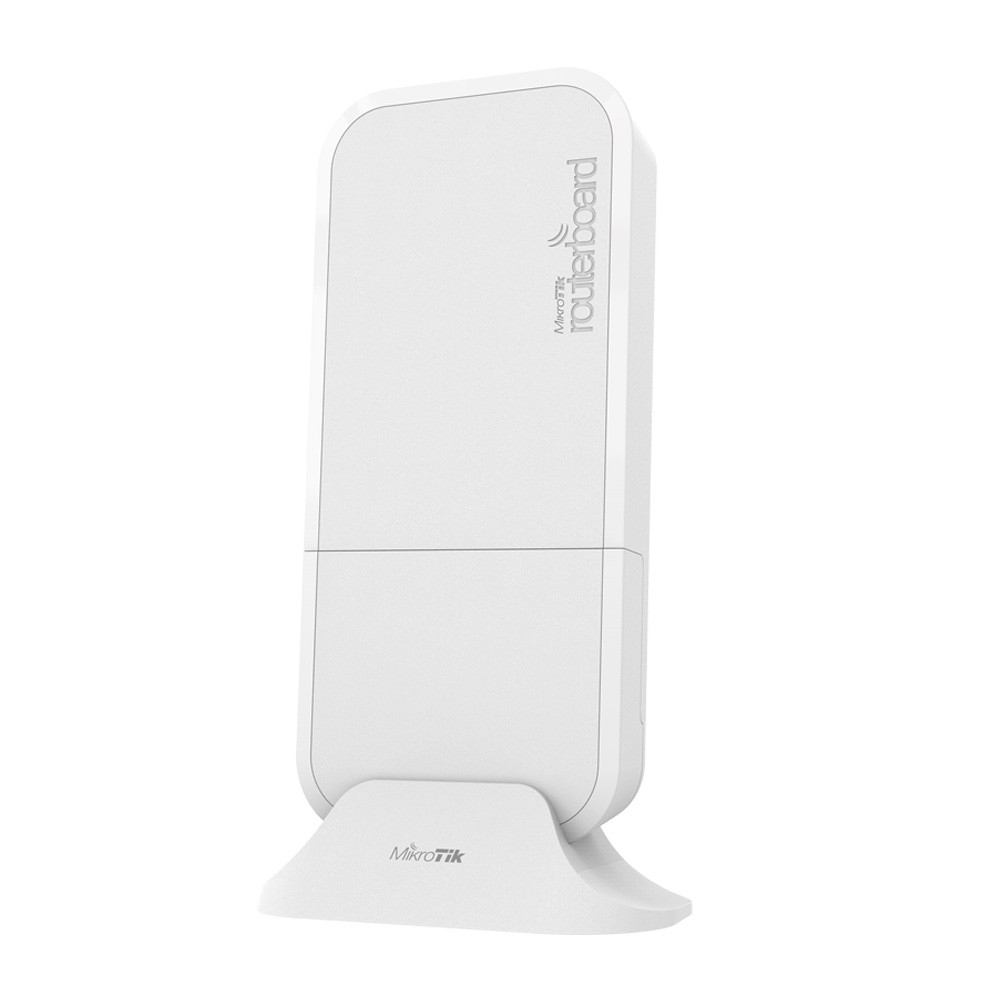

MikroTik RBwAPR-2nD&R11e-LoRa8 2.4GHz wAP w/ 863-870MHz LoRaWAN
Model#: RBwAPR-2nD&R11e-LR8
Sku: IT4216
MSRP: $169.99
In Stock
Your Price: $169.99
MODEL: RBwAPR-2nD&R11e-LR8
An out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we
suggest adding MikroTik LoRa Antenna kit.
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa8 kit, the long awaited LoRa solution for LoRa enthusiasts of any level.
Specifications
- Product code RBwAPR-2nD&R11e-LR8
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- License level 4
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C to 60°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 9-30 V
- Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
- DC jack input Voltage 9-30 V
- Automotive input Voltage 9-30 V
- Max power consumption 7 W
Wireless
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
- 10/100 Ethernet ports 1
Peripherals
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
Datasheet
