RBLHGG-5HPacD2HPnD-XL

Mikrotik

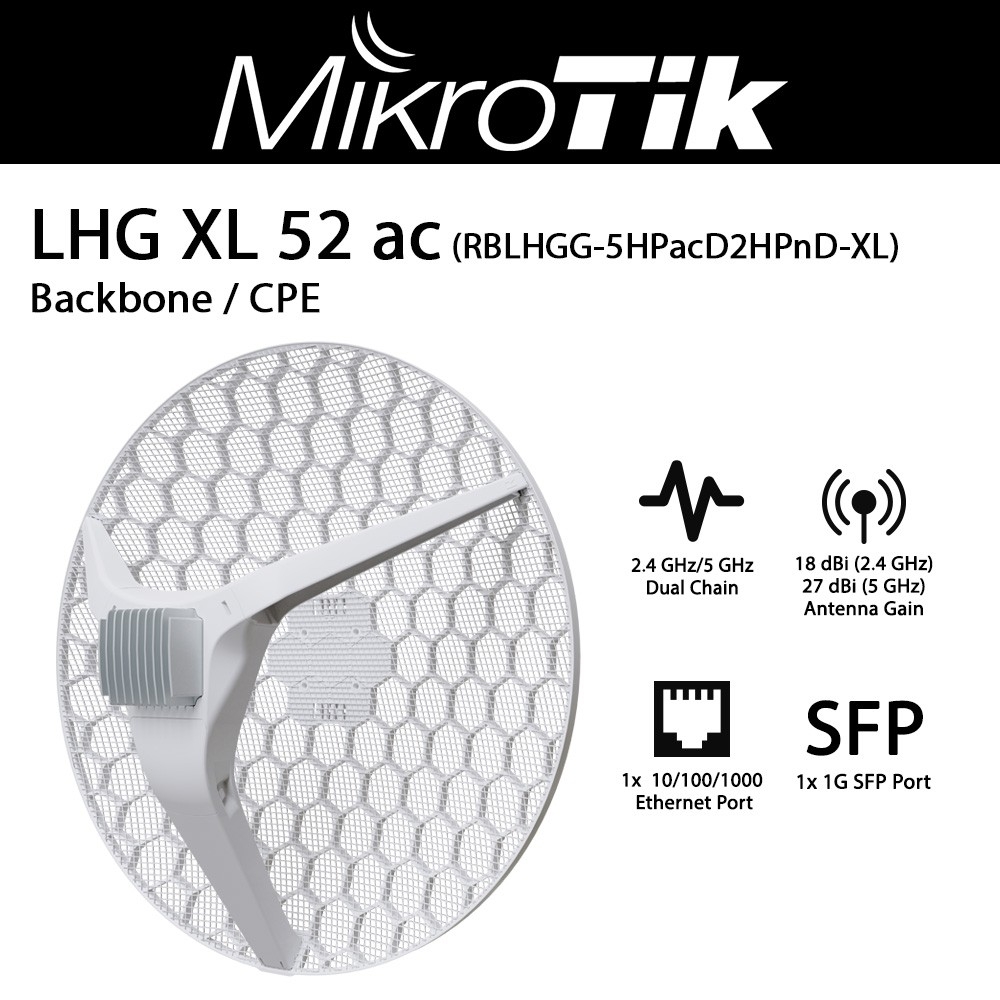

Mikrotik LHG XL 52 ac dual-band Backbone CPE with 27 dBi at 5 GHz 1x Gigabit Port and 1x SFP Port- INTERNATIONAL VERSION


Model#: RBLHGG-5HPacD2HPnD-XL

Sku: IT4218



MSRP: $209.99

In Stock

Your Price: $209.99






MODEL: RBLHGG-5HPacD2HPnD-XL - INTERNAOTIONAL VERSION

Need a reliable and strong long-distance connection that never goes down? The new LHG XL 52 ac also known as RBLHGG-5HPacD2HPnD-XL will provide just that with its dual-band capability. You can easily setup the 5 GHz channel as the main one with speed up to 600 Mbps and use the 2.4 GHz channel as an automatic backup connection with speed up to 260 Mbps.

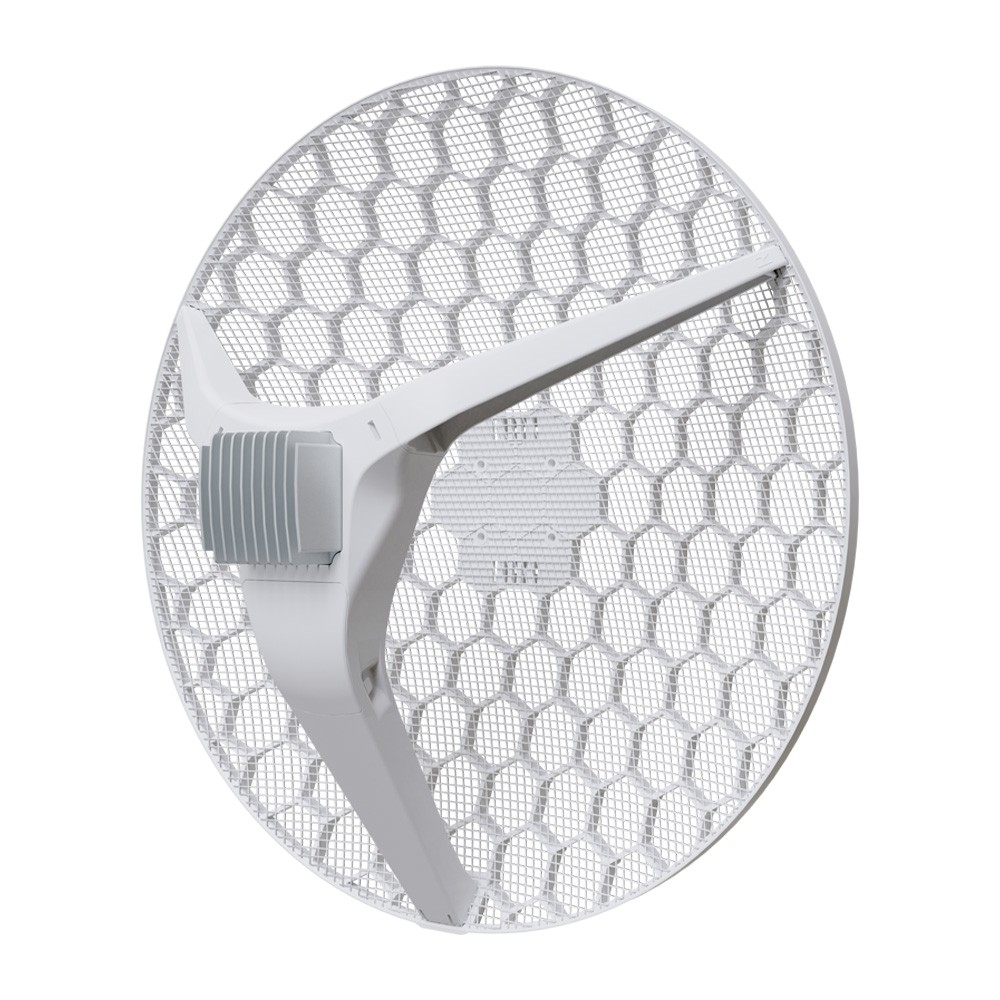

The powerful 27 dBi 5 GHz / 18 dBi 2.4 GHz antenna will provide connection with link distance up to 40 km. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. Antenna element is built into the wireless unit – no loss on cables. This device can handle the heaviest loads thanks to the impressive quad-core CPU and 256 MB of RAM. It has a Gigabit Ethernet port, an SFP port, and it is 802.3af/at compliant – you can power it with the smart switches!

Specifications

  • Architecture    ARM 32bit
  • CPU    IPQ-4018
  • CPU core count    4
  • CPU nominal frequency    716 MHz
  • IPsec hardware acceleration    Yes
  • Dimensions    Ø 550 x 291 mm
  • RouterOS license    3
  • Operating System    RouterOS
  • Size of RAM    256 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • MTBF    Approximately 200'000 hours at 25C
  • Tested ambient temperature    -40°C to 70°C

Powering

  • PoE in    802.3af/at
  • PoE in input Voltage    12-57 V
  • Number of DC inputs    1 (PoE-IN)
  • Max power consumption    18 W
  • Max power consumption without attachments    16 W
  • FAN count    Passive

Ethernet

  • 10/100/1000 Ethernet ports    1

Fiber

  • SFP ports    1

Other

  • PCB temperature monitor    Yes
  • Voltage Monitor    Yes
  • Mode button    Yes

Certification & Approvals

  • Certification    CE, FCC, IC, EAC, ROHS

Datasheet

PDF File Mikrotik LHG XL 52 ac dual-band Backbone CPE with 27 dBi at 5 GHz 1x Gigabit Port and 1x SFP Port- INTERNATIONAL VERSION
