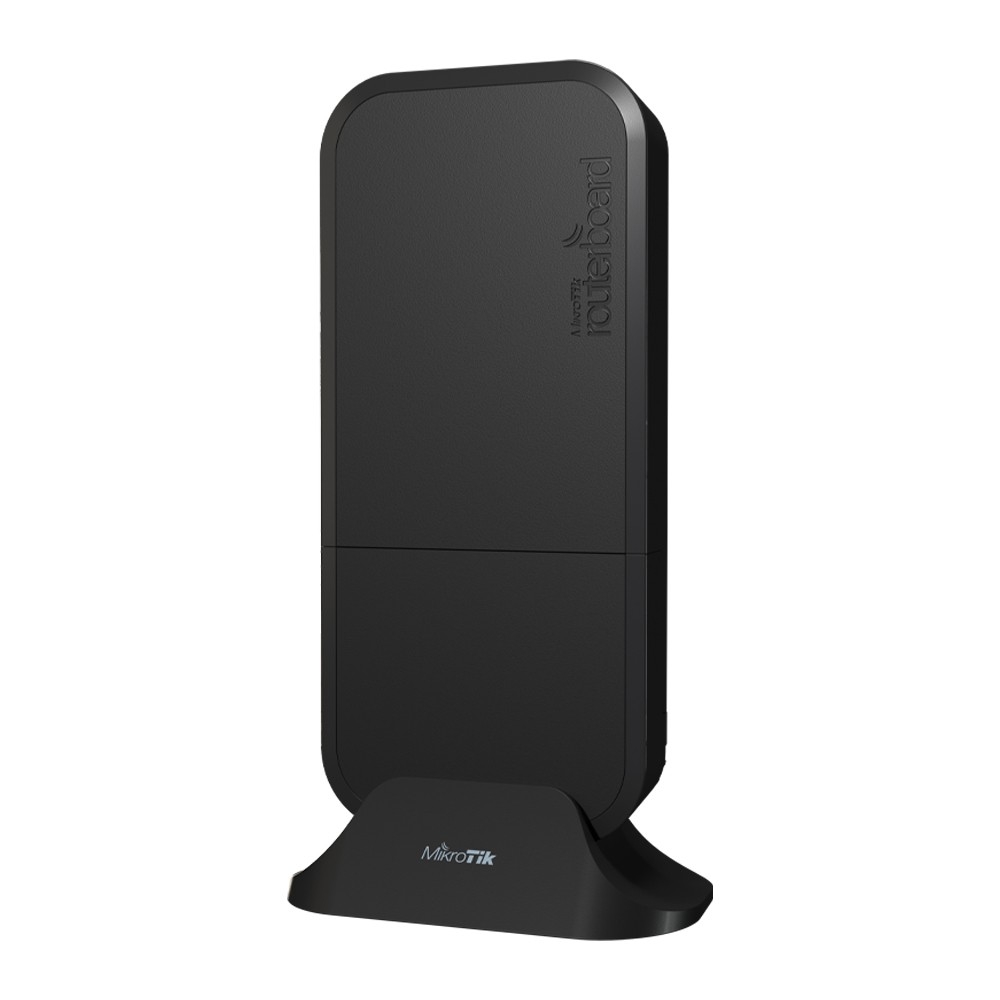

MikroTik RBwAPG-5HacD2HnD-BE 2.4/5GHz wAP ac 128MB Black - INTERNATIONAL VERSION


Model#: RBwAPG-5HacD2HnD-BE

Sku: IT4227



MSRP: $99.99

In Stock

Your Price: $99.99






MODEL: RBwAPG-5HacD2HnD-BE - INTERNATIONAL VERSION

Black Version

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner.

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP ac attracts less attention and blends into any environment.

With the new revision, we have significantly improved the thermal properties of the enclosure – you don’t have to worry about any overheating!

Specifications

  • Product code    RBwAPG-5HacD2HnD-BE
  • Architecture    ARM 32bit
  • CPU    IPQ-4018
  • CPU core count    4
  • CPU nominal frequency    716 MHz
  • Dimensions    185 x 85 x 30 mm
  • RouterOS license    4
  • Operating System    RouterOS
  • Size of RAM    128 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • MTBF    Approximately 100'000 hours at 25C
  • Tested ambient temperature    -40°C to 70°C
  • IPsec hardware acceleration    Yes

Wireless capabilities

  • Wireless 2.4 GHz Max data rate    300 Mbit/s
  • Wireless 2.4 GHz number of chains    2
  • Wireless 2.4 GHz standards    802.11b/g/n
  • Antenna gain dBi for 2.4 GHz    2.5
  • Wireless 2.4 GHz chip model    IPQ-4018
  • Wireless 2.4 GHz generation    Wi-Fi 4
  • Wireless 5 GHz Max data rate    867 Mbit/s
  • Wireless 5 GHz number of chains    2
  • Wireless 5 GHz standards    802.11a/n/ac
  • Antenna gain dBi for 5 GHz    2.5
  • Wireless 5 GHz chip model    IPQ-4018
  • Wireless 5 GHz generation    Wi-Fi 5
  • AC speed    AC1200

Ethernet

  • 10/100/1000 Ethernet ports    2

Powering

  • Number of DC inputs    2 (DC jack, PoE-IN)
  • DC jack input Voltage    10-57 V
  • Max power consumption    10 W
  • Max power consumption without attachments    9 W
  • FAN count    Passive
  • PoE in    802.3af/at
  • PoE in input Voltage    18-57 V

Certification & Approvals

  • Certification    CE, FCC, IC, EAC, ROHS
  • IP    IP54

Datasheet

PDF File MikroTik RBwAPG-5HacD2HnD-BE 2.4/5GHz wAP ac 128MB Black - INTERNATIONAL VERSION
