S53UG+5HaxD2HaxD-TC&EG18-EA

Mikrotik

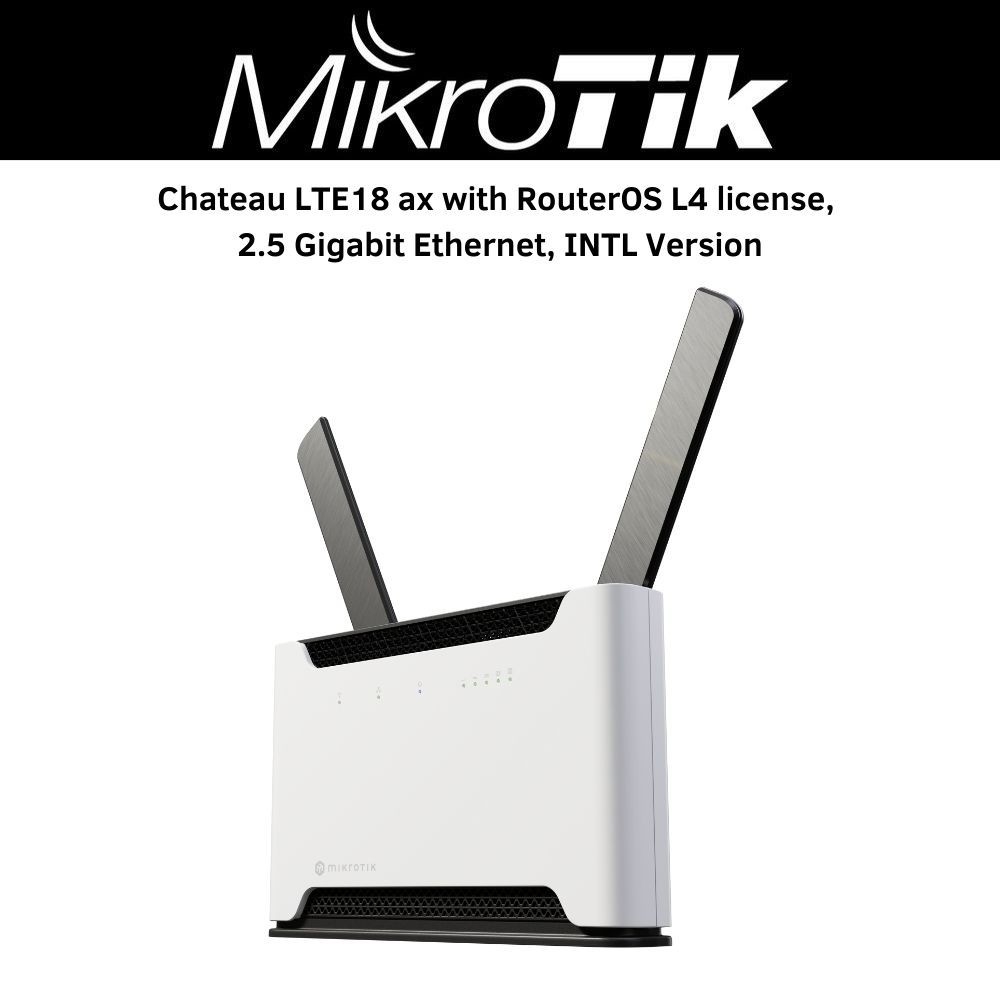

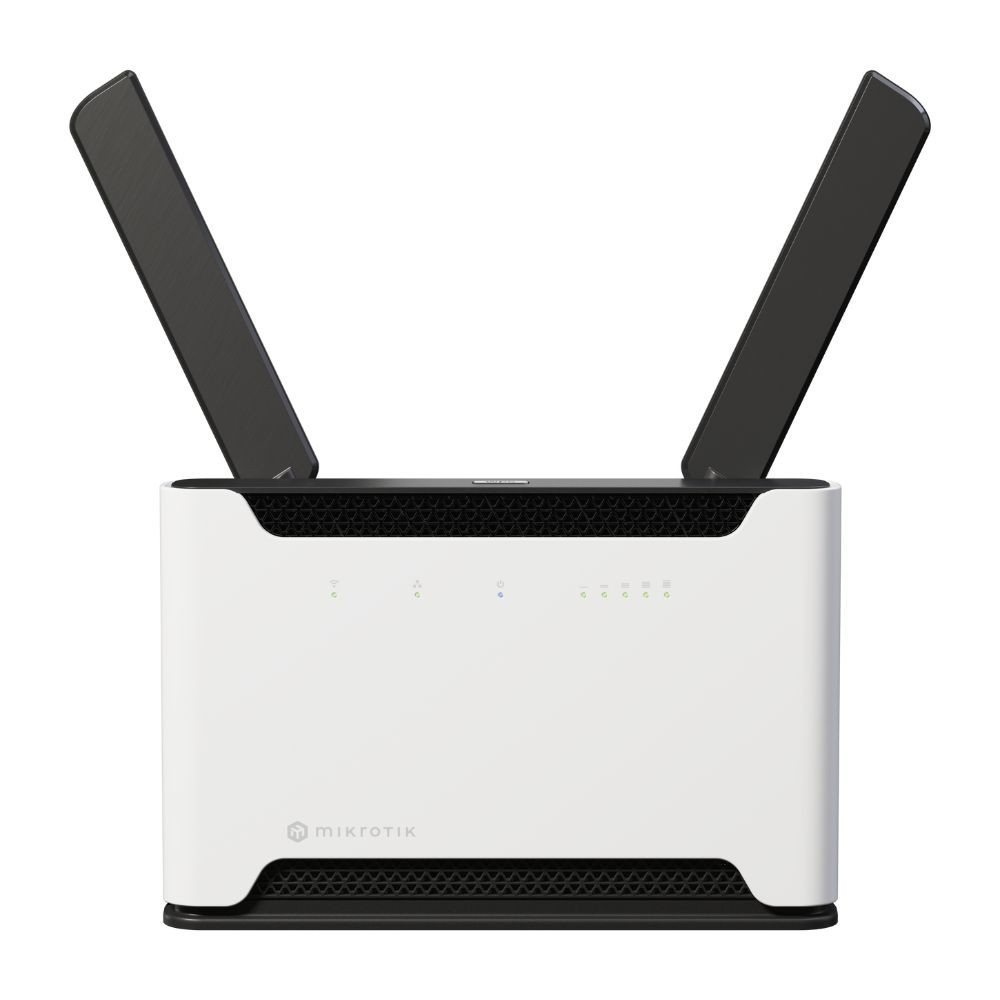

Mikrotik Chateau LTE18 ax with RouterOS L4 license, 2.5 Gigabit Ethernet, INTL Version



Product Highlights
  • Generation 6 version of the Chateau LTE18.
  • Much faster wireless, improved CPU, and now with 2.5 Gigabit Ethernet.
  • With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed.
  • We’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum.
  • Chateau LTE18 ax supports MIMO 4x4 on LTE.
  • Model#: S53UG+5HaxD2HaxD-TC&EG18-EA

    Sku: IT4231



    MSRP: $289.99


    Out of stock

    Your Price: $289.99


    SKU: S53UG+5HaxD2HaxD-TC&EG18-EA                            **INTERNATIONAL VERSION**





    On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.

    The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

    With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

    The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

    Specifications

    Product code    S53UG+5HaxD2HaxD-TC&EG18-EA
    Architecture    ARM 64bit
    CPU    IPQ-6010
    CPU core count    4
    CPU nominal frequency    auto (864 -1800) MHz
    Switch chip model    IPQ-6010
    RouterOS license    4
    Operating System    RouterOS (v7 only)
    Size of RAM    1 GB
    Storage size    128 MB
    Storage type    NAND
    MTBF    Approximately 200'000 hours at 25C
    Tested ambient temperature    -40°C to 65°C
    IPsec hardware acceleration    Yes

    Powering

    Number of DC inputs    1 (DC jack)
    DC jack input Voltage    12-28 V
    Max power consumption    19 W
    Max power consumption without attachments    16 W
    Cooling type    Passive

    Mobile

    3G Category    R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
    3G bands    1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category    18 (1.2Gbps Downlink, 150Mbps Uplink)
    MIMO DL    4x4
    MIMO UL    1x1
    LTE FDD bands    1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
    LTE TDD bands    38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

    Wireless specifications

    Wireless 2.4 GHz Max data rate    574 Mbit/s
    Wireless 2.4 GHz number of chains    2
    Wireless 2.4 GHz standards    802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz    3
    Wireless 2.4 GHz chip model    QCN-5022
    Wireless 2.4 GHz generation    Wi-Fi 6
    Wireless 5 GHz Max data rate    1200 Mbit/s
    Wireless 5 GHz number of chains    2
    Wireless 5 GHz standards    802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz    6
    Wireless 5 GHz chip model    QCN-5052
    Wireless 5 GHz generation    Wi-Fi 6

    Ethernet

    10/100/1000 Ethernet ports    4
    Number of 2.5G Ethernet ports    1

    Peripherals

    Number of SIM slots    1 Modem (Micro SIM)
    Number of USB ports    1
    USB Power Reset    Yes
    USB slot type    USB type A
    Max USB current (A)    1

    Other

    PCB temperature monitor    Yes
    Voltage Monitor    Yes
    Mode button    Yes

    Certification & Approvals

    Certification    CE, EAC, ROHS
    IP    20


    Datasheet

    PDF File Mikrotik Chateau LTE18 ax with RouterOS L4 license, 2.5 Gigabit Ethernet, INTL Version
