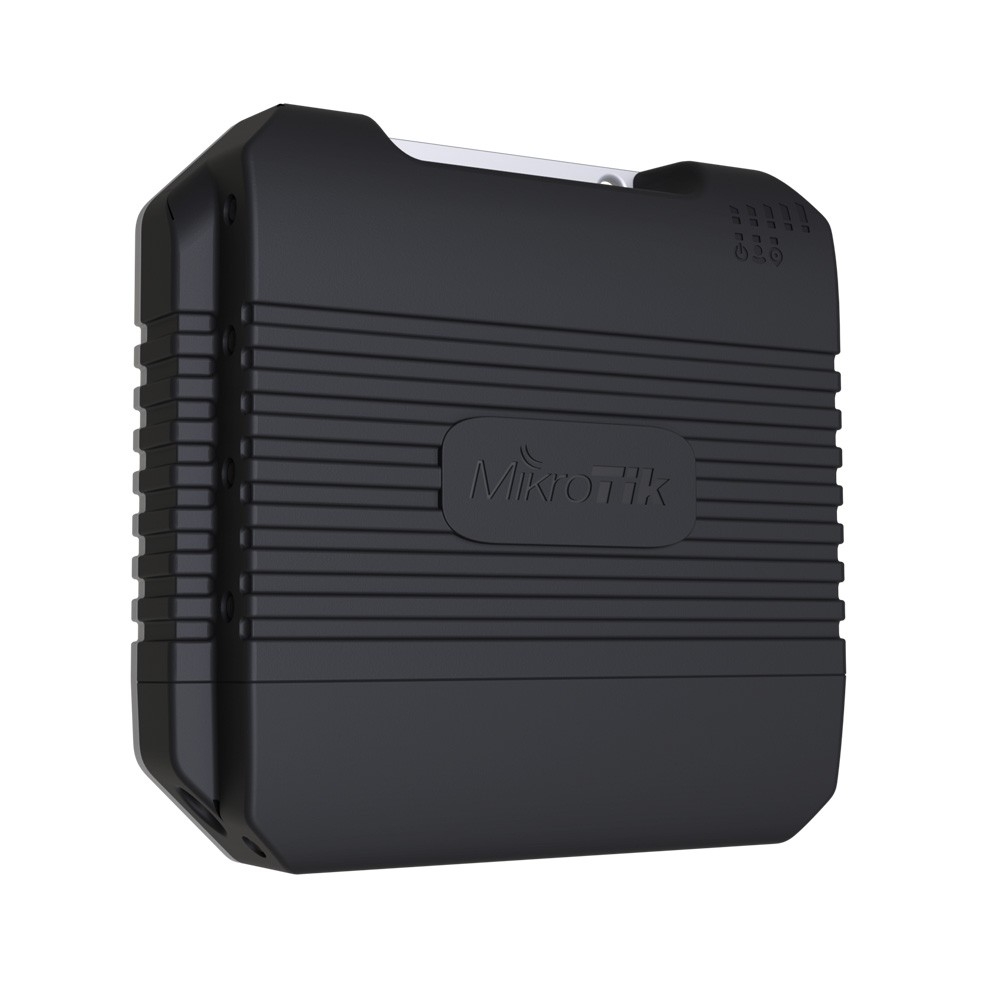

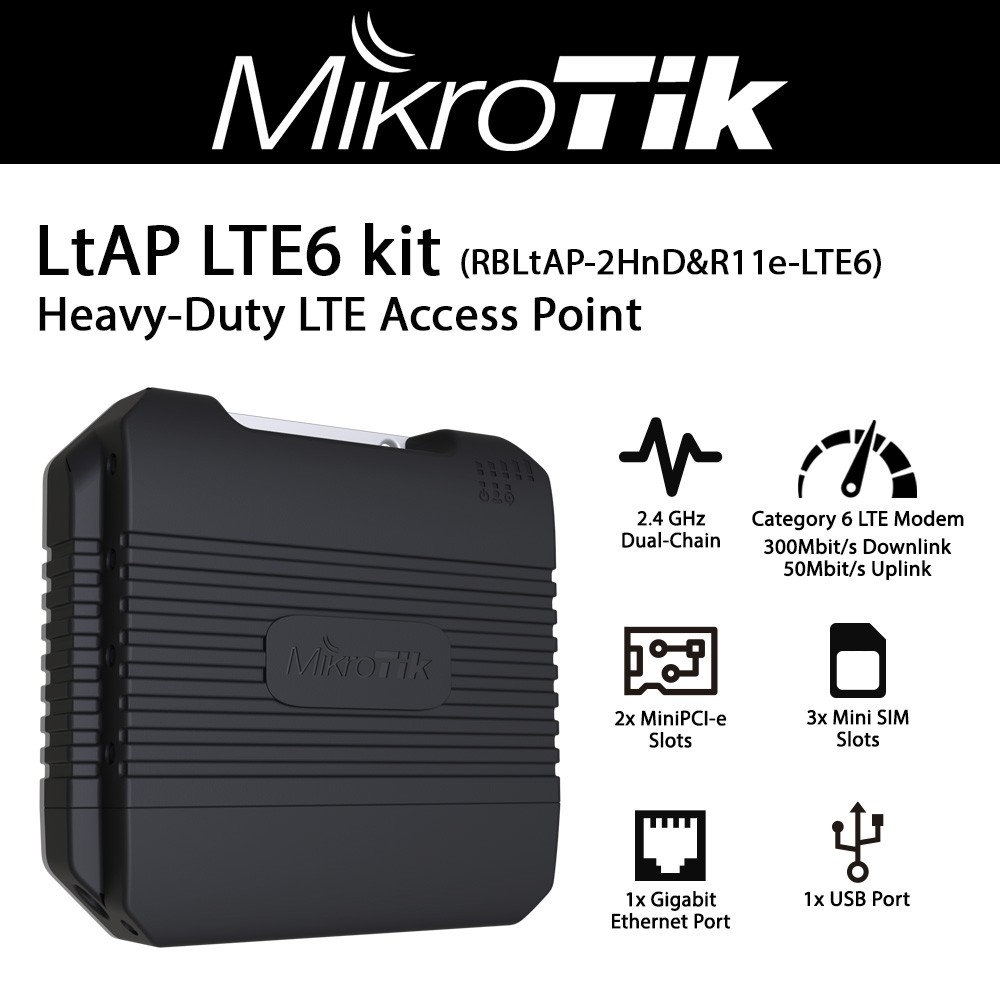

MikroTik RBLtAP-2HnD&R11e-LTE6 2.4GHz LtAP w/ R11e-LTE6
Product Highlights
Model#: RBLtAP-2HnD&R11e-LTE6
Sku: IT4232
MSRP: $299.99
Out of stock
Your Price: $299.99
MODEL: RBLtAP-2HnD&R11e-LTE6
LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!
- Built-in GPS
- Many powering options (DC jack, POE-in, automotive)
- Serial port and full size USB for other devices
- Perfect for cars or outdoor mobile applications
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
Specifications
- Product code RBLtAP-2HnD&R11e-LTE6
- Architecture MMIPS
- CPU MT7621A
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- License level 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -30°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 12-30 V
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 12-30 V
- Automotive input Voltage 12-30 V
- Max power consumption 24 W
- Max power consumption without attachments 12 W
Mobile
- 2G Category Class12
- 2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
Wireless
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports 1
- Peripherals
- Number of SIM slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
Datasheet
