RBOmniTikG-5HacD-US

Mikrotik

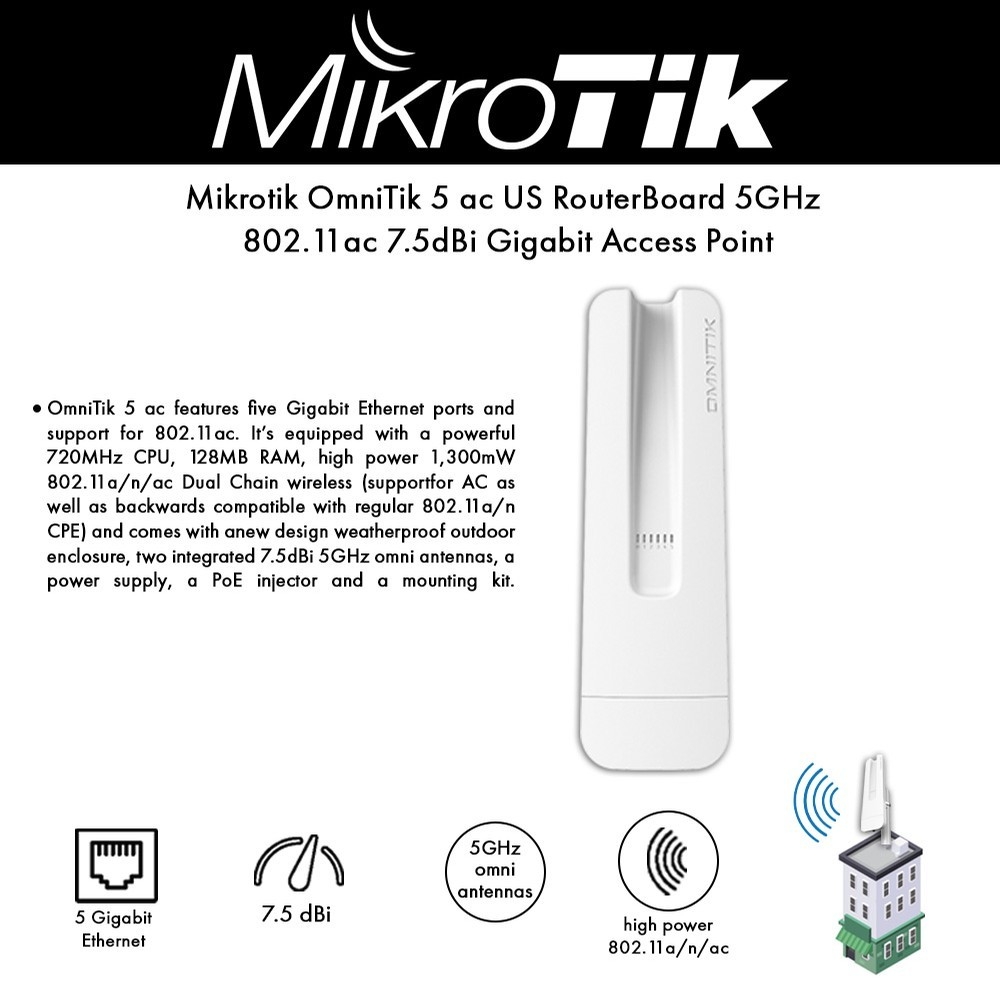

MikroTik RBOmniTikG-5HacD-US 5GHz OmniTik 5 ac 7.5dBi 802.11a/n/ac US VERSION


Product Highlights
  • OmniTIK 5 ac also known as RBOmniTikG-5HacD features five Gigabit Ethernet ports and support for 802.11ac
  • It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE)
  • It comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit
  • Size of RAM: 128 MB, Storage size: 16 MB, PoE in: Passive PoE, PoE in input Voltage: 10-57 V, Number of USB ports : 1, 10/100/1000 Ethernet ports: 5
  • Wireless 5 GHz Max data rate: 867 Mbit/s, Wireless 5 GHz number of chains: 2, Wireless 5 GHz standards: 802.11a/n/ac, Antenna gain dBi for 5 GHz: 7.5

    • Model#: RBOmniTikG-5HacD-US

    Sku: IT4233

    Out of stock

    Your Price: N/A


    MODEL: RBOmniTikG-5HacD-US - US VERSION

    OmniTik 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

    OmniTik 5 PoE ac includes all features listed above and additionally supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.

    • CPU: QCA9557 720 MHz
    • Memory: 128 MB
    • Storage Type: Flash
    • Storage Size: 16 MB
    • Ethernet: Five 10/100/1000 Mbits/s Fast Ethernet port with Auto-MDI/X
    • Wireless: QCA9892, wireless built-in 5 GHz 802.11ac, dual chain
    • Frequency Range: 5170 - 5250 / 5725 - 5835 MHz
    • Power Options: PoE input, passive 12-57 V
    • Consumption: 14 W
    • Antenna Gain: 7.5 dBi
    • Antenna Beam Width: 360°
    • USB: 1 x USB type A
    • Dimensions: 416 x 129 x 58 mm
    • Operating Temperature: -40 to 70°C tested
    • LEDs: 10x LEDs
    • License Level: 4
    • Operating System: RouterOS


    Datasheet

    PDF File MikroTik RBOmniTikG-5HacD-US 5GHz OmniTik 5 ac 7.5dBi 802.11a/n/ac US VERSION
