LDF 5

Mikrotik

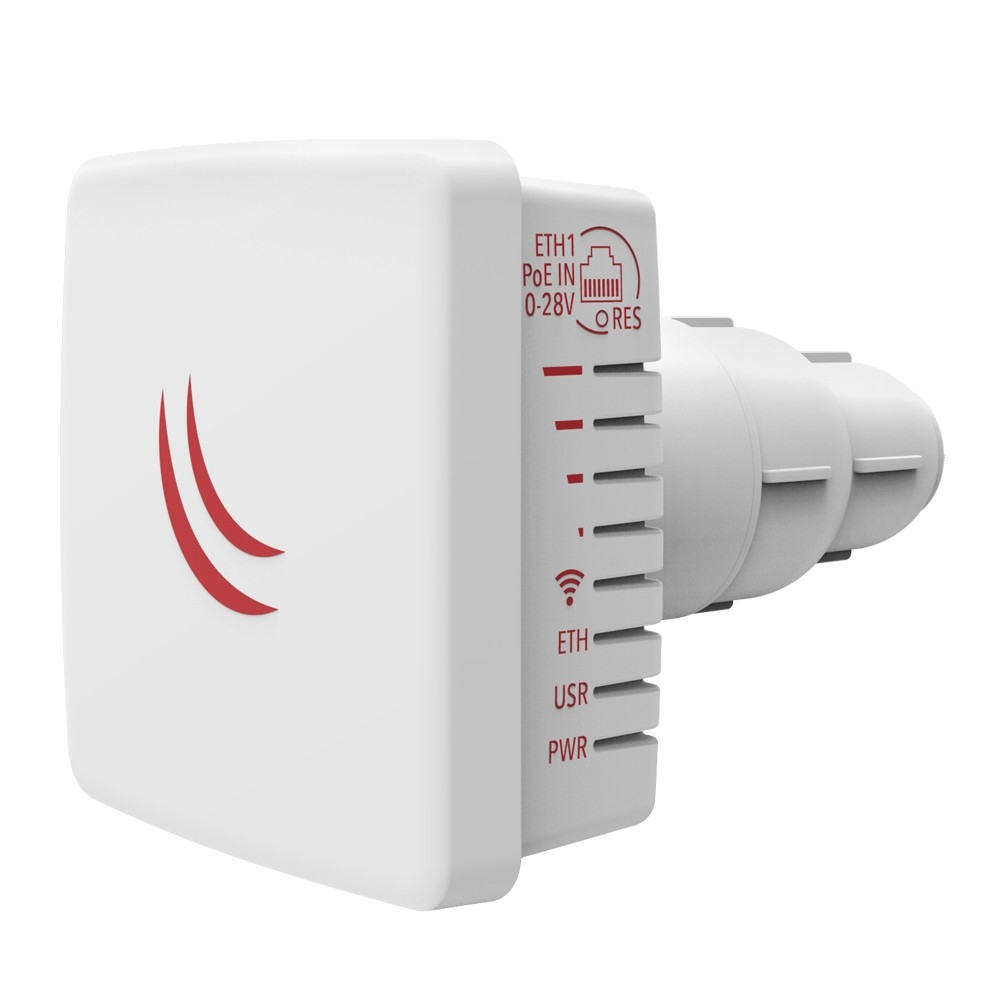

MikroTik RBLDF-5nD 5GHz LDF 9dBi 802.11ac 2x2 L3 - INTERNATIONAL VERSION


Product Highlights
  • The LDF 5 (Lite Dish Feed) also known as RBLDF-5nD is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas
  • The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links
  • The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple
  • Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use
  • Dimensions: 84x84x115mm, PoE in: Passive PoE, Wireless 5 GHz number of chains: 2, Wireless 5 GHz standards: 802.11a/n, Antenna gain dBi for 5 GHz: 9, 10/100 Ethernet ports: 1

    • Model#: LDF 5

    Sku: IT4235



    MSRP: $45.99


    Out of stock

    Your Price: $45.99


    SKU: LDF 5 (RBLDF-5nD)

    Mikrotik LDF 5 RBLDF-5nD Wireless System Dual chain 5GHz for long distance

    The LDF 5 (Lite Dish Feed) also known as RBLDF-5nD - International Version is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

    This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

    Specifications

    • Product code    RBLDF-5nD
    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    84x84x115mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    10-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W

    Wireless specifications

    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    9
    • Wireless 5 GHz chip model    AR9344
    • Wireless 5 GHz generation    Wi-Fi 4

    Ethernet

    • 10/100 Ethernet ports    1

    Certification & Approvals

    • Certification    CE/RED, FCC, IC, EAC, ROHS
