D53G-5HacD2HnD-TC&RG502Q-EA

Mikrotik

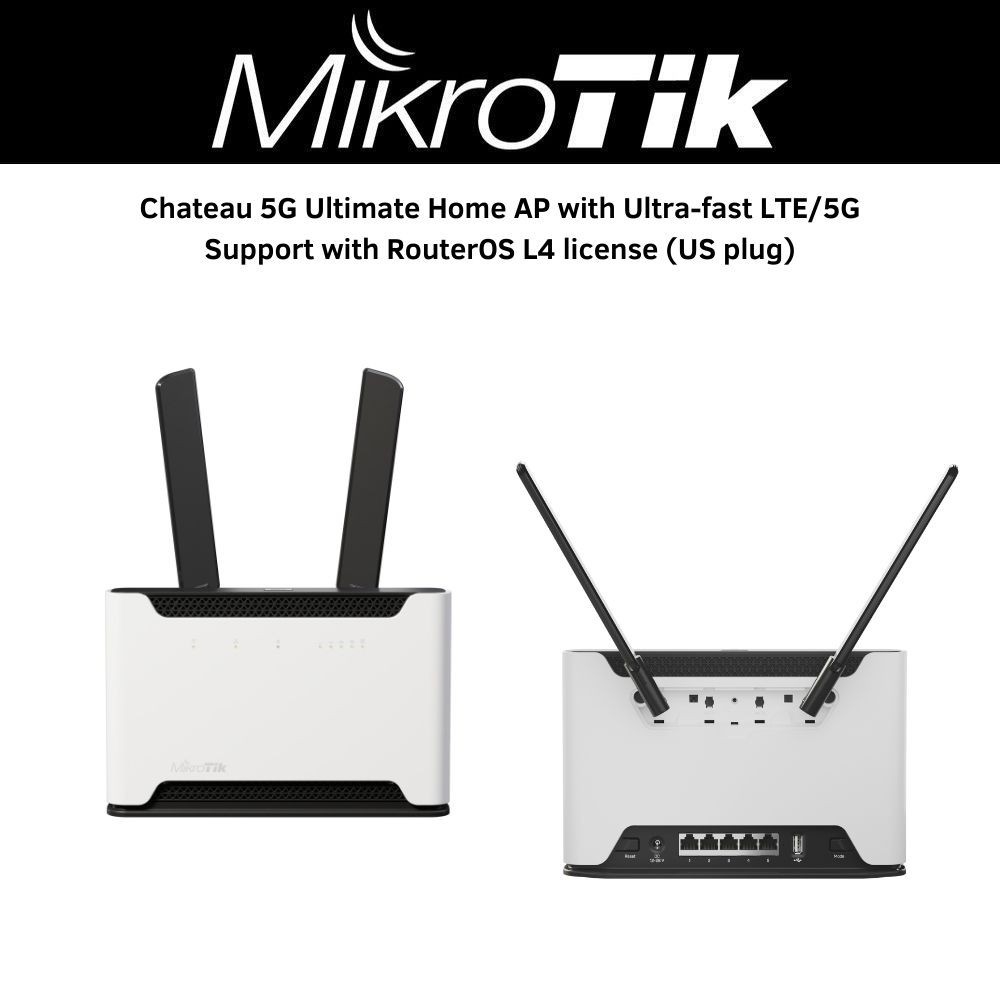

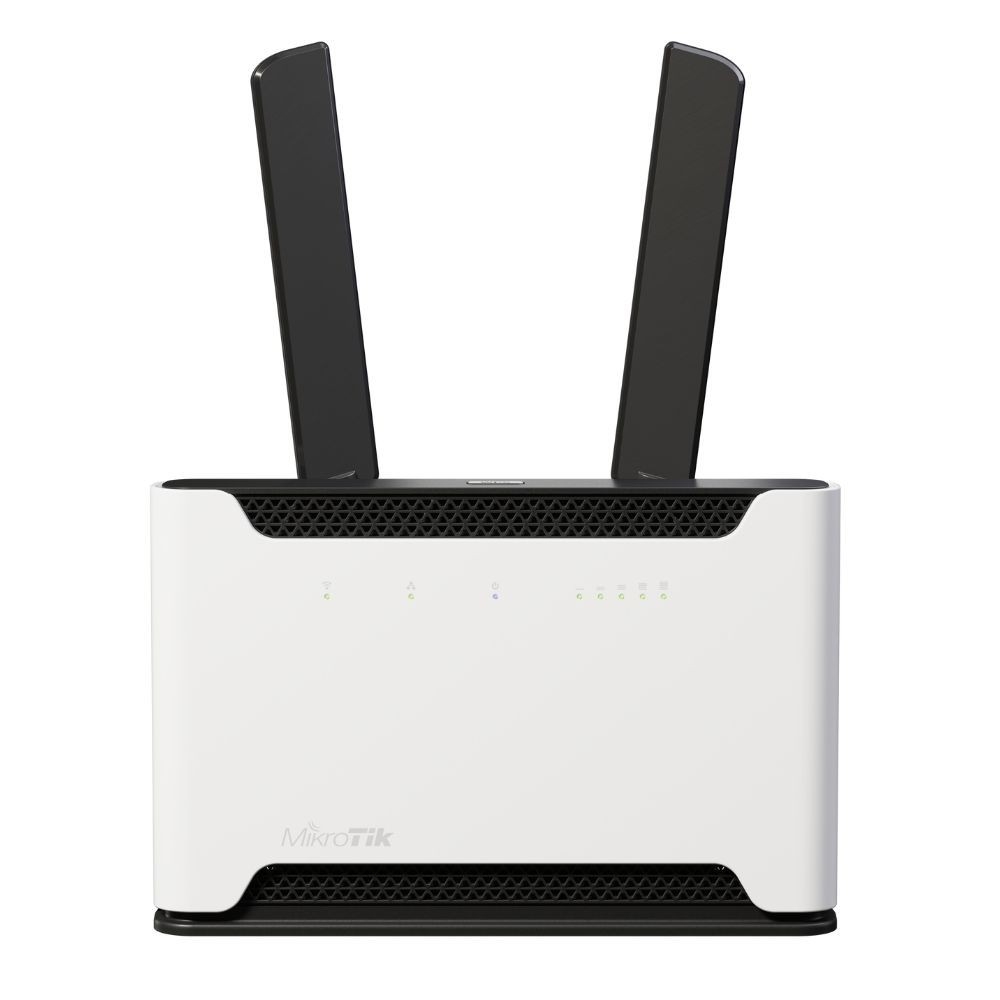

Mikrotik D53G-5HacD2HnD-TC&RG502Q-EA Chateau 5G Ultimate Home AP with Ultra-fast LTE/5G Support with RouterOS L4 license (US plug)


Product Highlights
  • Ultimate home AP with ultra-fast LTE/5G support
  • Chateau 5G s a high-speed, dual-band home access point with LTE/5G support
  • Chateau also features 5 x Gigabit Ethernet ports and a full size USB port
  • Strong dual-chain dual-band 2.4/5 GHz wireless
  • Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary

    • Model#: D53G-5HacD2HnD-TC&RG502Q-EA

    Sku: IT4236



    MSRP: $509.99

    In Stock

    Your Price: $509.99






    SKU: D53G-5HacD2HnD-TC&RG502Q-EA



    Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

    Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

    Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

    Let’s make more clients happy with MikroTik Chateau 5G!

    Specifications

    Product code: D53G-5HacD2HnD-TC&RG502Q-EA
    Architecture: ARM 32bit
    CPU: IPQ-4019
    CPU core count: 4
    CPU nominal frequency: 716 MHz
    Dimensions: 240 x 156 x 44 mm
    RouterOS license: 4
    Operating System: RouterOS (v7 only)
    Size of RAM: 256 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -40°C to 70°C
    IPsec hardware acceleration: Yes

    Powering

    Number of DC inputs: 1 (DC jack)
    DC jack input Voltage: 12-28 V
    Max power consumption: 23 W
    Max power consumption without attachments: 17 W
    Cooling type: Passive

    Mobile

    3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands: 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
    LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
    LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
    LTE TDD bands: 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)
    5G NSA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
    5G NSA TDD bands: 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz)
    5G SA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
    5G SA TDD bands: 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz) / 40 (2300 MHz)

    Wireless specifications

    Wireless 2.4 GHz Max data rate: 300 Mbit/s
    Wireless 2.4 GHz number of chains: 2
    Wireless 2.4 GHz standards: 802.11b/g/n
    Antenna gain dBi for 2.4 GHz: 2
    Wireless 2.4 GHz chip model: IPQ-4019
    Wireless 2.4 GHz generation: Wi-Fi 4
    Wireless 5 GHz Max data rate: 867 Mbit/s
    Wireless 5 GHz number of chains: 2
    Wireless 5 GHz standards: 802.11a/n/ac
    Antenna gain dBi for 5 GHz: 4
    Wireless 5 GHz chip model: IPQ-4019
    Wireless 5 GHz generation: Wi-Fi 5

    Ethernet

    10/100/1000 Ethernet ports: 5

    Peripherals

    Number of SIM slots: 1 Modem (Micro SIM)
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1
    Number of M.2 slots: 1

    Other

    Mode button: Yes

    Certification & Approvals

    Certification: CE, EAC, ROHS

    Wireless specifications

    2.4 GHz              Transmit (dBm)        Receive Sensitivity
    1MBit/s                        25                             -100
    11MBit/s                      25                             -94
    6MBit/s                       26                              -96
    54MBit/s                     23                              -78
    MCS0                         26                              -96
    MCS7                         22                              -73

    5 GHz              Transmit (dBm)    Receive Sensitivity
    6MBit/s                      26                             -96
    54MBit/s                    22                             -80
    MCS0                        26                             -96
    MCS7                        21                             -75
    MCS9                       19                              -70
