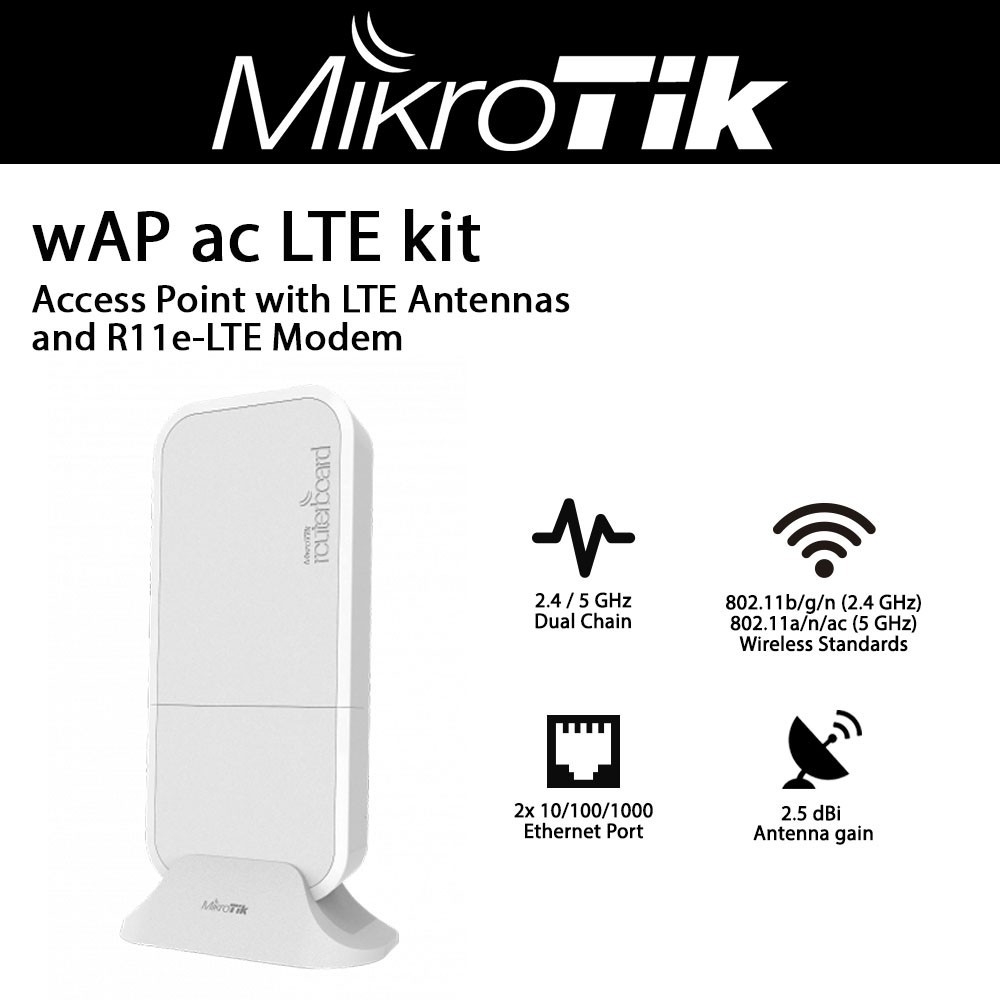

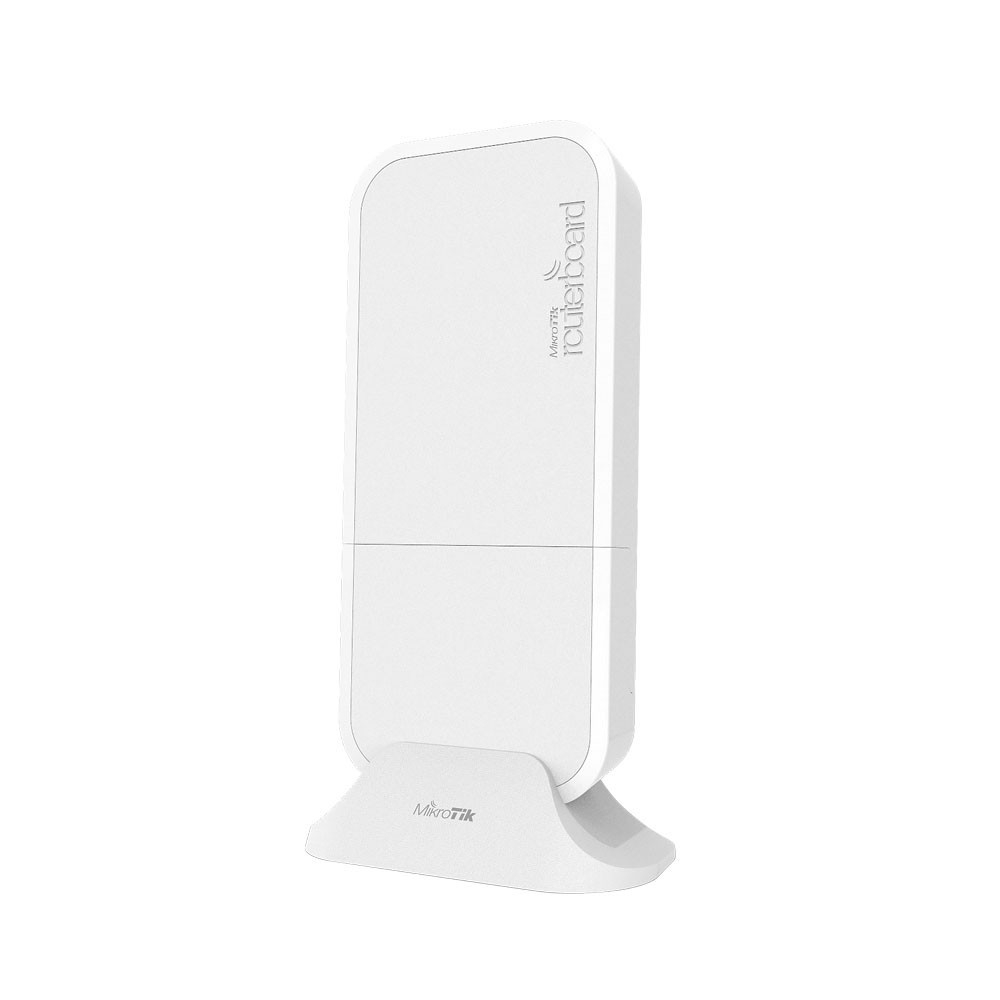

Mikrotik wAP ac LTE kit Dual Band 2.4/5 GHz Wireless Access Point w/ LTE Antennas and R11e-LTE Modem
Product Highlights
Model#: RBwAPGR-5HacD2HnD&R11e-LTE
Sku: IT4242
MSRP: $209.99
In Stock
Your Price: $209.99
MODEL: RBwAPGR-5HacD2HnD&R11e-LTE
The wAP ac LTE also known as RBwAPGR-5HacD2HnD&R11e-LTE is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
RBwAPGR-5HacD2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.
Compatible with ATT, Verizon. DOES NOT WORK WITH T-Mobile, Sprint.
- Architecture ARM 32bit
- CPU IPQ-4018
- CPU core count 4
- CPU nominal frequency 716 MHz
- License level 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -30°C to 60°C
- PoE in 802.3af/at
- PoE in input Voltage 18-57 V
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-57 V
- Max power consumption 14 W
- Max power consumption without attachments 10 W
- 2G Category Class12
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
- 2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- AC speed AC1200
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model IPQ-4018
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2.5
- Wireless 5 GHz chip model IPQ-4018
- Wireless 5 GHz generation Wi-Fi 5
- 10/100/1000 Ethernet ports 2
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE/RED, FCC, IC, EAC, ROHS
Datasheet
