USW-Enterprise-48-PoE

Ubiquiti

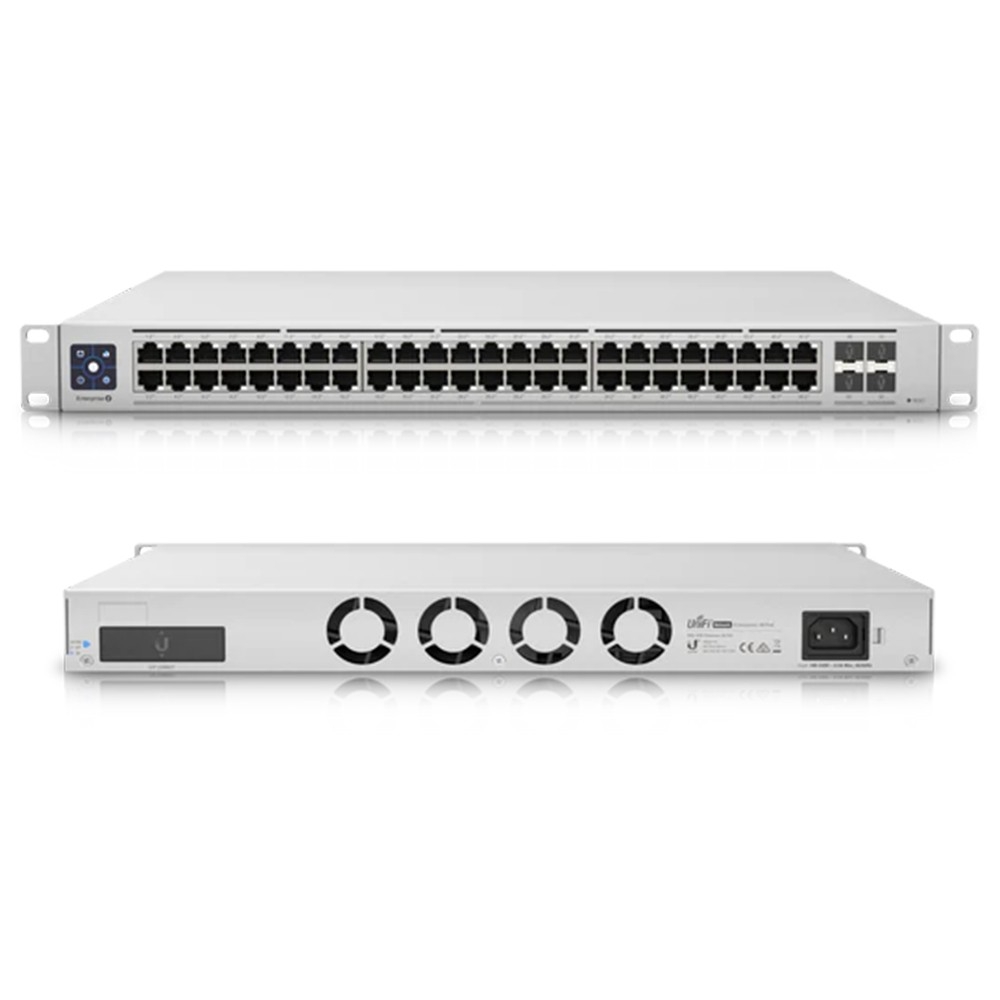

Ubiquiti Networks USW-Enterprise-48-PoE UniFi Switch Enterprise 48 PoE



Product Highlights
  • (48) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input
  • 720W total PoE supply
  • Model#: USW-Enterprise-48-PoE

    Sku: IT4258



    MSRP: $2,439.99


    Out of stock

    Your Price: $2,439.99


    MODEL: USW-Enterprise-48-PoE

    Layer 3, PoE switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports and (4) 10G SFP+ ports.

    The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.



    Features:

    • (1) 1.3" LCM color touchscreen with AR switch management
    • (48) 2.5GbE, 802.3at PoE+ RJ45 ports
    • (4) 10G SFP+ ports
    • (1) USP RPS DC input
    • 720W total PoE supply
    • Layer 3 switching features

    Works with the UniFi Network Application:

    • Centrally manage multiple networks from an intuitive interface
    • Enjoy real-time device insights and deep configuration options
    • Upgrade device firmware remotely
    • Manage network users and guests with ease
    • Personalize the design, architecture, and privacy of guest hotspots
    • Set up devices quickly and manage them on the go with a powerful mobile app

    Specifications USW-Enterprise-48-PoE

    Mechanical
    Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
    Weight Without Mount:6.2 kg (13.67 lb)
    With Mount 6.3 kg (13.89 lb)
    Enclosure Material SGCC Steel
    Mount Material SGCC Steel
    Hardware
    Total Non-Blocking Throughput 160 Gbps
    Switching Capacity 320 Gbps
    Forwarding Rate 238.095 Mpps
    Max Power Consumption (Excluding PoE Output) 150W
    Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
    (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
    Power Supply AC/DC, Internal, 100-240V, 10A Max.
    Management Interface Ethernet In-Band
    Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
    SFP+ Interfaces (4) 1/10G SFP+ ports
    PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    Total Available PoE 720W
    Max. PoE+ Wattage per Port by PSE 34.2W
    Voltage Range 802.3af Mode 44 to 57V
    Voltage Range 802.3at Mode 50 to 57V
    Services SMB Layer 3 PoE Gigabit Ethernet Switch
    ESD/EMP Protection Air:± 16 kV, Contact:± 12 kV
    LCM Display (1) 1.3" LCM color touchscreen
    Bootup Animation Bootup in Progress
    Firmware Upgrade Icon Firmware Upgrading
    Steady White Factory Defaults, Awaiting Adoption
    Steady Blue Device is Adopted
    Button Factory Reset
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 10 - 90% Noncondensing
    Certifications CE, FCC, IC
    LED
    Ethernet White:Link or Activity
    SFP+ White:Link or Activity

    Datasheet

    PDF File Ubiquiti Networks USW-Enterprise-48-PoE UniFi Switch Enterprise 48 PoE
