RBSXTG-5HPnD-SAr2-US

Mikrotik

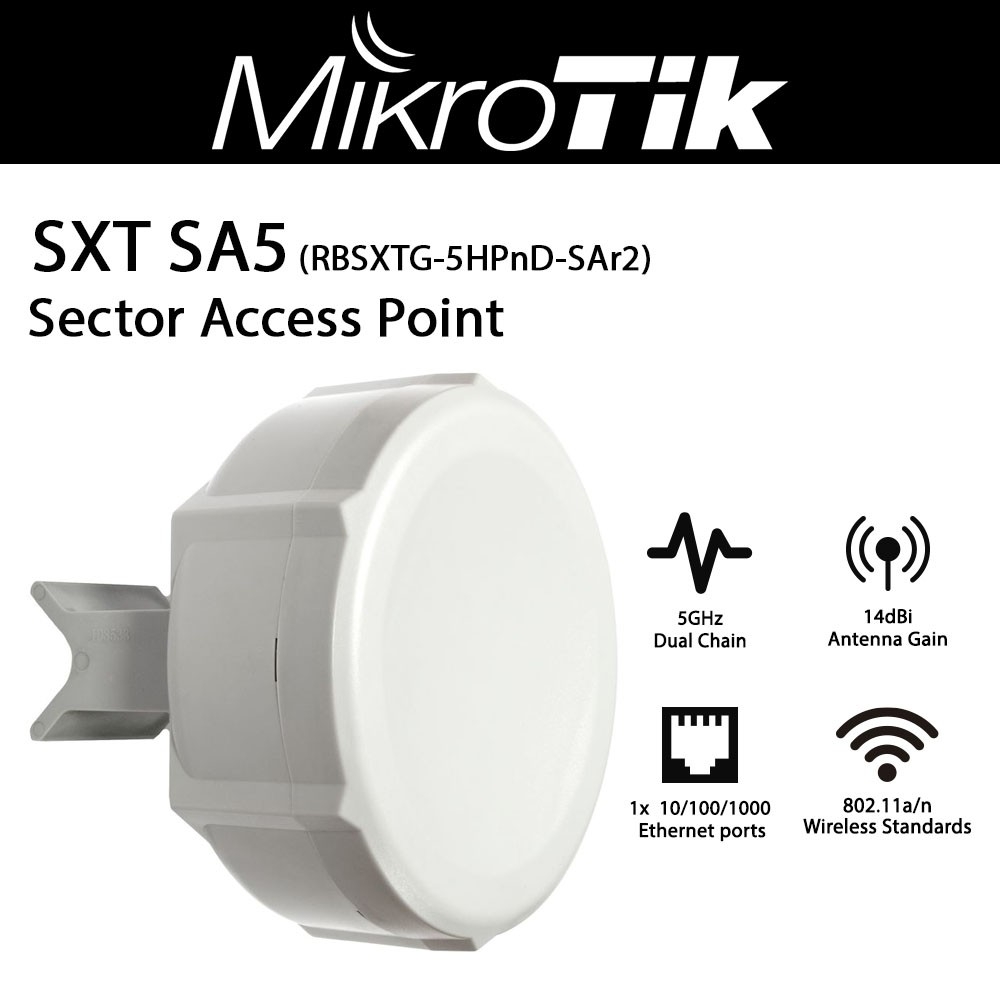

MikroTik RBSXTG-5HPnD-SAr2-US 5GHz SXTG 90° 14dBi Sector 1xGb L4 US


Product Highlights
  • SXT SA5 also known as SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point
  • It has a 90 degree antenna to provide a wider coverage than our previous SXT units
  • Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes
  • The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio
  • Dimensions: 140x140x56mm; Size of RAM: 64 MB; Storage size: 128 MB; PoE in: Passive PoE; Wireless 5 GHz number of chains: 2; Number of USB ports: 1

    • Model#: RBSXTG-5HPnD-SAr2-US

    Sku: IT4279

    Out of stock

    Your Price: N/A


    MODEL: RBSXTG-5HPnD-SAr2-US

    SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a ninety degree antenna to provide a wider coverage than our previous SXT units.

    Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes.

    • AR9344 600MHz CPU
    • 64MB DDR SDRAM onboard memory
    • 10/100/1000 (Gigabit) Ethernet port
    • Onboard dual chain 5GHz 802.11a/n .10kV ESD protection on RF port
    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    140x140x56mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -30°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    6-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    11 W
    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    14
    • Wireless 5 GHz chip model    AR9344
    • Wireless 5 GHz generation    Wi-Fi 4
    • 10/100/1000 Ethernet ports    1
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, FCC, IC, EAC, ROHS

    Datasheet

    PDF File MikroTik RBSXTG-5HPnD-SAr2-US 5GHz SXTG 90° 14dBi Sector 1xGb L4 US
