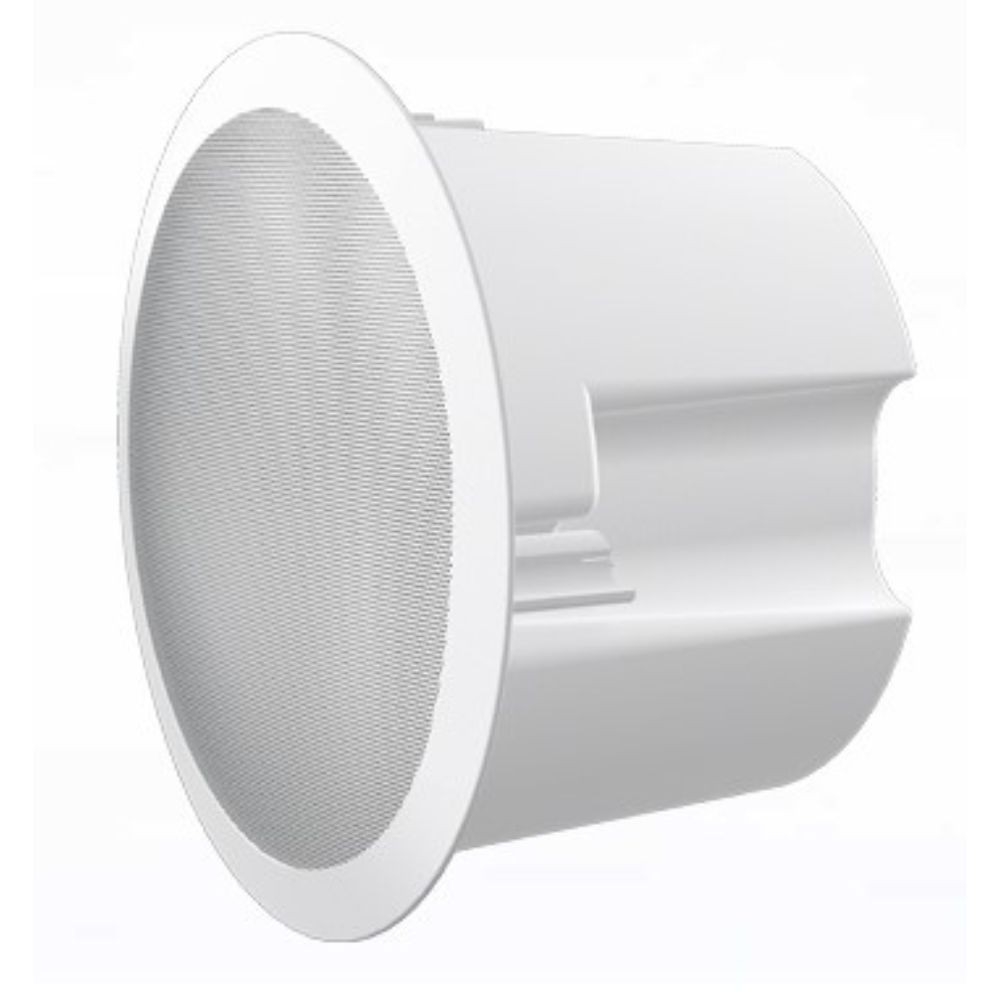

Fanvil FH-S01 IP Speaker
Model#: FH-S01
Sku: IT4413
MSRP: $269.00
In Stock
Your Price: $269.00
SKU: FH-S01
FH-S01 is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.
Highlights
- All in one functionalities with audio codec, digital amplifier and speaker
- High-intelligibility performance with G.722&Opus codecs
- Support up to 10 multicast zones with prioritization
- Audio power up to 20W with built-in class D amplifier
- Support talkback with built-in microphone
- Customize the WAV file for emergency notification and alarming
- Linkage with security alarming devices
- Support remote configuration via web page and auto-provisioning
- 10/100 Mbps Ethernet, Integrated PoE(IEEE 802.3af, class 0)
- Ideal for school, office, station, retail, factory, etc.
Generic
- 2 SIP lines
- Ceiling installation
- MP3 broadcasting
- 10 multicast zones
- Talkback application
- Link with security alarm device
- PoE enabled
- Support DC power supply
Device Functions
- Auto-answering
- Network time synchronization
- Web page volume adjustment
- Dynamic multicast function
- Support recording (through server)
- Action URL / Active URI
Audio
- Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K,G.722, Opus
- Speaker:
Frequency response:100-20KHz
Sensitivity:89dB±3dB 1m/1W
Impedance:8Ω
Audio Power: PoE/10W,12V/10W,18V/15W,24V/20W ; related to power supply voltage. - Web management portal
- Web-based Packet-dump
- Configuration export / import
- Firmware upgrade
- Syslog
Physical Specifications
- DC port x1: DC power input
Port:2 Pin terminal socket - RJ45 port x1: connect the network
Power over Ethernet(IEEE 802.3af, class 0) - Short circuit input and output port x1(built in relay)
Relay:MAX DC30V/2A - Mic:
Omni-Directional
Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage2V
Network
- 10/100 Mbps
- Network mode:IPv4/IPv6/IPv4&IPv6
- IP Setting:Static IP / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN ? DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPnP/TR-069
Port:terminal socket - Blue LED x1:Power status
- DC power input: DC 12~24V/2A
- Working temperature: -20?~ 50?
- Storage temperature: -30?~ 60?
- Working humidity: 10~95%
- Installation: Ceiling-mounted
- Color: White
- Device overall dimensions: 238.5mm x 238.5mmx 148.3mm
- Device back box dimensions: 202.5mmx 202.5mmx 139mm
- Gift box dimensions: 270mm x 270mmx 188mm
- Outer CTN dimensions: 560mm x 283mmx 410mm(10PCS)
