USW-PRO-AGGREGATION

Ubiquiti

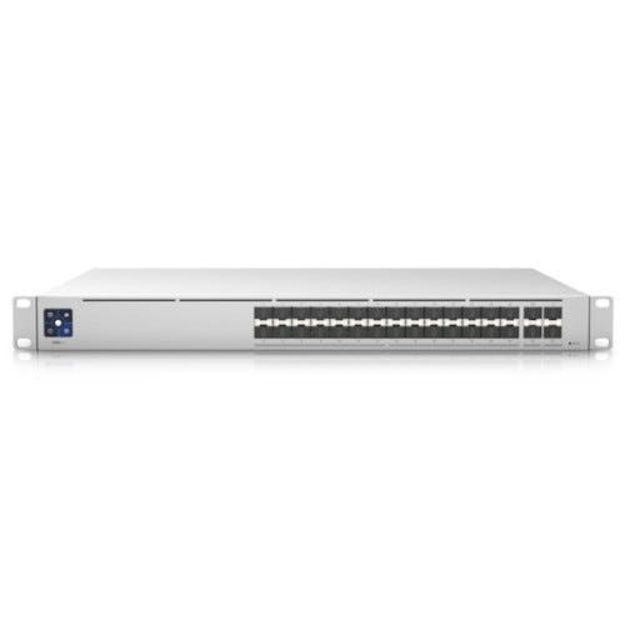

Ubiquiti Unifi USW-PRO-AGGREGATION Switch Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports



Product Highlights
  • (28) 10Gbps SFP+
  • (4) 25Gbps SFP28
  • 760Gbps switching capacity
  • (1) 1.3
  • (1) Backup 12V DC input connector, SmartPower RPS
  • Model#: USW-PRO-AGGREGATION

    Sku: IT4496



    MSRP: $1,169.99

    In Stock

    Your Price: $1,169.99






    MODEL: USW-Aggregation-Pro

    Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports, Managed with the UniFi Network application: Version 6.1.25 and later

    Build and expand your network with the UniFi ® Switch, part of the Ubiquiti Networks ® UniFi Enterprise System. The UniFi Switch, model USW-Aggregation-Pro, is a congurable 10G ber Layer-3 switch. It offers 28 10G SFP+ ber links to your devices and 4 25G SFP28 ber uplink options to your enterprise network.

    The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for quick diagnosis.

    Managed and congured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Controller and mobile app allow admins to congure and monitor virtually all of the switch features in a graphical user interface from anywhere.

    RPS DC inputis a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input. When the switch's internal PSU is off, the Switch function can keep working by backup power from the USP-RPS input port.



    Features:

    • (1) 1.3” LCM color touchscreen with AR switch management
    • (28) 10G SFP+ ports
    • (4) 25G SFP28 ports
    • (1) USP RPS DC input
    • 760 Gbps switching capacity
    • Layer 3 switching features

    Works with the UniFi Network Application :

    • Centrally manage multiple networks from an intuitive interface
    • Enjoy real-time device insights and deep configuration options
    • Upgrade device firmware remotely
    • Manage network users and guests with ease
    • Personalize the design, architecture, and privacy of guest hotspots
    • Set up devices quickly and manage them on the go with a powerful mobile app

    Specifications USW-Pro-Aggregation

    Mechanical
    Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
    Weight Without Mount: 4.6 kg (10.14 lb) With Mount: 4.7 kg (10.36 lb)
    Enclosure Material SGCC Steel
    Hardware
    Total Non-Blocking Throughput 380 Gbps
    Switching Capacity 760 Gbps
    Forwarding Rate 565.44 Mpps
    Max. Power Consumption 100W
    Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz, (1) USP-RPS DC input, 11.5VDC, 8.7A
    Power Supply AC/DC, Internal, 100W
    Network Interface (28) 1/10 Gbps SFP+ Ethernet (4) 1/10/25 Gbps SFP28 Ethernet* *The four SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
    LCM Display (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
    LEDs SFP28/SFP+: White, Link and Activity
    Management Interface Ethernet In-Band
    Modes SMB Layer 3 10/25 G Fiber Switch
    ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 10 - 90% Noncondensing
    Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti Unifi USW-PRO-AGGREGATION Switch Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports
