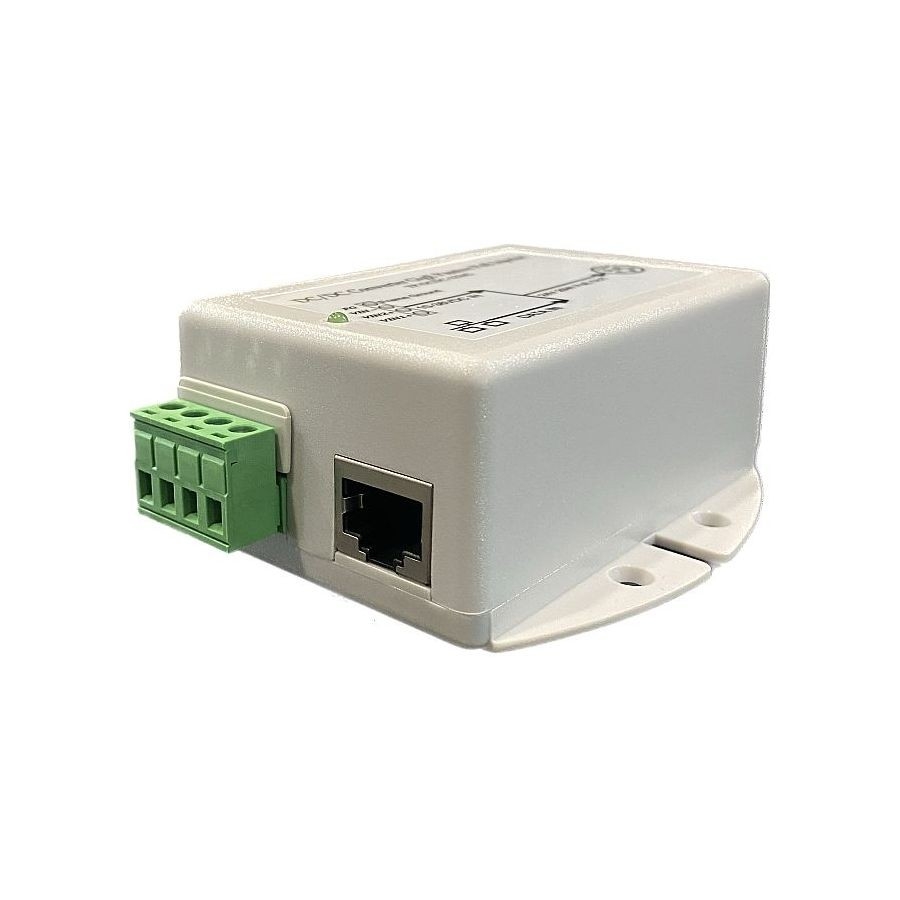

MODEL: TP-DCDC-1248GAD

Features – DC to DC Converter

• DC to DC Converter
• Input Voltage 9-36VDC
• IEEE 802.3af Compliant 17W Mode A PoE Output
• Dual Inputs for Connecting 2 Power Sources
• Integrated 10/100/1000MB PoE Inserter
• Low Self Consumption Power
• Short Circuit, Over Current and Reverse/Over Voltage Protect
• High Temperature Operation
• Compact Size – Maximize Available Space

Applications

• 12V / 24V Battery Systems, Vehicle Applications
• Wireless Access Points and Client Devices
• IP Phones and Security Camera Systems
• PoE Lighting Applications

Description

The TP-DCDC-1248GAD Gigabit DC to DC converters / PoE Injectors offered by Tycon Power® are a low cost and high efficiency solution for those requiring IEEE802.3af Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated Mode A PoE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected, ensuring stable and reliable performance.

These converters feature two isolated inputs for connecting two power sources, such as a primary and backup power source, providing redundancy and ensuring continuous operation even if one power source fails. They are housed in a durable metal enclosure, making them suitable for industrial applications and harsh environments.

These devices accept gigabit data-in through a shielded RJ45 jack and provide gigabit data-out and PoE power through the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1, 2 (V+) and 3, 6 (V-), ensuring efficient power delivery to connected devices. The units have various protections for surge, short circuit, and overload, enhancing their durability and safety. They can deliver power outputs up to 17W, making them suitable for a wide range of applications.

Ideal for use in remote locations, industrial settings, and other challenging environments, the TP-DCDC-1248GAD provides a reliable and cost-effective solution for powering devices. Its advanced design ensures stable performance and reliable power delivery, making it a preferred choice for professionals seeking high-quality PoE solutions. Whether used in telecommunications, remote monitoring systems, or other critical applications, this DC to DC converter offers peace of mind and uninterrupted power and data transmission.
