TP-POE-HP-48G-RC

Tycon Power Systems

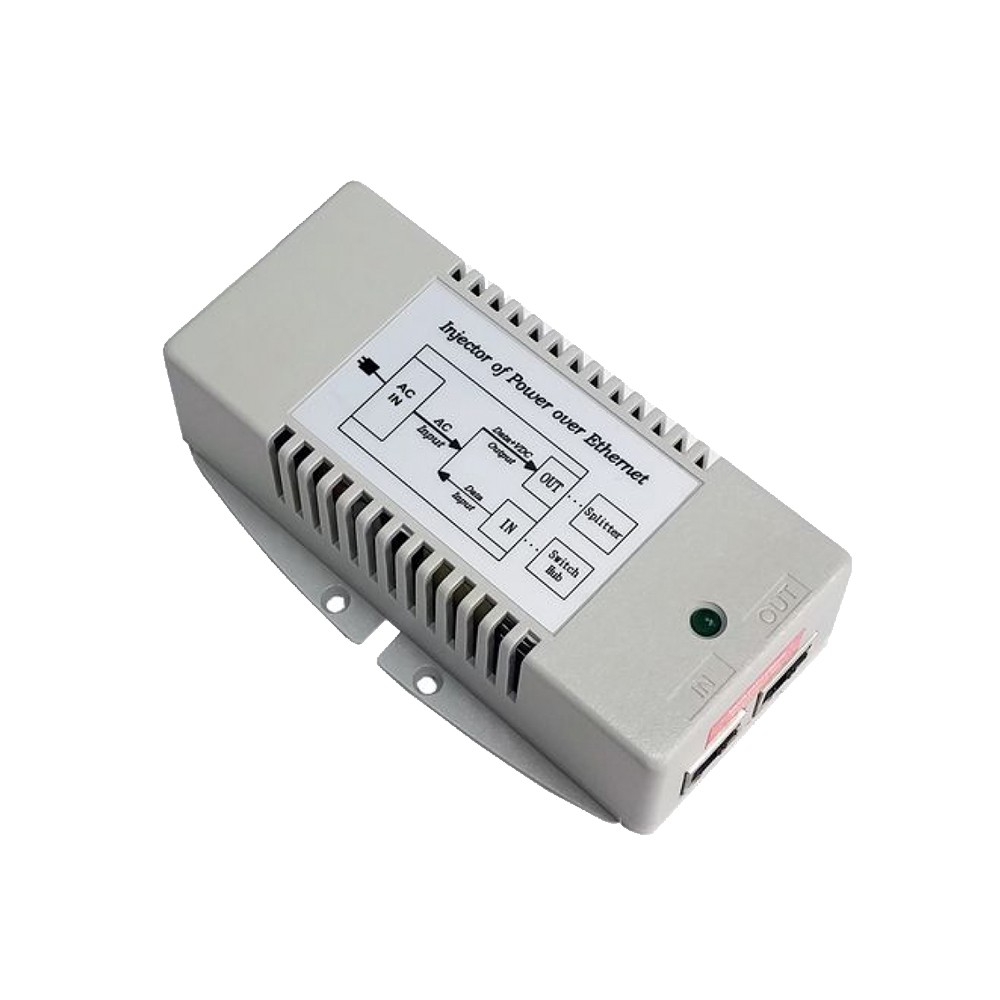

Tycon Power TP-POE-HP-48G-RC 100-240VAC Input, 48V Gigabit Passive PoE Injector, 50W, with US Power Cord



Product Highlights
  • • Remotely Power Equipment thru CAT5 Cable up to 100m
  • • Built in Ethernet and AC Surge Protection
  • • Autoranging Switching Power Supply
  • • Short Circuit, Over Current and Over Voltage Protection
  • • High Power, 60W, Passive PoE
  • Model#: TP-POE-HP-48G-RC

    Sku: IT4698



    MSRP: $69.99

    In Stock

    Your Price: $69.99






    MODEL: TP-POE-HP-48G-RC

    Features
    • Remotely Power Equipment thru CAT5 Cable up to 100m
    • Built in Ethernet and AC Surge Protection
    • Autoranging Switching Power Supply
    • Short Circuit, Over Current and Over Voltage Protection
    • High Power, 60W, Passive PoE
    • 10/100/1000Mb Compatible
    • High Temperature Industrial Operation
    • Compact size – Floor / Desktop / Wall Mount / DIN Rail Mount
    • I.T.E. Power Supply, UL Listed

    Applications
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems

    The TP-POE-HP-48G-RC is a special Power over Ethernet inserter offered by Tycon Power which has a regulated 48VDC PoE output. Normally, higher power inserters have an output voltage of 56V. This inserter is regulated to 48VDC PoE output to be compatible with devices that are sensitive to the higher voltages.

    These are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).

    The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 48VDC 60W with load regulation within 5%. They have various protections for surge, short circuit, overload and overvoltage.

    SHIP WEIGHT 0.85 lbs
    SHIP DIMENSIONS 5 × 3 × 6 in
    INPUT VOLTAGE

    OUTPUT VOLTAGE/TYPE

    OUTPUT POWER

    60W

    NETWORK SPEED

    Gigabit

    TEMPERATURE RANGE

    -30C to +60C


    Datasheet

    PDF File Tycon Power TP-POE-HP-48G-RC 100-240VAC Input, 48V Gigabit Passive PoE Injector, 50W, with US Power Cord
