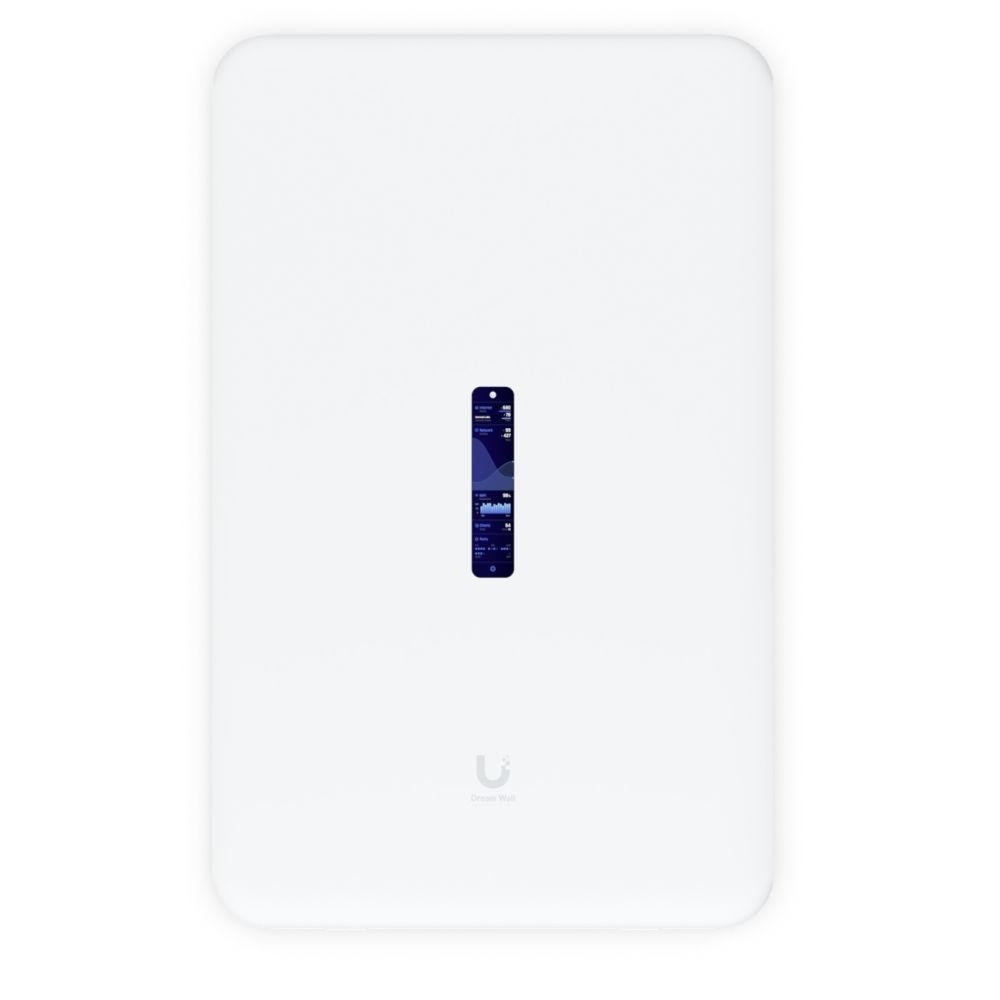

Ubiquiti Networks UDW-US DreamWall US
Product Highlights
Model#: UDW-US
Sku: IT4733
MSRP: $1,299.00
In Stock
Your Price: $1,299.00
MODEL: UDW-US
Wall-mountable UniFi Cloud Gateway with a built-in WiFi 6 access point, PoE switching, and full UniFi application support.
Integrated Enterprise WiFi6 (4x4 MIMO)
Full UniFi OS and UniFi application support
3.5+ Gbps routing
(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
4.7" touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card
| Mechanical | |
|---|---|
| Dimensions | 549 x 342 x 62 mm (21.6 x 13.5 x 2.4") |
| Weight | 8.6 kg (19 lb) |
| Enclosure materials | Polycarbonate, galvanized steel, aluminum alloy |
| Mount material | Stainless steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card |
| Expansion slot | Micro SD memory card* *Requires a memory card with at least 128 GB of storage. |
| Management interface | Ethernet Bluetooth WiFi |
| Networking interface | (17) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface | (1) LAN: 10G SFP+ port (1) WAN: 10G SFP+ port |
| PoE interface | (4) PoE (Pair A 1, 2+; 3, 6-) (4) PoE+ (Pair A 1, 2+; 3, 6-) (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Power method | Universal AC input 100—240V AC, 7A Max., 50/60Hz |
| Power supply | (2) Hot-Swappable AC/DC 550W PSU* *Comes with (1) pre-installed PSU. |
| Max. power consumption | 532W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| Max. TX power 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz |
300 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
5.9 dBi 6 dBi |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| LCM display | (1) 4.7" touchscreen |
| Button | Factory reset |
| Mounting | Wall mount (included) |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and UID VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| LEDs | |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| PSU | Blue: ready Amber: failure |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
