U6-Enterprise-IW

Ubiquiti


Ubiquiti Networks U6 Enterprise In-Wall - International Version



Product Highlights
  • 115 m² (1,250 ft²) coverage
  • 600+ connected devices
  • WiFi6E (4x4 MIMO)
  • Powered using PoE+/PoE++*
  • (4) GbE ports with (1) PoE output
  • Model#: U6-Enterprise-IW

    Sku: IT4751



    MSRP: $389.00


    Out of stock

    Your Price: $389.00


    MODEL: U6-Enterprise-IW - International Version

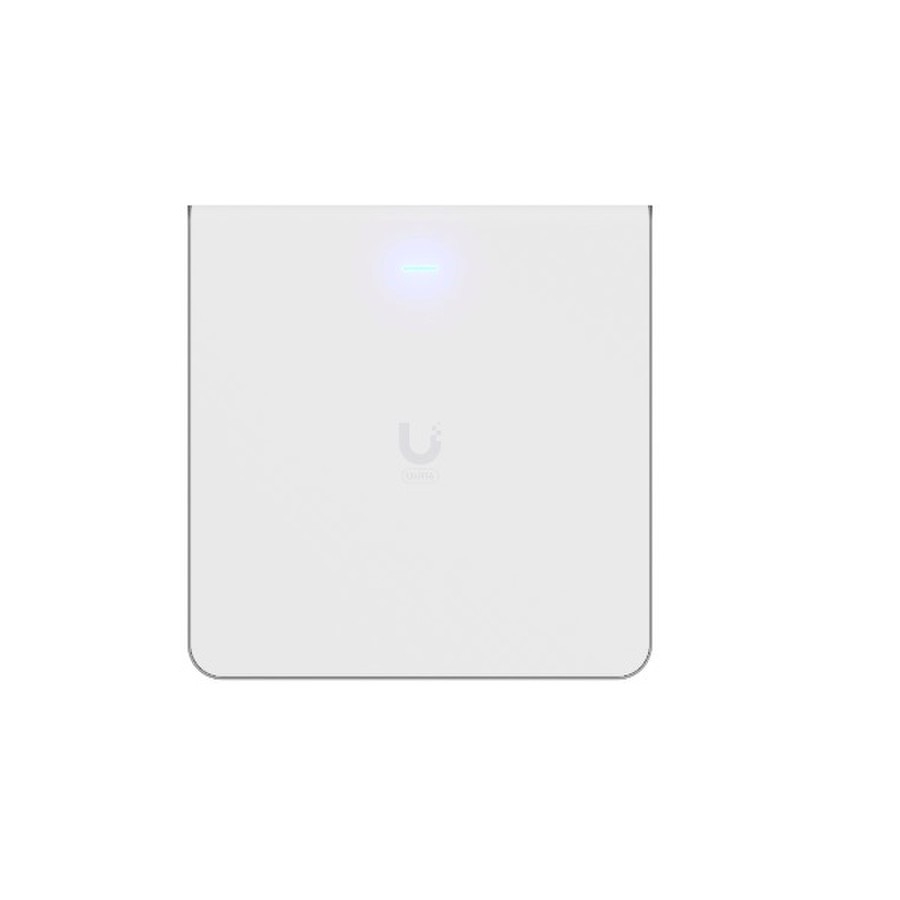

    Ubiquiti Networks U6-Enterprise-IW

    U6 Enterprise In-Wall

    Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks.

    SPECIFICATIONS

    Specifications U6-Enterprise-IW

    Dimensions 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
    Weight 884 g (1.95 lb)
    Enclosure materials Polycarbonate, aluminum
    Mount material Aluminum
    Hardware
    Networking interface (1) Data in: 2.5GbE RJ45 port (4) Data out: GbE RJ45 ports
    Management interface Ethernet
    Bluetooth
    PoE interface (1) PoE+ input (1) PoE output
    Power method

    PoE+

    PoE++ (required for PoE output)

    Power supply UniFi PoE switch
    Max. power consumption Excluding PoE output: 21W
    Max. PoE wattage per port by PSE 15.4W
    Supported voltage range 44—57V DC

    Max. TX power

    2.4 GHz

    5-7 GHz



    22 dBm

    26 dBm

    MIMO

    2.4 GHz

    5 GHz

    6 GHz



    2 x 2 (UL MU-MIMO)

    4 x 4 (DL/UL MU-MIMO)

    4 x 4 (DL/UL MU-MIMO)

    Throughput rate

    2.4 GHz

    5 GHz

    6 GHz



    573.5 Mbps

    4.8 Gbps

    4.8 Gbps

    Antenna gain

    2.4 GHz

    5 GHz

    6 GHz



    4 dBi

    5.8 dBi

    5.8 dBi

    LED White/blue
    Button Factory reset
    Operating temperature -30 to 60° C (-22 to 140° F)
    Operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Software
    WiFi standards 802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E
    Wireless security protocols WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
    BSSID 8 per radio
    VLAN 802.1Q
    Advanced QoS Per-user rate limiting
    Guest traffic isolation Supported
    Concurrent client support 600+
    Zero-wait DFS Yes* *Supported with upcoming firmware versions.
    Supported Data Rates
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
    802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    Application Requirements
    UniFi Network Version 7.2.85 and later
