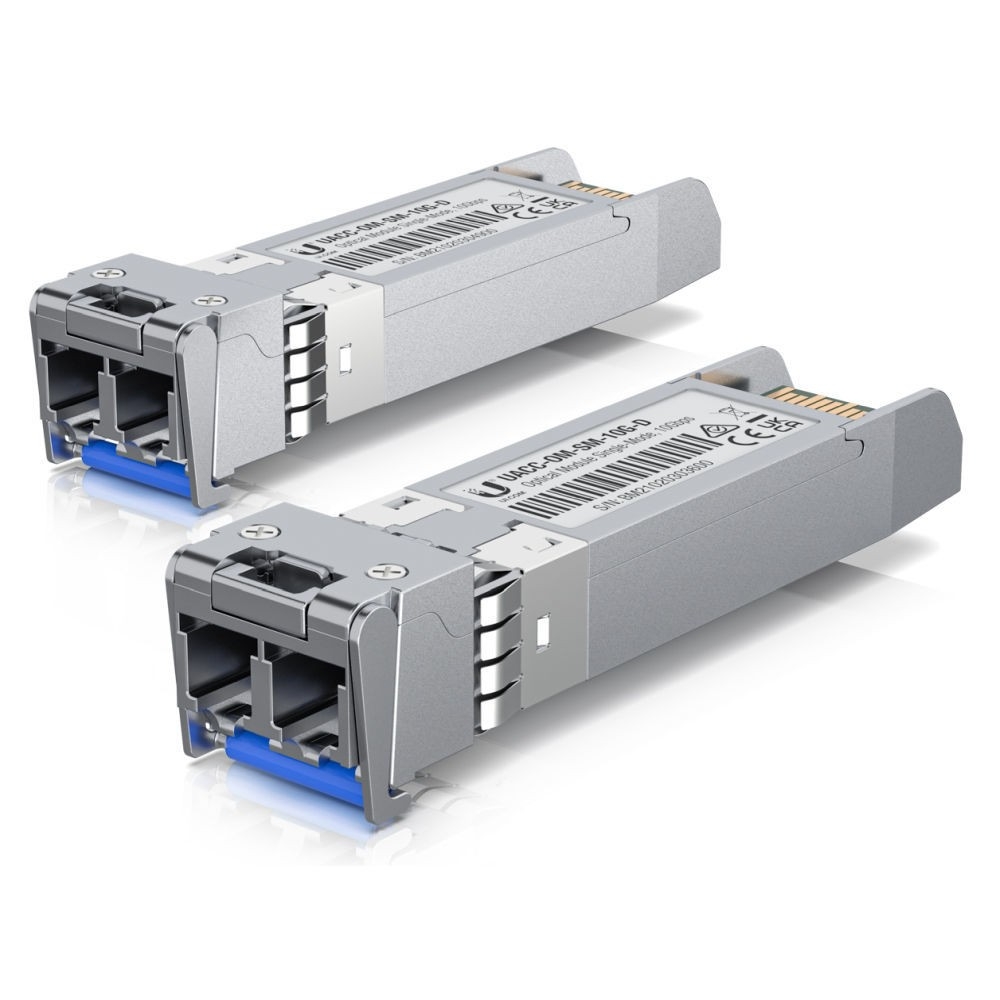

Ubiquiti 10 Gbps Bidirectional Single-Mode Optical Module
Product Highlights
Model#: UACC-OM-SM-10G-S-2
Sku: IT4857
MSRP: $185.99
In Stock
Your Price: $185.99
SKU: UACC-OM-SM-10G-S-2
10 Gbps Bidirectional Single-Mode Optical Module, Single-mode, simplex, ber transceiver module. 2-pack
The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.
Features:
- 10 Gbps throughput
- Simplex LC connector
- Supports connections up to 10 km
- Supported media: SM Fiber (Fiber cable is not included)
SPECIFICATIONS
Specifications UACC-OM-SM-10G-S-2
| Weight | .15 lbs |
| Dimensions (L x W x H) | 4" x 3" x .75" |
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | Yes |
| TX Wavelength | Blue Latch: 1270 nm Red Latch: 1330 nm *Itmustbeusedinpairs (bluelatchandredlatch) |
| RX Wavelength | Blue Latch: 1270 nm Red Latch: 1330 nm *Itmustbeusedinpairs (bluelatchandredlatch) |
| Data Rate | 10 Gbps |
| Max. Power Consumption | 1W |
| Cable Distance | 10 km |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
| Pack Options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Datasheet
