WAVE-AP-MICRO-US

Ubiquiti


Ubiquiti Networks WAVE-AP-MICRO-US Uisp wave access point micro US



Product Highlights
  • 60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio
  • 90° sector coverage
  • 5 GHz 800+ Mbps weather-resilient backup radio
  • 15 client capacity: Wave Long-Range (6 km link range), Wave Nano (4 km link range)
  • Integrated GPS & Bluetooth
  • Model#: WAVE-AP-MICRO-US

    Sku: IT4879



    MSRP: $579.99


    Out of stock

    Your Price: $579.99


    Model: WAVE-AP-MICRO-US

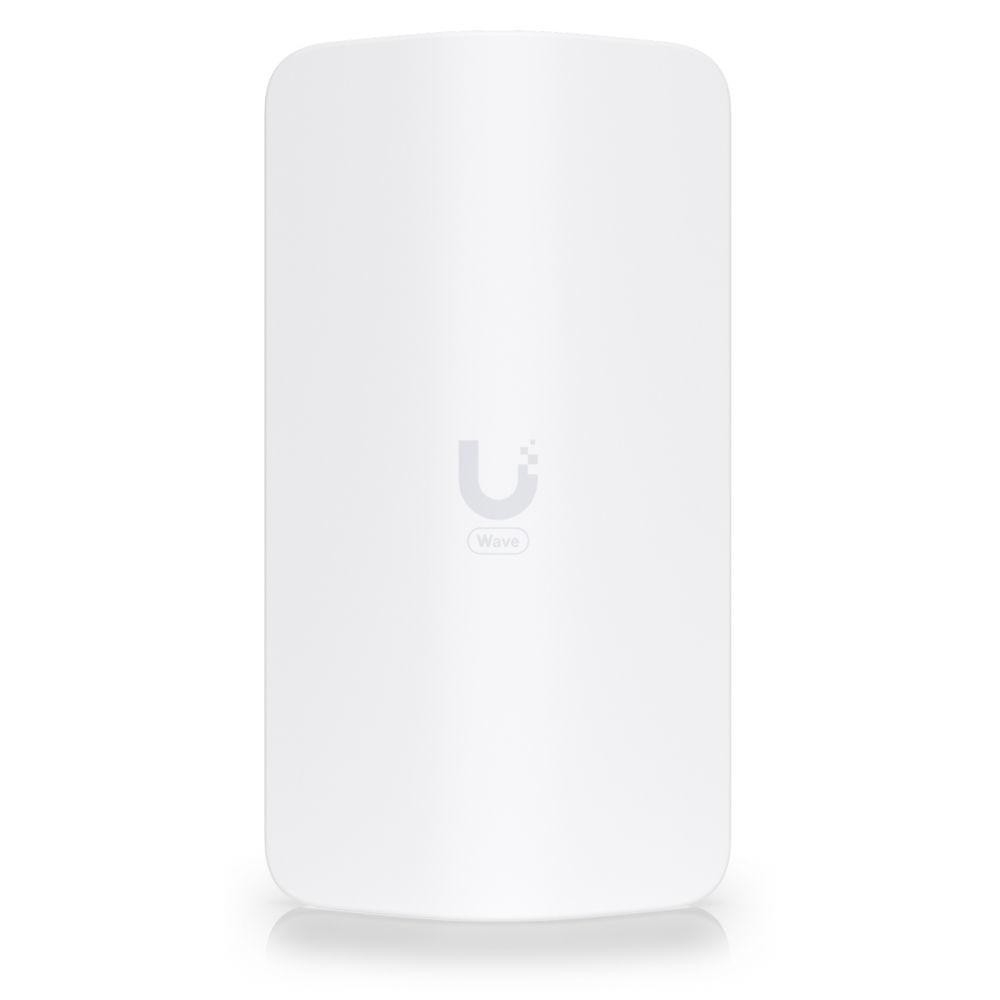

    Ubiquiti Networks Wave AP Micro

    Wide-coverage 60 GHz PtMP access point powered by Wave Technology.

    SPECIFICATIONS

    Specifications Wave-AP-Micro

    Dimensions 284 x 156 x 76 mm (11.2 x 6.1 x 3")
    Weight 1.3 kg (2.87 lb)
    Enclosure materials Aluminum alloy, UV stabilized polycarbonate
    Mount materials Stainless steel, UV stabilized polycarbonate
    Pole mount diameter 35 to 60 mm (1.4 to 2.4") on pipe outer diameter
    Wind loading 87 N at 200 km/h (20 lbf at 125 mph)
    Weatherproofing IPX6
    Hardware
    Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
    Memory DDR3L 512 MB
    Networking interface (1) 1/2.5 GbE RJ45 port
    Max. power consumption 24W
    Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
    Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Power supply 48V DC, 0.65A, 2.5 GbE PoE adapter (included)
    Supported voltage range 44–54V DC 22–27V DC
    GPS Yes
    Button Factory reset
    LEDs Power, Ethernet, GPS, Link
    Operating temperature -40 to 60° C (-40 to 140° F)
    Operating humidity 5 to 95% noncondensing
    Certifications FCC, IC, CE
    Software
    Operating mode PtMP access point
    Ubiquiti specific features Wave AI, discovery protocol
    Services UISP, ping watchdog, NTP client, SNMP
    Tools Antenna alignment, discovery utility, ping, trace route, speed test
    Network Bridge mode
    Application requirements UISP web: Version 2.2.11 and later UISP iOS™: Version 2.25.1 and later UISP Android™: Version 2.27.5 and later
    System
    Total throughput 5 Gbps (2.5 Gbps duplex)
    Supported clients count 15
    Max. range Connecting to a Wave Long-Range: up to 6 km
    Connecting to a Wave Nano: up to 4 km
    Encryption WPA2-PSK (AES)
    RF
    Operating frequency* 57–71 GHz *Depends on regulatory region.
    Channel bandwidth 2160, 1080 MHz
    Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
    Modulation 16QAM, QPSK
    Antenna gain 20 dBi
    Polarization Vertically linear
    Beamwidth Azimuth: 3 dB 90° Elevation: 3 dB 7°
    Electrical downtilt
    Back-Up RF
    WiFi standard 802.11ax (WiFi 6)
    Operating frequency* US/CA U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
    Worldwide 5150 - 5875 MHz *Depends on regulatory region.
    Channel bandwidth 20, 40, 80 MHz
    Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
    Antenna gain 13.5 dBi
    Polarization Dual-linear
    Beamwidth Azimuth: 6 dB 90° Elevation: 6 dB 25°
    Cross-pol isolation 10 dB
    Electric downtilt
    LEDs
    Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
    Ethernet Flashing blue: Ethernet traffic detected
    GPS Blue: receiving at least(4) GPS satellite signal
    Link Blue: 60 GHz link White: 5 GHz link

    Datasheet

    PDF File Ubiquiti Networks WAVE-AP-MICRO-US Uisp wave access point micro US
