USW-16-POE

Ubiquiti

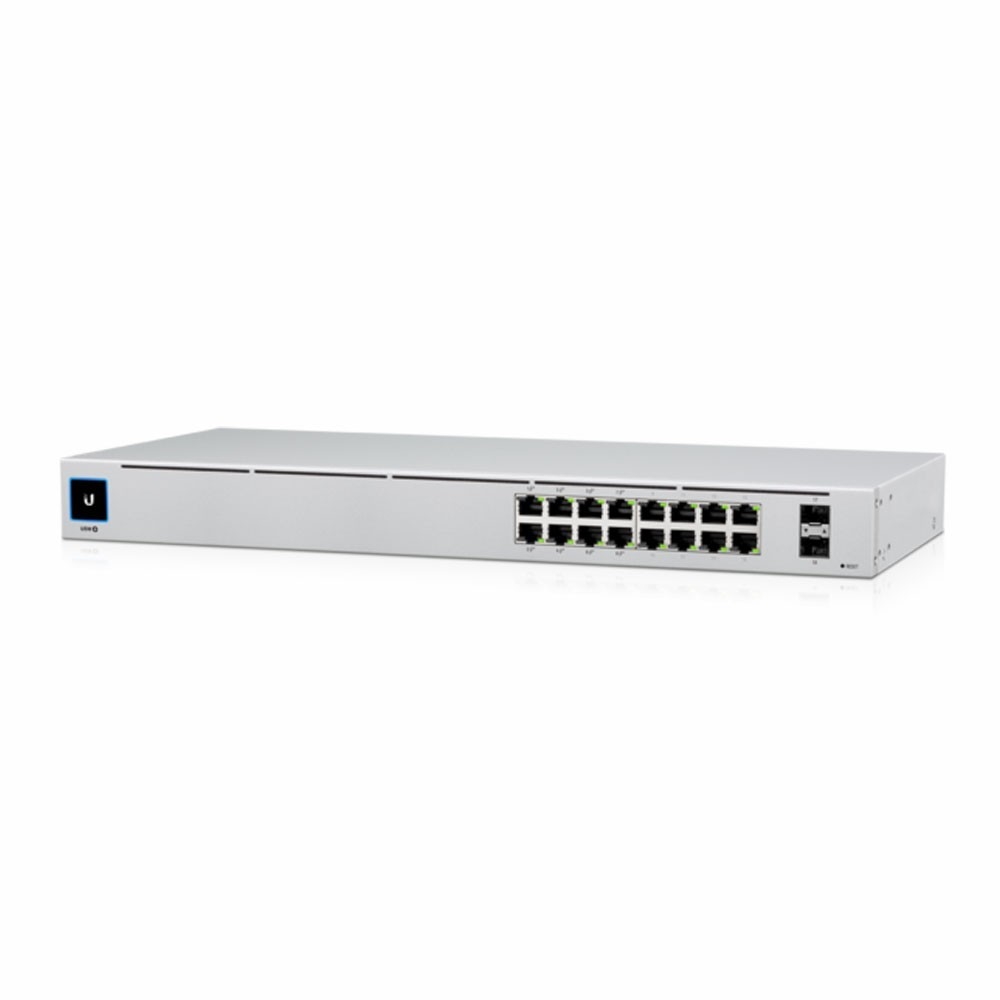

Ubiquiti Networks USW-16-POE UniFi Switch 16 PoE


Model#: USW-16-POE

Sku: IT4880

Out of stock

Your Price: N/A


MODEL: USW-16-POE

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

• (8) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports
• (2) 1G SFP ports


Model: USW-16-POE

  • Ports: 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
  •           8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
  •           2 x 10/100/1000 Mb/s Gigabit SFP (Uplink)
  • Supported Protocols: Auto-MDIX/MDI / Port Mirroring
  • Transmission Method: Store-and-Forward
  • Supported IEEE Standards: 802.3af, 802.3at
  • Forwarding Rate: 26.78 Mpps
  • Switching Bandwidth: 18 Gb/s (Non-Blocking)
  • OS Compatibility: macOS 10 or Later / Windows 7 or Later / Linux
  • Power Draw: 18.00 W (Max)
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • PoE Power Budget: 42 W
  • PoE per Port: 32 W
  • Power Supply Type: Internal
  • Operating Temperature: 23 to 104°F / -5 to 40°C
  • Operating Humidity: 10 to 90%
  • Certifications: CE, FCC, IC, as per Manufacturer

Datasheet

PDF File Ubiquiti Networks USW-16-POE UniFi Switch 16 PoE
