U7-PRO-US

Ubiquiti

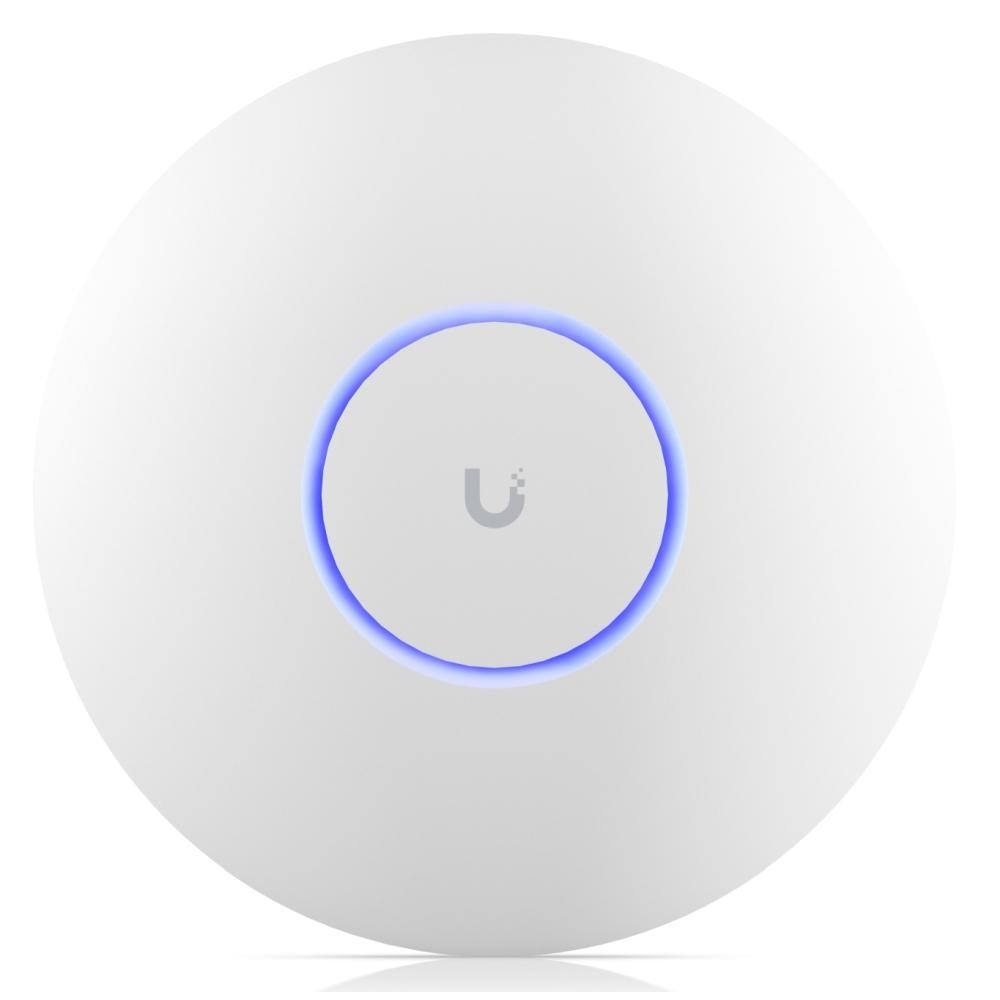

Ubiquiti Networks U7-PRO-US UNIFI Access points 7 PRO US - POE adapter not included


Product Highlights
  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+

    • Model#: U7-PRO-US

    Sku: IT4894



    MSRP: $228.00


    Out of stock

    Your Price: $228.00


    Mechanical
    Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
    Weight 680 g (1.5 lb)
    Enclosure material Polycarbonate, metal
    Mount material Stainless steel (SUS304), galvanized steel (SGCC)
    Hardware
    Networking interface (1) 1/2.5 GbE RJ45 port
    Management interface Ethernet
    Power method PoE+
    Power supply UniFi PoE switch
    Supported voltage range 44—57V DC
    Max. power consumption 21W
    Max. TX power
    2.4 GHz
    5 GHz
    6 GHz
    22 dBm
    26 dBm
    23 dBm
    MIMO
    2.4 GHz
    5 GHz
    6 GHz
    2 x 2
    2 x 2
    2 x 2
    Throughput rate
    2.4 GHz
    5 GHz
    6 GHz
    688 Mbps
    2882 Mbps
    5765 Mbps
    Antenna gain
    2.4 GHz
    5 GHz
    6 GHz
    4 dBi
    6 dBi
    5.8 dBi
    LEDs White/blue
    Button Factory reset
    Mounting Wall/ceiling (Included)
    Operating temperature -30 to 60° C (-22 to 140° F)
    Operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Software
    WiFi standards 802.11a/b/g/n/ac/ax/be
    Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    BSSID 8 per radio
    VLAN 802.1Q
    Advanced QoS Per-user rate limiting
    Guest traffic isolation Supported
    Concurrent clients 300+
    Supported Data Rates
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    Application Requirements
    UniFi Network Version 8.0.26 and later
    UniFi OS Version 3.2 and later
