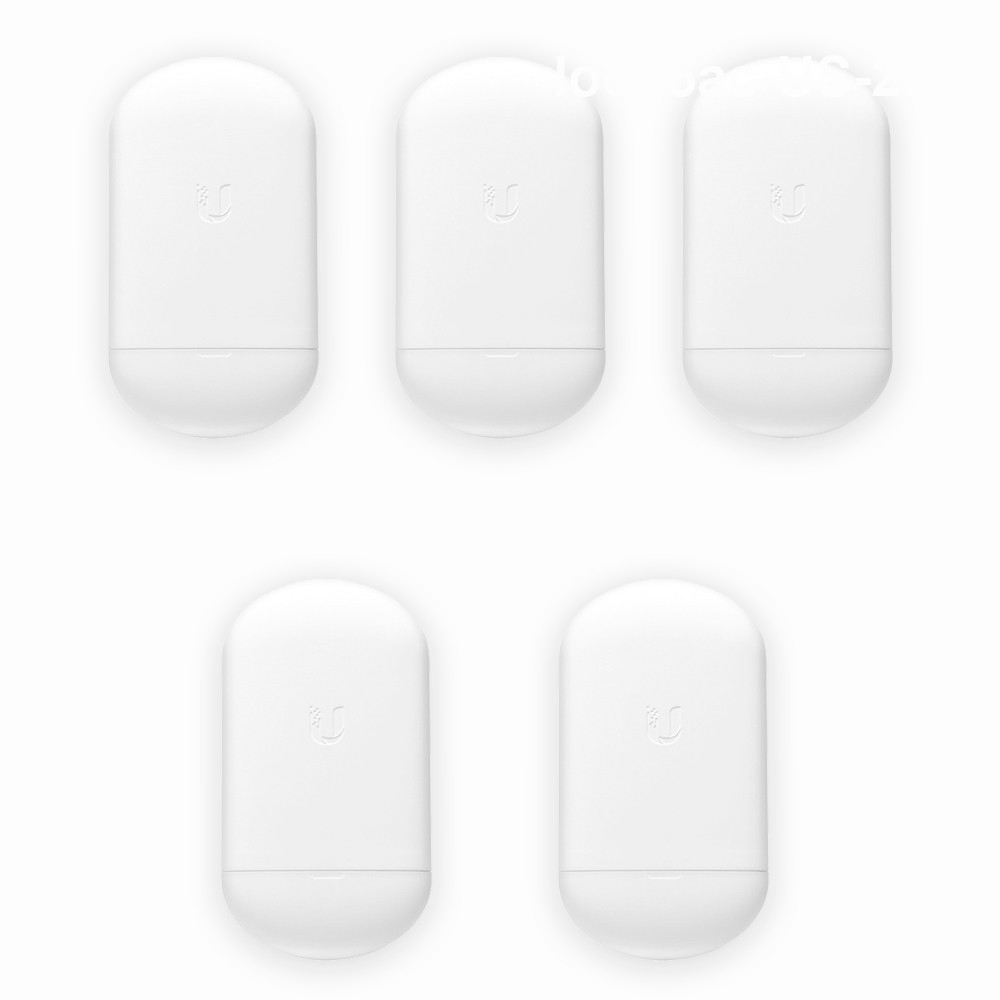

Ubiquiti 5-pack NanoStation AC loco Loco5ac-5 * INTERNATIONAL VERSION *
Model#: Loco5ac-5
Sku: IT4902
MSRP: $399.00
In Stock
Your Price: $299.99
Model: Loco5ac-5
New and updated part number for: NS-5ACL-5
International Version, 5-Pack, PoE Injector Not Included
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Throughput
- Up to 450+ Mbps Real TCP/IP Throughput
Operating Frequency (MHz)
- 5150 - 5250, 5725 - 5850
Management Radio (MHz)
- 2412 - 2462
Power Supply
- 24V, 0.5A Gigabit PoE Supply*
Max. Power Consumption
- 8.5W
Power Method
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain
- 13 dBi
Networking Interface
- 10/100/1000 Mbps Ethernet Port
Channel Bandwidths
- 10/20/30/40/50/60/80 MHz
Processor Specs
- Atheros MIPS 74Kc, 560 MHz
Memory
- 64 MB DDR2
Cross-pol Isolation
- 20 dB Minimum
Max. VSWR
- 1.8:1
Beamwidth
- 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization
- Dual Linear
Enclosure
- Outdoor UV Stabilized Plastic
LEDs
- (1) Power
Mounting
- Pole-Mount (Kit Included)
Operating Temperature
- -40 to 70° C (-40 to 158° F)
Operating Humidity
- 5 to 95% Non-condensing
