Alta Labs
Alta Labs AP6 WIFi 6 Access Point, POE+, 2x2
Product Highlights
Model#: AP6-AL
Sku: IT4927
MSRP: $139.00
In Stock
Your Price: $139.00
MODEL: AP6

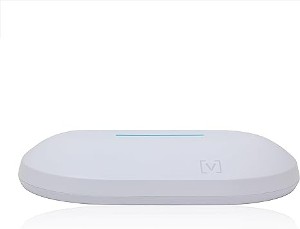

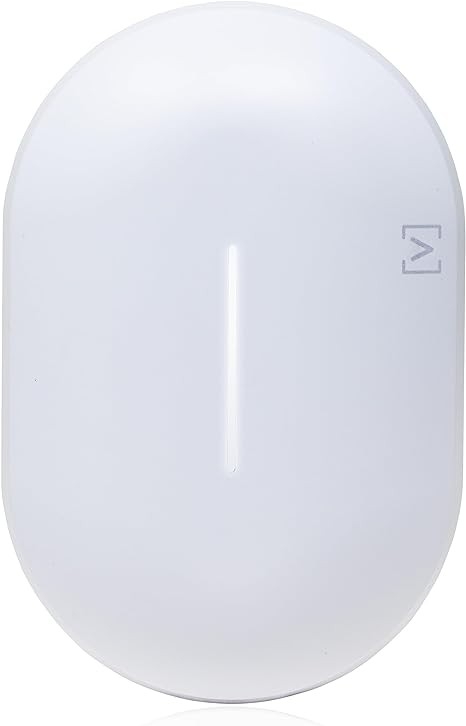

Alta Labs AP6 WIFi 6 Access Point, POE+, 2x2
Alta Labs creates revolutionary networking technology that is driven by our proprietary software and hardware designs.
Built with Qualcomm
Provides faster, more reliable wireless connections for modern devices.
Mobile app
Monitor and manage your networks from the convenience of your mobile device.
Seamless Roaming
• Fully Automatic, 802.11k/v • With Optional 11r

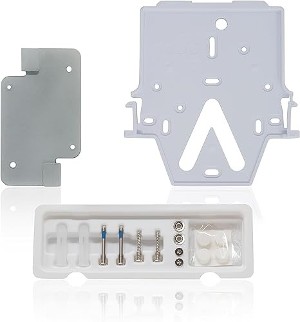

Versatile Mount
• Quick Mount™ Technology for Simple Mounting • Ceiling or Wall-Mountable • Compatible with Drop-Ceilings
ELEVATED MANAGEMENT PLATFORM
Alta Labs cloud management platform offers seamless monitoring and configuration capabilities from any device, including desktops, laptops, and mobile devices. Our lightweight cloud technology ensures that our standard feature set remains free now and into the foreseeable future, with premium features also available. Single site and multi-site management has never been easier.
Specifications AP6
| WIFI 6 | Yes |
| BLUETOOTH FOR EASY ADOPTION | Yes |
| CONTENT FILTERING | Yes |
| MAX WIFI THROUGHPUT | 2.4 Gbps |
| POWER | PoE+ |
| 4096-QAM | No |
| Dimensions | 190mm (7.5” ) x 125mm (4.9”) 32mm (1.25”) |
| Weight | 0.4 kg (0.9 lbs) |
| Enclosure Material | Top Cover: Polycarbonate Bottom Cover: Milled Aluminum |
| Mount Material | Ceiling/Wall: Polycarbonate Drop Ceiling: Steel |
| Weatherproo?ng | N/A |
| HARDWARE | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ enabled network switch 48V, 0.5A PoE adapter (optional) |
| Supported Voltage Range | 42.5 - 57V DC |
| Maximum Power Consumption | 20W |
| Maximum Transmit Power | 2.4 GHz: 23 dBm @2NSS 5 GHz: 23 dBm @2NSS |
| MIMO | 2.4 GHz: 2 x 2 5 GHz: 2 x 2 |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps 5 GHz: Up to 2.4 Gbps |
| Antenna Gain | 2.4 GHz: Up to 4.0 dBi 5 GHz: Up to 4.1 dBi |
| Mounting | Wall, ceiling, drop-ceiling, table top |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certi?cations | CE, FCC, IC |
| WiFi Standards | 801.11a/b/g/n/ac/ax WiFi4/WiFi5/WiFi6 |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traf?c Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Painless Hotspot Setup | Yes |
| Scale From Home to SMB to Stadium | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| SUPPORTED DATA RATES | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (Up to MCS 15) |
| 802.11ac | 6.5 Mbps to 1.9 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps 5 GHz: 6.5 Mbps to 2.4 Gbps (Up to MCS 11) |
Datasheet
