UA-G2-Pro-Black
UA-G2-Pro-Black picture 3

Ubiquiti

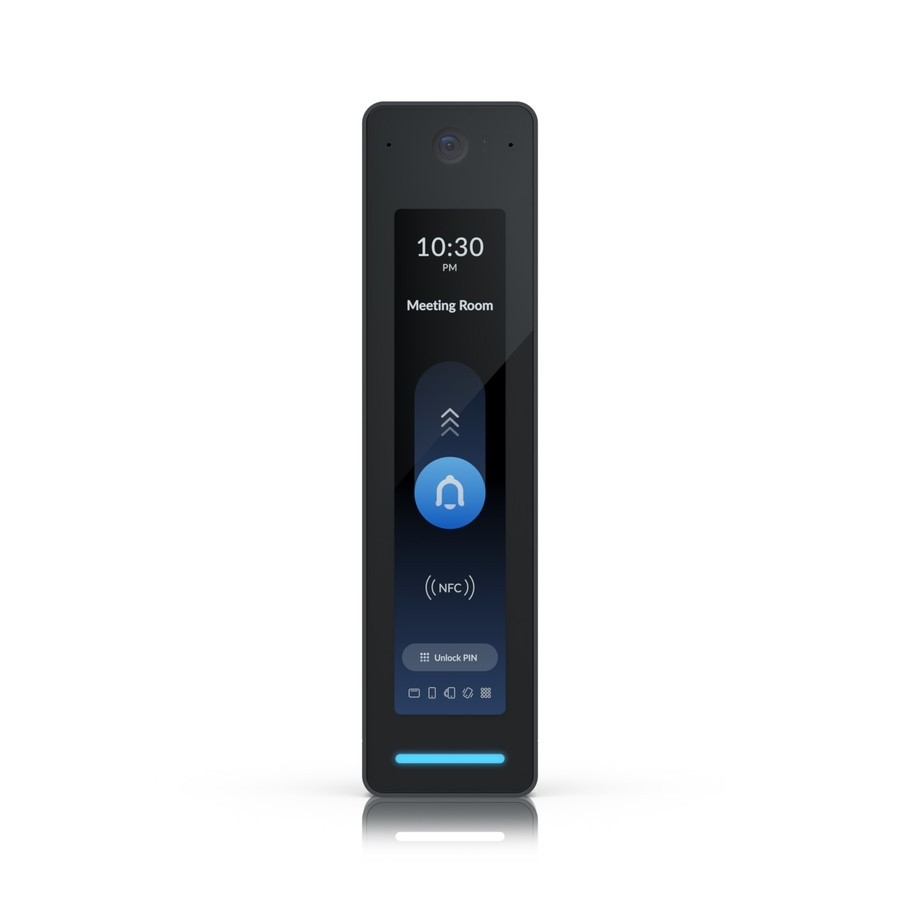

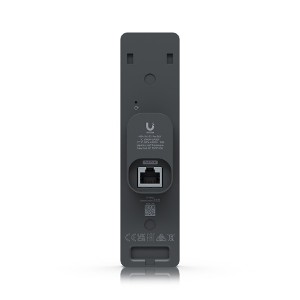

Ubiquiti UniFi G2 Access Reader Pro - Black


Product Highlights
  • Unlock using an NFC card or UniFi Identity mobile app.
  • Doorbell for unlock with video of visitor and two-way intercom.
  • Video works at ADA-compliant mounting height.
  • PIN unlocking on the screen.
  • Connects to UniFi Access Hub using PoE.

    • Model#: UA-G2-Pro-Black

    Sku: IT4962



    MSRP: $419.99


    Out of stock

    Your Price: $419.99


    MODEL: UA-G2-Pro-Black

    UniFi G2 Access Reader Pro - Black

    Second-generation NFC card reader and intercom.



    Features:

    • Unlock using an NFC card or UniFi Identity mobile app.
    • Doorbell for unlock with video of visitor and two-way intercom.
    • Video works at ADA-compliant mounting height.
    • PIN unlocking on the screen.
    • Connects to UniFi Access Hub using PoE.
    • IP55 rain resistance (-10 to 45° C).

    Specifications UA-G2-PRO-BLACK

    Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
    Weight 136 g (4.8 oz)
    Enclosure material Polycarbonate, glass
    Mount material Aluminum alloy
    Mounting Wall, gang box
    Weatherproofing IP55
    Hardware
    Networking interface (1) GbE RJ45 port
    Connectivity BLE 4.2 NFC
    Power method PoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Supported voltage range 48V DC
    Max. power consumption 6W
    ESD/EMP protection Air: ±15kV, contact: ±8kV
    Sensor Proximity sensor
    Camera 4000 x 3000, 12 MP, 30 FPS
    Microphone Yes
    Speaker (1) 4 ohm, 1.5W
    LEDs R/G/B/W Flash
    Button (1) Factory-reset
    NFC frequency 13.56 MHz
    NFC read range < 30 mm
    NFC standards ISO 14443A, 14443B, 15693
    NFC technology NFC Tag 1,2,3,4,5
    MIFARE Classic
    MIFAREPlus
    MIFARE Ultralight
    MIFARE DESFire
    Operating environment Outdoor use
    Operating temperature -10 to 45° C (14 to 113° F)
    Operating humidity 5 to 90% noncondensing
    Software information The software version of a product can be checked at https://unifi.ui.com
    UL 294 level Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
    CAN/ULC-60839-11-1 Grade Grade assignment: I
    Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    Document number, and issue date and/or revision level UA-G2-Pro/UA-G2-Pro-Black, V02 LED
    LED
    System Steady blue: Adopted/device is ready
    Steady white: Pending adoption
    Blinking white/blue: Upgrading firmware
    Strobing red: Emergency lockdown
    Software
    Management application UniFi Access: Version 1.5.9 and later

    Datasheet

    PDF File Ubiquiti UniFi G2 Access Reader Pro - Black
