Ubiquiti UCG-ULTRA Unifi Cloud Gateway Ultra
Model#: UCG-ULTRA
Sku: IT4980
Out of stock
Your Price: N/A
MODEL: UCG-ULTRA

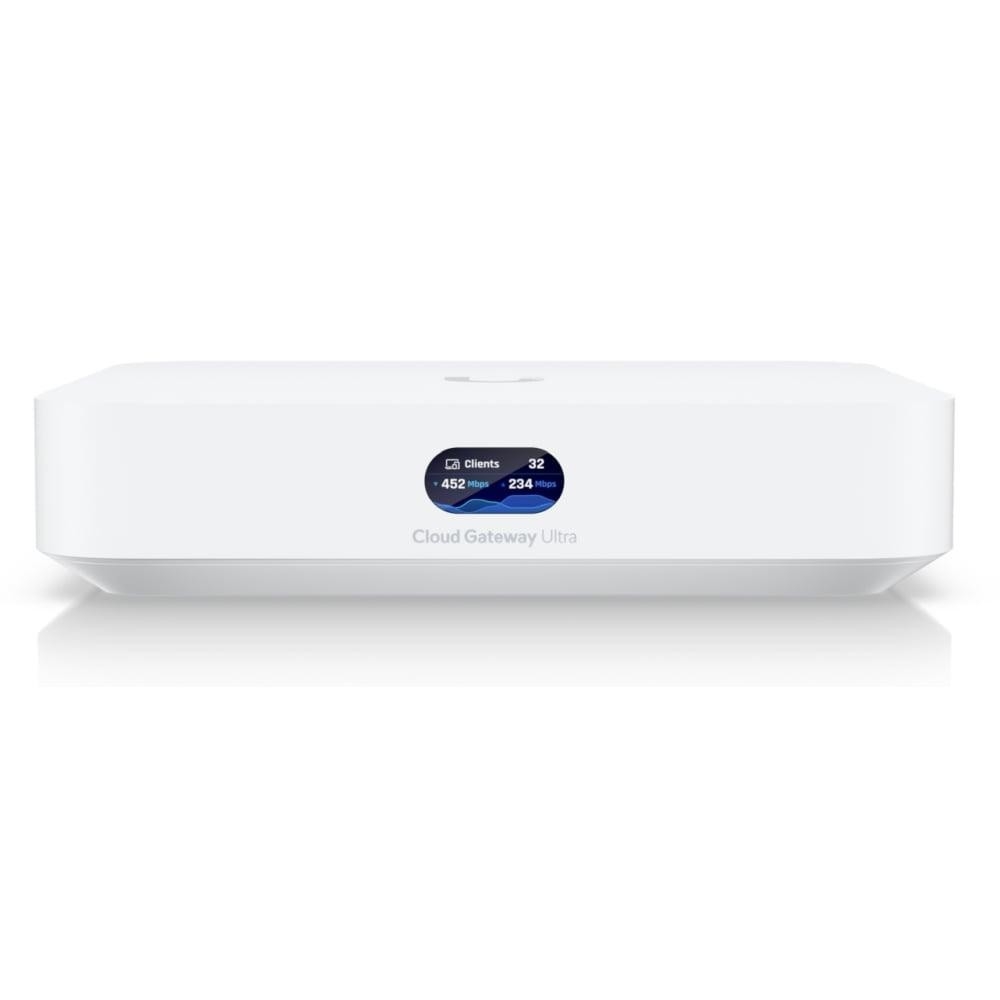

Unifi Cloud Gateway Ultra
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
This versatile device seamlessly integrates multiple WAN connections, optimising traffic flow with advanced routing features while ensuring uninterrupted connectivity through failover protection.
It is compact form factor conceals a robust suite of security measures, including firewall capabilities and intrusion detection systems, fortifying your network against evolving threats. With the Multi-WAN UniFi Cloud Gateway, you can expect uncompromising performance and comprehensive security in a streamlined package, perfect for businesses of all sizes.
Features:
- Runs UniFi Network for full-stack network management.
- Manages 30+ UniFi Network devices and 300+ clients.
- 1 Gbps routing with IDS/IPS.
- Multi-WAN load balancing.
- 0.96" LCM status display.
- USB-C powered (adapter included).
Specifications UCG-Ultra
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Management interface | Ethernet Bluetooth |
| Networking interface |
LAN: WAN: |
| IDS/IPS throughput | 1 Gbps |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 6.2W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later |
Datasheet
