Ubiquiti Networks UK-Ultra-US Swiss Army Knife Ultra US
Product Highlights
Model#: UK-ULTRA-US
Sku: IT4986
MSRP: $99.99
In Stock
Your Price: $99.99
SKU: UK-ULTRA-US
Swiss Army Knife Ultra
Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Features:
- WiFi 5
- 4 spatial streams
- 115 m² (1,250 ft²) coverage with internal antenna
- 200+ connected devices
- Powered using PoE
- GbE uplink
- Versatile wall, ceiling, and pole mounting

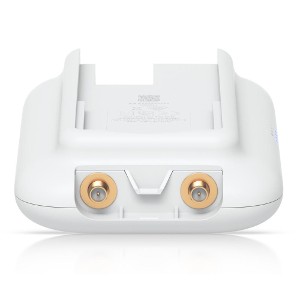

- (2) RP-SMA connectors for optional external antennas
- Weatherproof (outdoor exposed)
Specifications UK-Ultra
| Dimensions | 137 x 84 x 34 mm (5.4" x 3.3" x 1.3") |
| Weight | 173 g (6.1 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1~2" on pipe outer diameter |
| Wind survivability | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8W |
|
Max. TX power 2.4 GHz |
20 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
300 Mbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4.7 dBi |
| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
Datasheet
