Ubiquiti Networks compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network
Product Highlights
Model#: UX-US
Sku: IT5013
MSRP: $149.99
In Stock
Your Price: $149.99
MODEL: UX-US
Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
Built-in WiFi 6 AP
140 m² (1,500 ft²) single-unit coverage
50+ connected WiFi devices*
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network

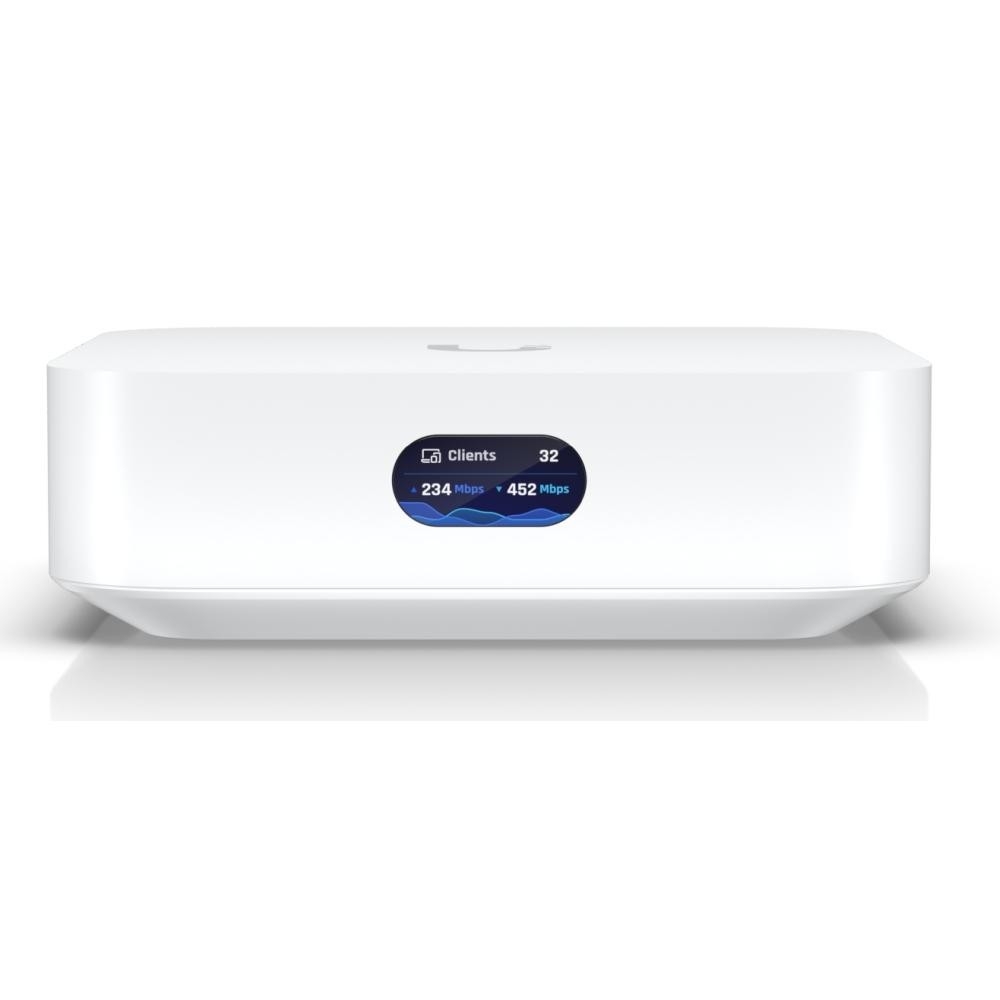

0.96" LCM status display
Manages up to four additional UniFi Network devices when operated as a gateway
Managed with UniFi Network 8.0.7 and later
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).
| Mechanical | |
|---|---|
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight | 302 g (10.7 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port |
| Power method | USB type C (5V DC/3A) |
| Max. power consumption | 10W |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
4 dBi 5.15 dBi |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | Console mode: 3 per band Standard AP: 8 per band |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 50+* *Performance may be degraded with advanced gateway features (e.g., Traffic Identification). |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 8.0.7 and later |
