U7-PRO
U7-PRO picture 3

Ubiquiti

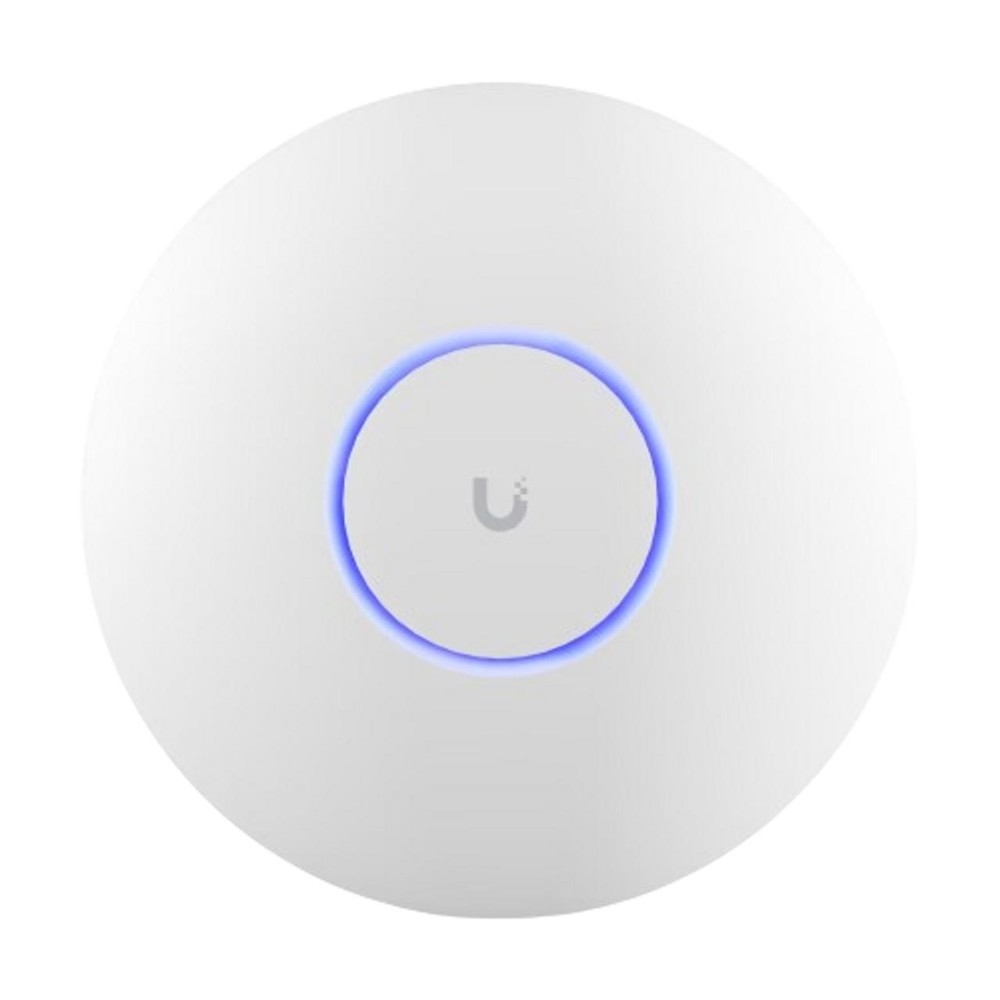

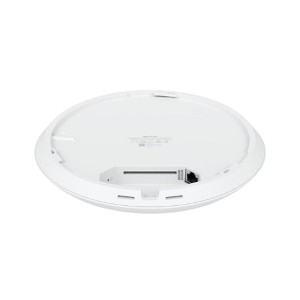

Ubiquiti U7-PRO Unifi Indoor WiFi 7 Access Point (International Version)


Model#: U7-PRO

Sku: IT5031



MSRP: $209.00


Out of stock

Your Price: $209.00


U7-Pro - The Perfect Home for your ONU

INTERNATIONAL VERSION. FOR EXPORT ONLY



Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Multi-Link Operation (MLO) capability to be provided via software update in February 2024.

Features

  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink

Dimensions

  • Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

  • 680 g (1.5 lb)
  • Mechanical
    • Enclosure materials: Polycarbonate, metal
    • Mount material: Mounting bracket: stainless steel (SUS304)
    • Backing plate: galvanized steel (SGCC)
  • Hardware
    • Networking interface: (1) 1/2.5 GbE RJ45 port
    • Management interface: Ethernet:
    • Power method: PoE+
    • Power supply: UniFi PoE switch
    • Supported voltage range: 44—57V DC
    • Max. power consumption: 21W
    • Max. TX power
      • 2.4 GHz: 22 dBm
      • 5 GHz: 26 dBm
      • 6 GHz: 23 dBm
    • MIMO
      • 2.4 GHz: 2 x 2
      • 5 GHz: 2 x 2
      • 6 GHz: 2 x 2
    • Throughput rate
      • 2.4 GHz: 688 Mbps
      • 5 GHz: 2882 Mbps
      • 6 GHz: 5765 Mbps
    • Antenna gain
      • 2.4 GHz: 4 dBi
      • 5 GHz: 6 dBi
      • 6 GHz: 5.8 dBi
    • LEDs: White/blue
    • Button: Factory reset
    • Mounting: Wall/ceiling (Included)
    • Operating temperature: -30 to 60° C (-22 to 140° F)
    • Operating humidity: 5 to 95% noncondensing
    • Certifications: CE, FCC, IC
  • Software
    • WiFi standards: 802.11a/b/g/n/ac/ax/be
    • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    • BSSID: 8 per radio
    • VLAN: 802.1Q
    • Advanced QoS: Per-user rate limiting
    • Guest traffic isolation: Supported
    • Concurrent clients: 300+
  • Supported Data Rates
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
  • Application Requirements
    • UniFi Network: Version 8.0.26 and later
    • UniFi OS: Version 3.2 and later
