MODEL: UVC-G5-DOME-ULTRA

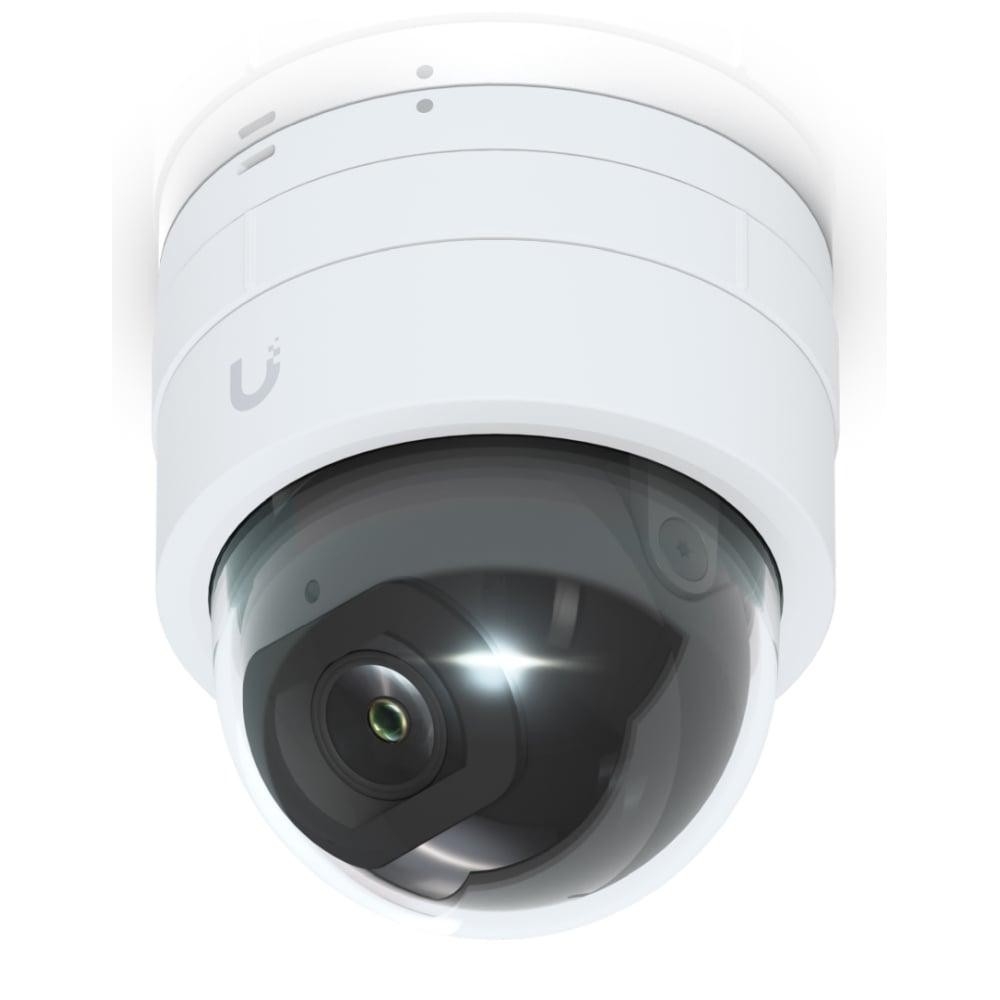

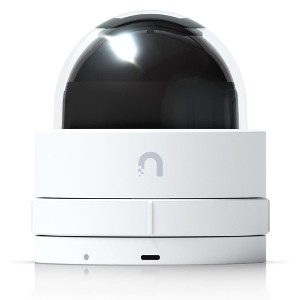

Camera G5 Dome Ultra
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
Mechanical | |
Dimensions | Ø63.6 x 68.2 mm (Ø2.5 x 2.7") |
Weight | 175 g (0.38 lbs.) |
Enclosure material | Aluminum alloy, polycarbonate |
Mount material | Stainless steel |
Resistance | IK06 |
Optics | |
Sensor | 1/2.4" CMOS |
Lens | Fixed focal length |
View angle | H: 102.4°, V: 54.9°, D: 120.6° |
Night mode | Built-in IR LED illumination and IR cut filter |
IR distance | 20 m (65 ft) |
Video | |
Resolution | 4MP 2688 x 1512 (16:9) |
Max. frame rate | 30 FPS |
Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
System | |
Processor | Dual-core Arm® Cortex®-A7 based chip |
Networking interface | 10/100 MbE RJ45 port |
Max. power consumption | 4.2W |
Power method | PoE |
Supported voltage range | 37–57V DC |
Button | Factory reset |
Mounting | Surface mount |
Ambient operating temperature | -20 to 40º C (-4 to 104º F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | FCC, IC, CE |
Software | |
Web application | UniFi Protect |
Mobile app | UniFi Protect iOS™ and Android™ |
